Name: EXHAUST SYSTEM
Rating: 4.6 (1 reviews)

EXHAUST SYSTEM of Maserati Maserati 4200 Coupe (2002-2004) CC

View All

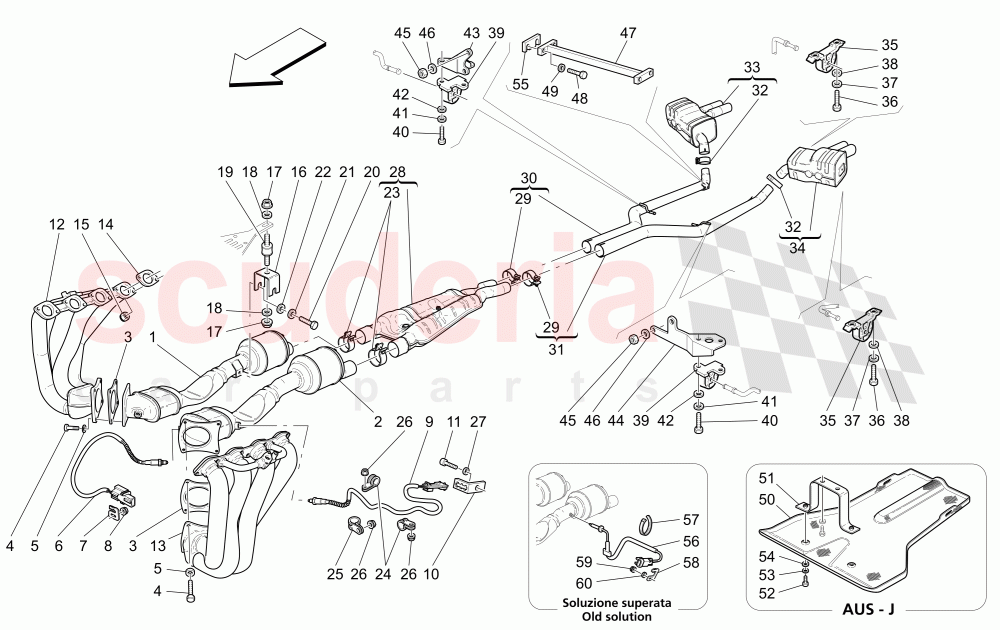

Maserati 4200 Coupe (2002-2004) CC - EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	214443	CPL RH CATALYTIC CONVERTER	$4,035.84	To Order
	205420	CPL RH CATALYTIC CONVERTER	$4,022.45	To Order

Photo	Part No	Description	Price (each)	Stock
	214444	CPL LH CATALYTIC CONVERTER	$4,035.84	To Order
	205421	CPL LH CATALYTIC CONVERTER	$4,022.45	To Order

Photo	Part No	Description	Price (each)	Stock
	184798	GASKET EXHAUST MANIFOLD	$31.53	To Order

Photo	Part No	Description	Price (each)	Stock
	190213	SCREW	$4.50	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHERD.8.4-16X1.4	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	182837	Front Lamda Sensor	$316.81	To Order

Photo	Part No	Description	Price (each)	Stock
	175856	CONNECTOR FIXING BRACKET	$5.22	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	191412	Rear Lamda Sensor	$413.90	To Order

Photo	Part No	Description	Price (each)	Stock
	185408	CONNECTOR SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	183795	RH EXHAUST MANIFOLD	$4,129.90	To Order

Photo	Part No	Description	Price (each)	Stock
	183796	LH EXHAUST MANIFOLD	$4,129.90	To Order

Photo	Part No	Description	Price (each)	Stock
	182868	HEADS AND EXHAUST MANIFOLD GASKET	$5.23	To Order

Photo	Part No	Description	Price (each)	Stock
	138392	Exhaust Brass Locknut M8 x 1.25	$3.93	To Order

Photo	Part No	Description	Price (each)	Stock
	187827	BRACKET FOR CATALYTIC CONVERTERS FIXING	$20.86	To Order

Photo	Part No	Description	Price (each)	Stock
	14048215	NUT	$6.49	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	184333	PAD	$23.78	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHERD.8.4-16X1.4	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	185307	Exhaust Clamp D.60.3	$36.92	To Order

Photo	Part No	Description	Price (each)	Stock
	67190200	BRACKET WITH SHEATH	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$9.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	187826	CENTRAL SILENCER	$2,830.64	To Order

Photo	Part No	Description	Price (each)	Stock
	185307	Exhaust Clamp D.60.3	$36.92	To Order

Photo	Part No	Description	Price (each)	Stock
	187823	RH EXHAUST EXTENSION PIPE	$1,196.47	To Order

Photo	Part No	Description	Price (each)	Stock
	187824	LH EXHAUST EXTENSION PIPE	$1,196.47	To Order

Photo	Part No	Description	Price (each)	Stock
	185307	Exhaust Clamp D.60.3	$36.92	To Order

Photo	Part No	Description	Price (each)	Stock
	184815	REAR RH MUFFLER	$3,142.05	To Order

Photo	Part No	Description	Price (each)	Stock
	184816	REAR LH MUFFLER	$3,142.05	To Order

Photo	Part No	Description	Price (each)	Stock
	184814	SUPPORT	$62.63	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREWM8X50	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHERD. 8,40-15X 0,8	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	199731	VIBRATION-DAMPING MOUNT	$81.72	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREWM8X50	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHERD. 8,40-15X 0,8	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	187775	RH SUPPORT	$21.51	To Order

Photo	Part No	Description	Price (each)	Stock
	187774	LH SUPPORT	$30.41	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	187836	SPACER	$31.00	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW M8 X 14	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHERD. 8,40-15X 0,8	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	190270	UNDER EXHAUST SHIELD	$384.44	To Order

Photo	Part No	Description	Price (each)	Stock
	190271	BRACKET	$57.21	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHERD.6.15-11X1	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	193098	SPACER BAR THICKNESS	$4.22	To Order

Photo	Part No	Description	Price (each)	Stock
	194744	THERMOCOUPLE	$284.78	To Order

Photo	Part No	Description	Price (each)	Stock
	312020382	CLAMP	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	$5.22	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER 6.15-15 X 1	$1.62	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	214443	CPL RH CATALYTIC CONVERTER	214443 CPL RH CATALYTIC CONVERTER Not for cars with thermocouple (Pos. 56)- -Valid till stock exhaustion	$4,035.84	1
1	205420	CPL RH CATALYTIC CONVERTER	205420 CPL RH CATALYTIC CONVERTER Valid for cars with thermocouple (Pos. 56)	$4,022.45	1
2	214444	CPL LH CATALYTIC CONVERTER	214444 CPL LH CATALYTIC CONVERTER Not for cars with thermocouple (Pos. 56)- -Valid till stock exhaustion	$4,035.84	1
2	205421	CPL LH CATALYTIC CONVERTER	205421 CPL LH CATALYTIC CONVERTER Valid for cars with thermocouple (Pos. 56)	$4,022.45	1
3	184798	GASKET EXHAUST MANIFOLD	184798 GASKET EXHAUST MANIFOLD Supplied also in the cylinder heads gasket revision kit (cod. 980020001)	$31.53	2
4	190213	SCREW	190213 SCREW	$4.50	8
5	11193874	WASHERD.8.4-16X1.4	11193874 WASHERD.8.4-16X1.4 D.8.4-16X1.4	$1.62	8
6	182837	Front Lamda Sensor	182837 Front Lamda Sensor	$316.81	2
7	175856	CONNECTOR FIXING BRACKET	175856 CONNECTOR FIXING BRACKET	$5.22	2
8	14039614	NUT	14039614 NUT	$1.54	2
9	191412	Rear Lamda Sensor	191412 Rear Lamda Sensor	$413.90	2
10	185408	CONNECTOR SUPPORT BRACKET	185408 CONNECTOR SUPPORT BRACKET	-	2	Enquire
11	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	$3.53	2
12	183795	RH EXHAUST MANIFOLD	183795 RH EXHAUST MANIFOLD	$4,129.90	1
13	183796	LH EXHAUST MANIFOLD	183796 LH EXHAUST MANIFOLD	$4,129.90	1
14	182868	HEADS AND EXHAUST MANIFOLD GASKET	182868 HEADS AND EXHAUST MANIFOLD GASKET Supplied also in the cylinder heads gasket revision kit (cod. 980020001)	$5.23	8
15	138392	Exhaust Brass Locknut M8 x 1.25	138392 Exhaust Brass Locknut M8 x 1.25	$3.93	16
16	187827	BRACKET FOR CATALYTIC CONVERTERS FIXING	187827 BRACKET FOR CATALYTIC CONVERTERS FIXING	$20.86	1
17	14048215	NUT	14048215 NUT	$6.49	2
18	12625224	WASHER	12625224 WASHER	$1.97	2
19	184333	PAD	184333 PAD	$23.78	1
20	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18	$2.05	2
21	11193874	WASHERD.8.4-16X1.4	11193874 WASHERD.8.4-16X1.4 D.8.4-16X1.4	$1.62	2
22	12625224	WASHER	12625224 WASHER	$1.97	2
23	185307	Exhaust Clamp D.60.3	185307 Exhaust Clamp D.60.3	$36.92	2
24	67190200	BRACKET WITH SHEATH	67190200 BRACKET WITH SHEATH	$3.53	6
25	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	$9.02	2
26	14039614	NUT	14039614 NUT	$1.54	8
27	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	2
28	187826	CENTRAL SILENCER	187826 CENTRAL SILENCER	$2,830.64 MSRP: ~~2,943.91~~ (3.8% off)	1
29	185307	Exhaust Clamp D.60.3	185307 Exhaust Clamp D.60.3	$36.92	2
30	187823	RH EXHAUST EXTENSION PIPE	187823 RH EXHAUST EXTENSION PIPE	$1,196.47	1
31	187824	LH EXHAUST EXTENSION PIPE	187824 LH EXHAUST EXTENSION PIPE	$1,196.47	1
32	185307	Exhaust Clamp D.60.3	185307 Exhaust Clamp D.60.3	$36.92	2
33	184815	REAR RH MUFFLER	184815 REAR RH MUFFLER	$3,142.05	1
34	184816	REAR LH MUFFLER	184816 REAR LH MUFFLER	$3,142.05	1
35	184814	SUPPORT	184814 SUPPORT	$62.63 MSRP: ~~64.02~~ (2.2% off)	4
36	14306924	SCREWM8X50	14306924 SCREWM8X50	$2.83	8
37	12601374	WASHERD. 8,40-15X 0,8	12601374 WASHERD. 8,40-15X 0,8 D. 8,40-15X 0,8	$1.62	8
38	12638524	WASHER	12638524 WASHER	$1.97	8
39	199731	VIBRATION-DAMPING MOUNT	199731 VIBRATION-DAMPING MOUNT	$81.72	2
40	14306924	SCREWM8X50	14306924 SCREWM8X50	$2.83	4
41	12601374	WASHERD. 8,40-15X 0,8	12601374 WASHERD. 8,40-15X 0,8 D. 8,40-15X 0,8	$1.62	4
42	14496524	WASHER	14496524 WASHER D. 8.40-17 X1.6	$2.05	4
43	187775	RH SUPPORT	187775 RH SUPPORT	$21.51	1
44	187774	LH SUPPORT	187774 LH SUPPORT	$30.41	1
45	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	$2.05	4
46	14496524	WASHER	14496524 WASHER D. 8.40-17 X1.6	$2.05	4
47	187836	SPACER	187836 SPACER	$31.00	1
48	16043124	SCREW M8 X 14	16043124 SCREW M8 X 14	$2.05	4
49	12601374	WASHERD. 8,40-15X 0,8	12601374 WASHERD. 8,40-15X 0,8 D. 8,40-15X 0,8	$1.62	4
50	190270	UNDER EXHAUST SHIELD	190270 UNDER EXHAUST SHIELD Valid for J and AUS and cars GB opt. japan version	$384.44	1
51	190271	BRACKET	190271 BRACKET Valid for J and AUS and cars GB opt. japan version	$57.21	1
52	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM Valid for J and AUS and cars GB opt. japan version	$3.53	2
53	12639724	WASHERD.6.15-11X1	12639724 WASHERD.6.15-11X1 D.6.15-11X1 Valid for J and AUS and cars GB opt. japan version	$1.55	2
54	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5 Valid for J and AUS and cars GB opt. japan version	$2.41	2
55	193098	SPACER BAR THICKNESS	193098 SPACER BAR THICKNESS	$4.22	4
56	194744	THERMOCOUPLE	194744 THERMOCOUPLE Old solution	$284.78	2
57	312020382	CLAMP	312020382 CLAMP Old solution	$1.27	2
58	155751	CLIP	155751 CLIP Old solution	$5.22	2
59	14039614	NUT	14039614 NUT Old solution	$1.54	2
60	12644424	WASHER 6.15-15 X 1	12644424 WASHER 6.15-15 X 1 Old solution	$1.62	2
