Name: INTAKE MANIFOLD AND THROTTLE BODY
Rating: 5.0 (1 reviews)

INTAKE MANIFOLD AND THROTTLE BODY of Maserati Maserati 4200 Coupe (2002-2004) CC

View All

Maserati 4200 Coupe (2002-2004) CC - INTAKE MANIFOLD AND THROTTLE BODY

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	199039	INTAKE MANIFOLD ASSEMBLY	$2,312.75	To Order

Photo	Part No	Description	Price (each)	Stock
	180830	GASKET	$28.04	To Order

Photo	Part No	Description	Price (each)	Stock
	14441424	SCREW	$2.83	To Order
	231619	SCREW M6 X 22MM	$2.92	To Order
	231621	Allen Screw M6 x 30	$1.27	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	180047	SLEEVE	$55.03	To Order

Photo	Part No	Description	Price (each)	Stock
	128016	THREADED UNION	$14.83	To Order

Photo	Part No	Description	Price (each)	Stock
	174818	THREADED UNION	$23.27	To Order

Photo	Part No	Description	Price (each)	Stock
	124342	Threaded Union	$9.10	To Order

Photo	Part No	Description	Price (each)	Stock
	219459	Inlet Manifold Gasket	$12.85	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	190151	Clamp	$8.78	To Order

Photo	Part No	Description	Price (each)	Stock
	331005	THROTTLE BODY	$928.83	To Order

Photo	Part No	Description	Price (each)	Stock
	240262	SPACER	$348.82	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREWM6X45	$3.25	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	196832	COMPLETE FILTER BOX	$293.02	To Order

Photo	Part No	Description	Price (each)	Stock
	186183	Air Filter	$71.22	To Order

Photo	Part No	Description	Price (each)	Stock
	184829	SCREW	$8.88	To Order

Photo	Part No	Description	Price (each)	Stock
	184824	PAD	$16.88	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	12544274	WASHER	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	15896224	NUT	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	180045	Air Flow Meter	$306.40	To Order

Photo	Part No	Description	Price (each)	Stock
	190509	PIPES SUPPORTING BRACKET	$238.23	To Order

Photo	Part No	Description	Price (each)	Stock
	191009	PIPES SUPPORTING BRACKET	$109.86	To Order

Photo	Part No	Description	Price (each)	Stock
	193113	GASKET	$5.90	To Order

Photo	Part No	Description	Price (each)	Stock
	150302	OIL PUMP O-RING	$6.87	To Order

View All

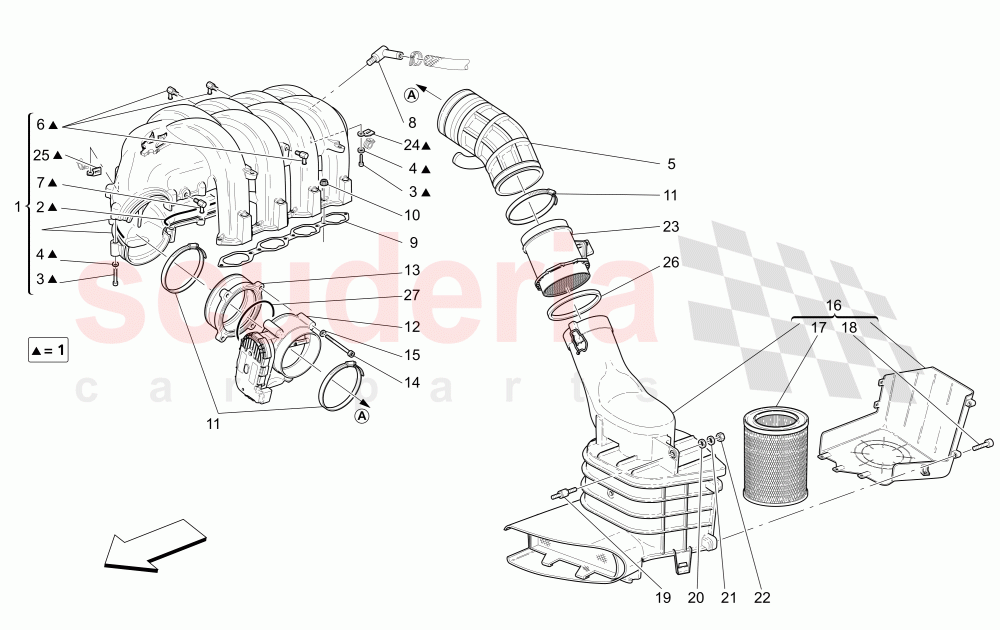

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	199039	INTAKE MANIFOLD ASSEMBLY	199039 INTAKE MANIFOLD ASSEMBLY	$2,312.75	1
2	180830	GASKET	180830 GASKET	$28.04	1
3	14441424	SCREW	14441424 SCREW M6X20	$2.83	1
3	231619	SCREW M6 X 22MM	231619 SCREW M6 X 22MM M6X22	$2.92	7
3	231621	Allen Screw M6 x 30	231621 Allen Screw M6 x 30 M6X30	$1.27	5
3	231625	SCREWM6X50	231625 SCREWM6X50 M6X40	$2.83	2
4	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	14
5	180047	SLEEVE	180047 SLEEVE	$55.03	1
6	128016	THREADED UNION	128016 THREADED UNION	$14.83	3
7	174818	THREADED UNION	174818 THREADED UNION	$23.27	1
8	124342	Threaded Union	124342 Threaded Union	$9.10	1

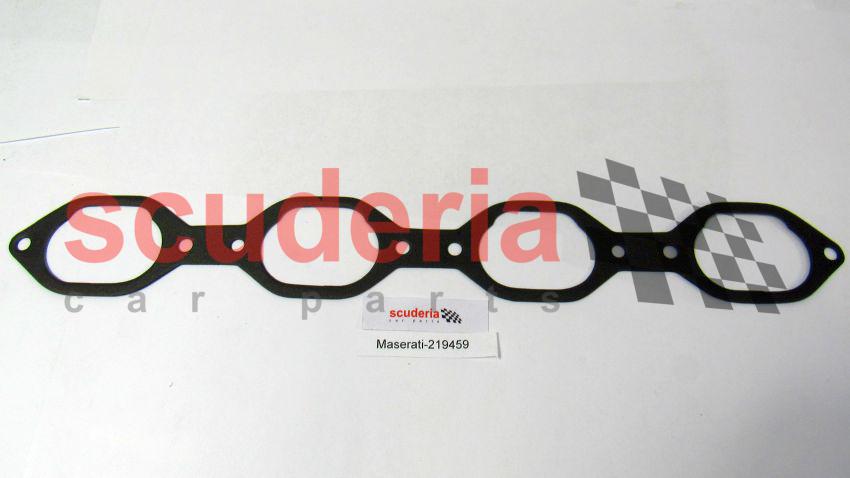

9	219459	Inlet Manifold Gasket	219459 Inlet Manifold Gasket Supplied also in the cylinder heads gasket revision kit (cod. 980020001)	$12.85	2
10	14039614	NUT	14039614 NUT	$1.54	16
11	190151	Clamp	190151 Clamp	$8.78	3
12	331005	THROTTLE BODY	331005 THROTTLE BODY	$928.83	1
13	240262	SPACER	240262 SPACER	$348.82	1
14	231624	SCREWM6X45	231624 SCREWM6X45 M6X45	$3.25	4
15	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	4
16	196832	COMPLETE FILTER BOX	196832 COMPLETE FILTER BOX	$293.02 MSRP: ~~313.43~~ (6.5% off)	1

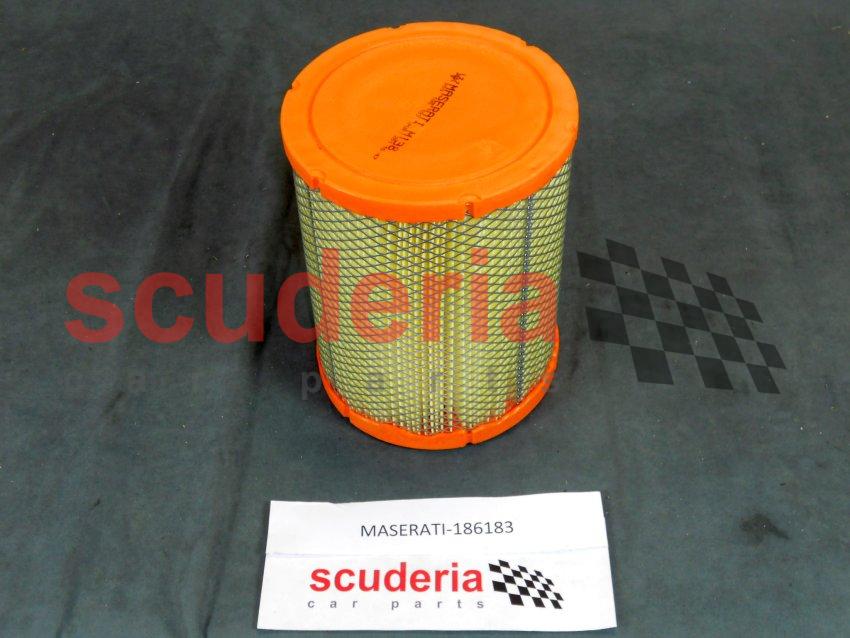

17	186183	Air Filter	186183 Air Filter	$71.22 MSRP: ~~91.59~~ (22.2% off)	1
18	184829	SCREW	184829 SCREW	$8.88	5
19	184824	PAD	184824 PAD	$16.88	3
20	12643724	Washer 6.15-18x1.5	12643724 Washer 6.15-18x1.5 D 6,15-18X 1,5	$1.62	3
21	12544274	WASHER	12544274 WASHER	$3.40 MSRP: ~~6.88~~ (50.6% off)	3
22	15896224	NUT	15896224 NUT	$1.97	3

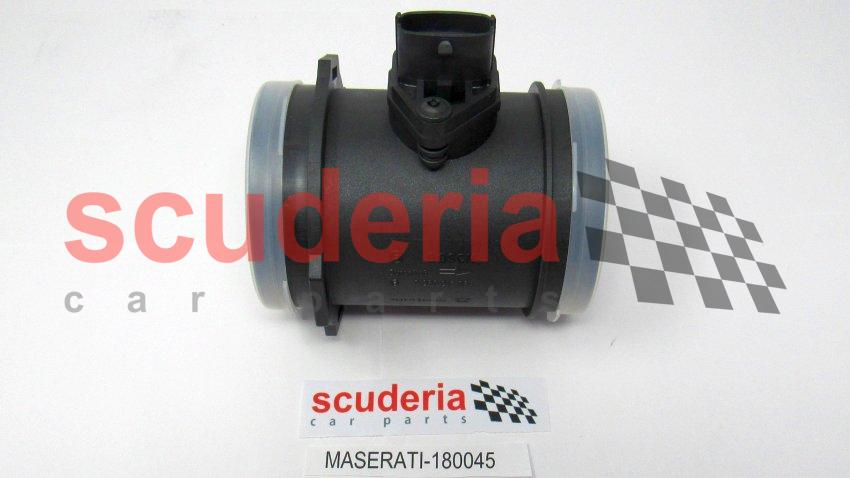

23	180045	Air Flow Meter	180045 Air Flow Meter	$306.40 MSRP: ~~679.12~~ (54.9% off)	1
24	190509	PIPES SUPPORTING BRACKET	190509 PIPES SUPPORTING BRACKET	$238.23	3
25	191009	PIPES SUPPORTING BRACKET	191009 PIPES SUPPORTING BRACKET	$109.86	1
26	193113	GASKET	193113 GASKET	$5.90	1
27	150302	OIL PUMP O-RING	150302 OIL PUMP O-RING	$6.87	1
