FUEL PUMPS AND CONNECTION LINES of Maserati Maserati 4200 Coupe (2002-2004) CC

View All

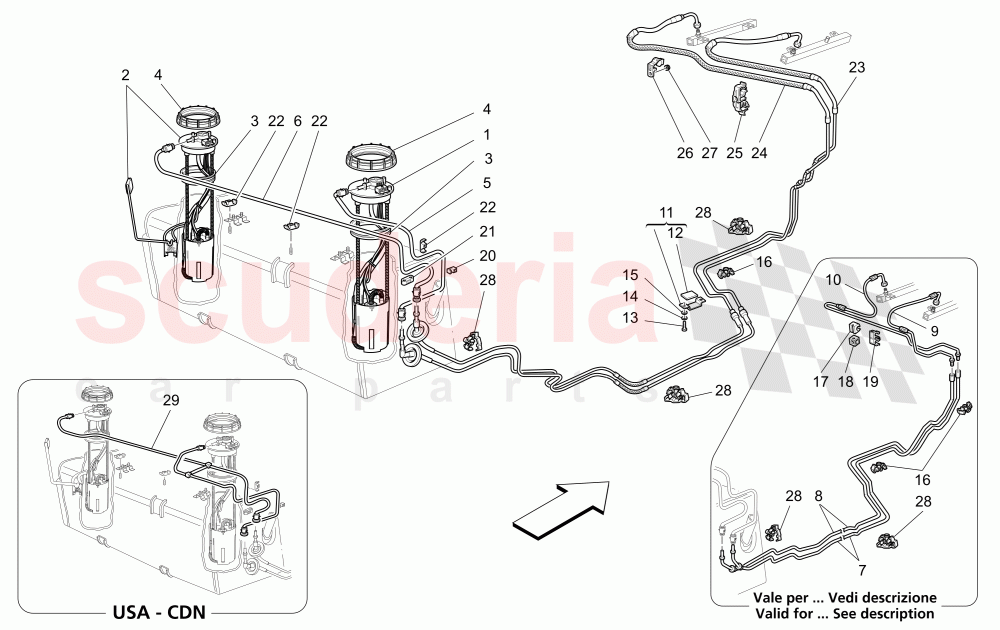

Maserati 4200 Coupe (2002-2004) CC - FUEL PUMPS AND CONNECTION LINES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

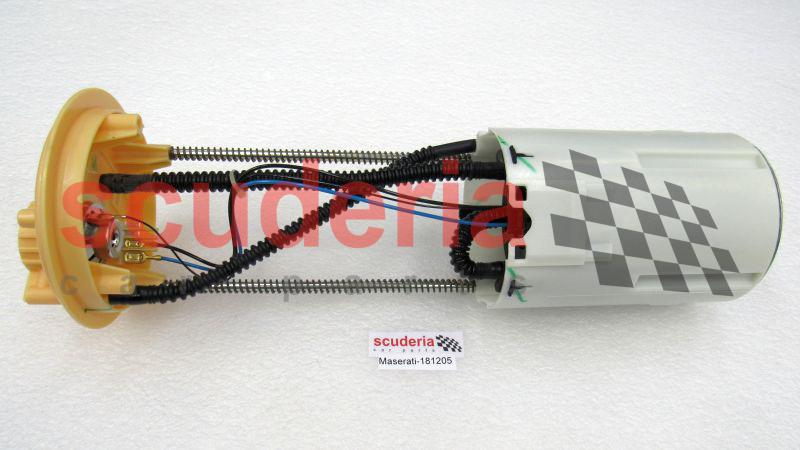

	181205	FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

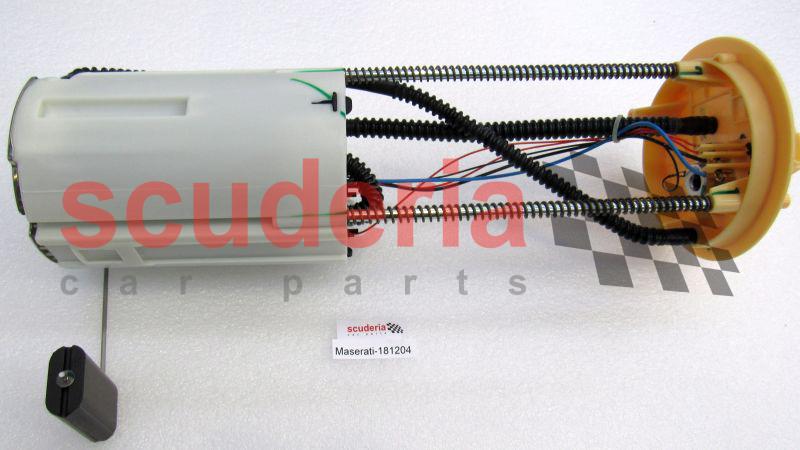

	181204	LH Fuel Pump with Level Gauge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181681	Fuel Pump Gasket	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	181682	FUEL PUMP RETAINER RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197655	R.H. FUEL DELIVERY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197656	L.H. FUEL DELIVERY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183208	R.H. FUEL DELIVERY UNDERFRAME TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183211	L.H. FUEL DELIVERY UNDERFRAME TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206586	R.H. FUEL DELIVERY PIPE TO FLEXIBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206587	L.H. FUEL DELIVERY PIPE TO FLEXIBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187464	PIPES PROTECTION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387400402	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14447025	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	379200408	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140731	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155781	CLIP ANCHOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190410	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	389200406	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191047	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	379200408	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194747	R.H. FUEL DELIVERY PIPE TO FLEXIBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194748	L.H. FUEL DELIVERY PIPE TO FLEXIBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195052	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159521	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190410	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193544	COMPLETE FUEL DELIVERY TUBE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	181205	FUEL PUMP	181205 FUEL PUMP	-	1	Enquire
2	181204	LH Fuel Pump with Level Gauge	181204 LH Fuel Pump with Level Gauge	-	1	Enquire
3	181681	Fuel Pump Gasket ARRIVING SOON	181681 Fuel Pump Gasket ARRIVING SOON	-	2	Enquire
4	181682	FUEL PUMP RETAINER RING NUT	181682 FUEL PUMP RETAINER RING NUT	-	2	Enquire
5	197655	R.H. FUEL DELIVERY TUBE	197655 R.H. FUEL DELIVERY TUBE Not for USA and CDN	-	1	Enquire
6	197656	L.H. FUEL DELIVERY TUBE	197656 L.H. FUEL DELIVERY TUBE Not for USA and CDN	-	1	Enquire
7	183208	R.H. FUEL DELIVERY UNDERFRAME TUBE	183208 R.H. FUEL DELIVERY UNDERFRAME TUBE Valid for USA and CDN- -Valid till car Ass. Nr. 13308	-	1	Enquire
8	183211	L.H. FUEL DELIVERY UNDERFRAME TUBE	183211 L.H. FUEL DELIVERY UNDERFRAME TUBE Valid for USA and CDN- -Valid till car Ass. Nr. 13308	-	1	Enquire
9	206586	R.H. FUEL DELIVERY PIPE TO FLEXIBLE	206586 R.H. FUEL DELIVERY PIPE TO FLEXIBLE Valid for USA and CDN- -Valid till car Ass. Nr. 13308	-	1	Enquire
10	206587	L.H. FUEL DELIVERY PIPE TO FLEXIBLE	206587 L.H. FUEL DELIVERY PIPE TO FLEXIBLE Valid for USA and CDN- -Valid till car Ass. Nr. 13308	-	1	Enquire
11	187464	PIPES PROTECTION BRACKET	187464 PIPES PROTECTION BRACKET	-	1	Enquire
12	387400402	GASKET	387400402 GASKET	-	1	Enquire
13	10977824	SCREW	10977824 SCREW	-	2	Enquire
14	11181574	WASHER	11181574 WASHER D.5.3-11X0.9	-	2	Enquire
15	14447025	WASHER	14447025 WASHER	-	2	Enquire
16	379200408	CLIP	379200408 CLIP	-	-	Enquire
17	140731	CLIP	140731 CLIP Valid for USA and CDN- -Valid till car Ass. Nr. 13308	-	2	Enquire
18	155781	CLIP ANCHOR	155781 CLIP ANCHOR Valid for USA and CDN- -Valid till car Ass. Nr. 13308	-	2	Enquire
19	190410	CLIP	190410 CLIP Valid for USA and CDN- -Valid till car Ass. Nr. 13308	-	2	Enquire
20	389200406	CLIP	389200406 CLIP	-	1	Enquire
21	191047	CLIP	191047 CLIP	-	1	Enquire
22	379200408	CLIP	379200408 CLIP	-	3	Enquire
23	194747	R.H. FUEL DELIVERY PIPE TO FLEXIBLE	194747 R.H. FUEL DELIVERY PIPE TO FLEXIBLE Not for USA and CDN- -From car Ass. Nr. 13309 valid for all versions	-	1	Enquire
24	194748	L.H. FUEL DELIVERY PIPE TO FLEXIBLE	194748 L.H. FUEL DELIVERY PIPE TO FLEXIBLE Not for USA and CDN- -From car Ass. Nr. 13309 valid for all versions	-	1	Enquire
25	195052	CLIP	195052 CLIP Not for USA and CDN- -From car Ass. Nr. 13309 valid for all versions	-	2	Enquire
26	159521	CLIP	159521 CLIP Not for USA and CDN- -From car Ass. Nr. 13309 valid for all versions	-	1	Enquire
27	14039614	NUT	14039614 NUT Not for USA and CDN- -From car Ass. Nr. 13309 valid for all versions	-	1	Enquire
28	190410	CLIP	190410 CLIP	-	-	Enquire
29	193544	COMPLETE FUEL DELIVERY TUBE	193544 COMPLETE FUEL DELIVERY TUBE Valid for USA and CDN	-	1	Enquire
