INJECTION - IGNITION DEVICE

Find Your Part

Maserati 4200 Coupe (2002-2004) CC - INJECTION - IGNITION DEVICE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
180251 IGNITION CONTROL UNIT $2,673.66 To Order
Photo Part No Description Price (each) Stock
202618 ENGINE INJECTION WIRING HARNESS $2,874.25 To Order
203960 ENGINE INJECTION WIRING HARNESS $3,689.63 To Order
203959 ENGINE INJECTION WIRING HARNESS $1,356.97 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
188504 IGNITION COIL $201.06 To Order
Photo Part No Description Price (each) Stock
186914 REAR IGNITION COIL $201.06 To Order
Photo Part No Description Price (each) Stock

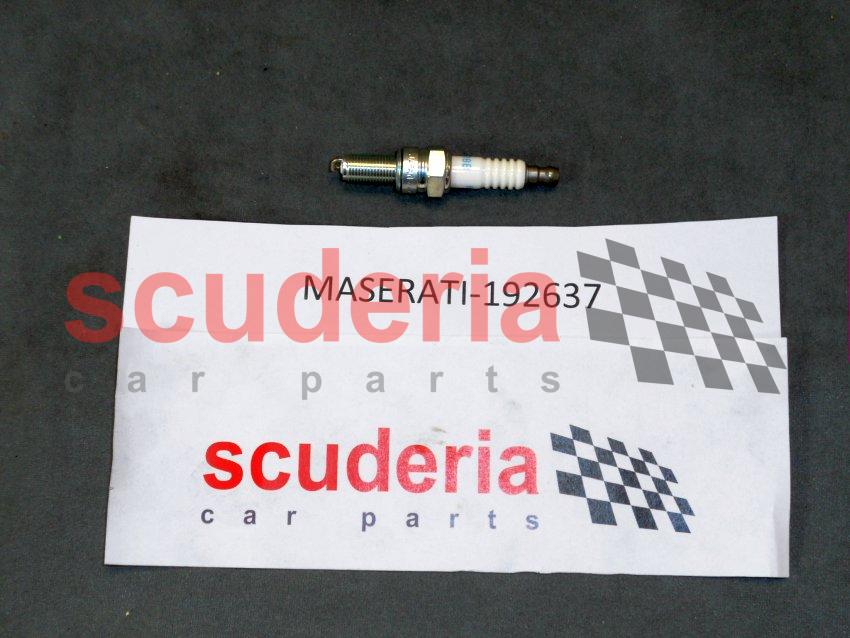

192637 Spark Plug NGK $26.17 To Order
Photo Part No Description Price (each) Stock
189124 LH FUEL PIPE COVER $38.35 To Order
189123 RH FUEL PIPE COVER $38.35 To Order
Photo Part No Description Price (each) Stock
212696 LH FUEL PIPE WITH INJECTORS $1,021.51 To Order
212697 RH FUEL PIPE WITH INJECTORS $972.01 To Order
Photo Part No Description Price (each) Stock
197808 ELECTRO-INJECTOR $266.36 To Order
Photo Part No Description Price (each) Stock
133902 GASKET $12.13 To Order
Photo Part No Description Price (each) Stock
201599 SCREWM6X20 $2.39 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.41 To Order
Photo Part No Description Price (each) Stock
66313100 MOTRONIC BRACKET $6.62 To Order
Photo Part No Description Price (each) Stock
14054577 NUT Enquire To Order
Photo Part No Description Price (each) Stock
11193874 WASHERD.8.4-16X1.4 $1.62 To Order
Photo Part No Description Price (each) Stock
13516924 STUD $16.78 To Order
Photo Part No Description Price (each) Stock
16102314 NUTM8 $1.97 To Order
Photo Part No Description Price (each) Stock
12604474 WASHER $1.55 To Order
Photo Part No Description Price (each) Stock
14042321 NUT $2.39 To Order
Photo Part No Description Price (each) Stock
190009 R.H. BRACKET FOR COIL CABLES $21.54 To Order
Photo Part No Description Price (each) Stock
190010 L.H. BRACKET FOR COIL CABLES $21.54 To Order
Photo Part No Description Price (each) Stock
18750121 SCREW $4.50 To Order
Photo Part No Description Price (each) Stock
144730 CLIP $6.62 To Order
View All

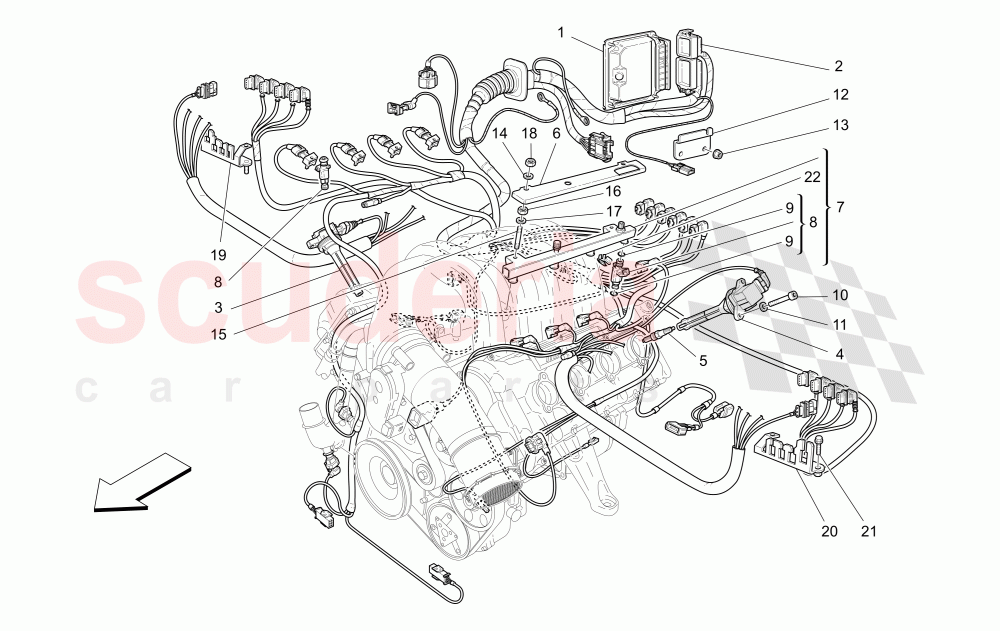

INJECTION - IGNITION DEVICE of Maserati Maserati 4200 Coupe (2002-2004) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 180251
IGNITION CONTROL UNIT
Programmable 		$2,673.66 1
2 202618
ENGINE INJECTION WIRING HARNESS
Valid for F1- -Valid for RHD- -Valid for cars with thermocouples 		$2,874.25 1
2 203960
ENGINE INJECTION WIRING HARNESS
Valid for F1- -Valid for RHD- -Not for cars with thermocouples 		$3,689.63 1
2 203959
ENGINE INJECTION WIRING HARNESS
Valid for F1- -Not for USA, CDN and RHD- -Not for cars with thermocouples 		$1,356.97 1
2 202617
ENGINE INJECTION WIRING HARNESS
Valid for F1- -Valid for USA and CDN- -Valid for cars with thermocouples set 		$1,757.93 1
2 206639
ENGINE INJECTION WIRING HARNESS
Valid for F1- -Valid for USA and CDN- -Not for cars with thermocouples set 		$1,799.45 1
2 200104
ENGINE INJECTION WIRING HARNESS
Not for F1- -Valid for RHD- -Not for cars with thermocouples 		$1,247.36 1
2 202616
ENGINE INJECTION WIRING HARNESS
Valid for F1- -Not for USA, CDN and RHD- -Valid for cars with thermocouples 		$3,823.37 1
2 196332
ENGINE INJECTION WIRING HARNESS
Not for F1- -Valid for USA and CDN- -Valid for cars with thermocouples set 		$2,433.03 1
2 206640
ENGINE INJECTION WIRING HARNESS
Not for F1- -Valid for USA and CDN- -Not for cars with thermocouples set 		$2,566.77 1
2 195034
ENGINE INJECTION WIRING HARNESS
Not for F1- -Valid for RHD- -Valid for cars with thermocouples 		$1,264.75 1
2 195032
ENGINE INJECTION WIRING HARNESS
Not for F1- -Not for USA, CDN and RHD- -Valid for cars with thermocouples 		$4,251.15 1
2 200103
ENGINE INJECTION WIRING HARNESS
Not for F1- -Not for USA, CDN and RHD- -Not for cars with thermocouples 		$1,882.27 1
3 188504
IGNITION COIL
Complete of cable 		$201.06 4
4 186914
REAR IGNITION COIL
Complete of cable 		$201.06 4
5 192637
Spark Plug NGK 		$26.17 (22.6% off) 8
6 189124
LH FUEL PIPE COVER 		$38.35 1
6 189123
RH FUEL PIPE COVER 		$38.35 1
7 212696
LH FUEL PIPE WITH INJECTORS 		$1,021.51 1
7 212697
RH FUEL PIPE WITH INJECTORS 		$972.01 1
8 197808
ELECTRO-INJECTOR 		$266.36 (6.8% off) 8
9 133902
GASKET 		$12.13 16
10 201599
SCREWM6X20
M6X20 		$2.39 16
11 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4 		$2.41 16
12 66313100
MOTRONIC BRACKET 		$6.62 1
13 14054577
NUT
M6 		- 2 Enquire
14 11193874
WASHERD.8.4-16X1.4
D.8.4-16X1.4 		$1.62 4
15 13516924
STUD 		$16.78 4
16 16102314
NUTM8
M8 		$1.97 4
17 12604474
WASHER 		$1.55 4
18 14042321
NUT 		$2.39 4
19 190009
R.H. BRACKET FOR COIL CABLES 		$21.54 1
20 190010
L.H. BRACKET FOR COIL CABLES 		$21.54 1
21 18750121
SCREW 		$4.50 2
22 144730
CLIP 		$6.62 8
