EXTERNAL FINISHING - BADGES of Maserati Maserati 3200 GT / Assetto Corsa

View All

Maserati 3200 GT / Assetto Corsa - EXTERNAL FINISHING - BADGES

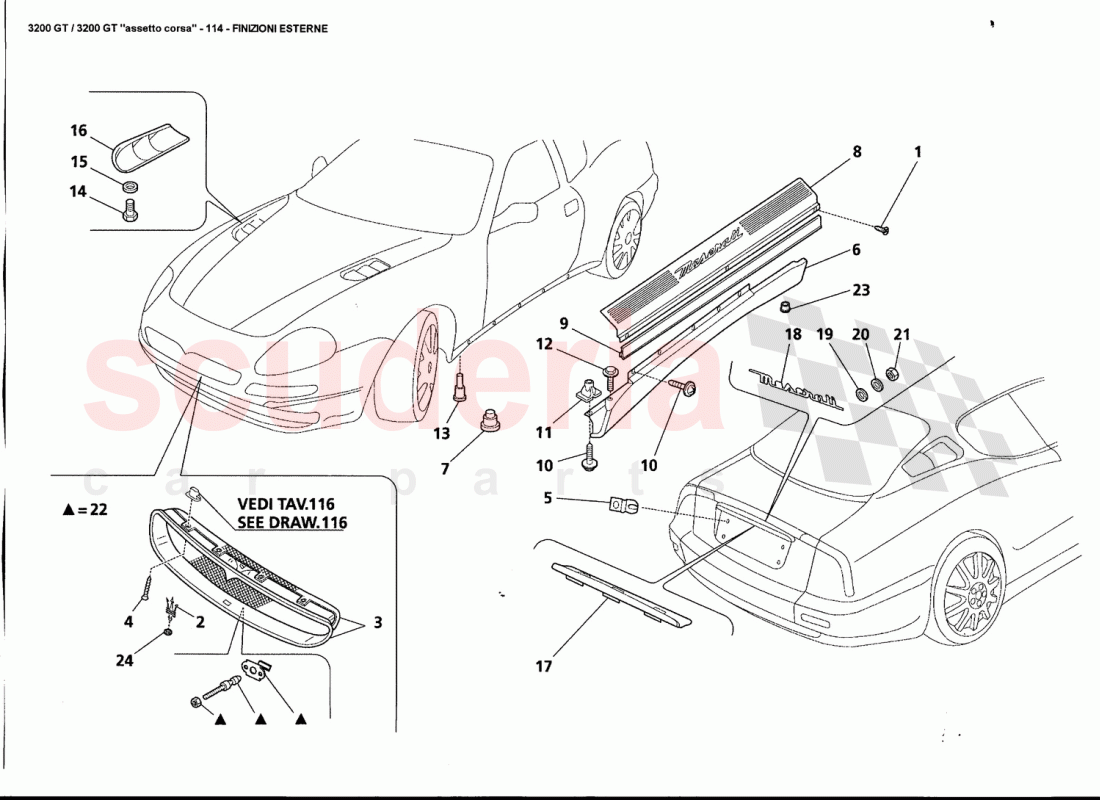

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12678870	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386100131	BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386300105	FRONT GRILL ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15910007	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319220324	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000907	LH SIDE GUARD	Enquire	To Order
	980000906	RH SIDE GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

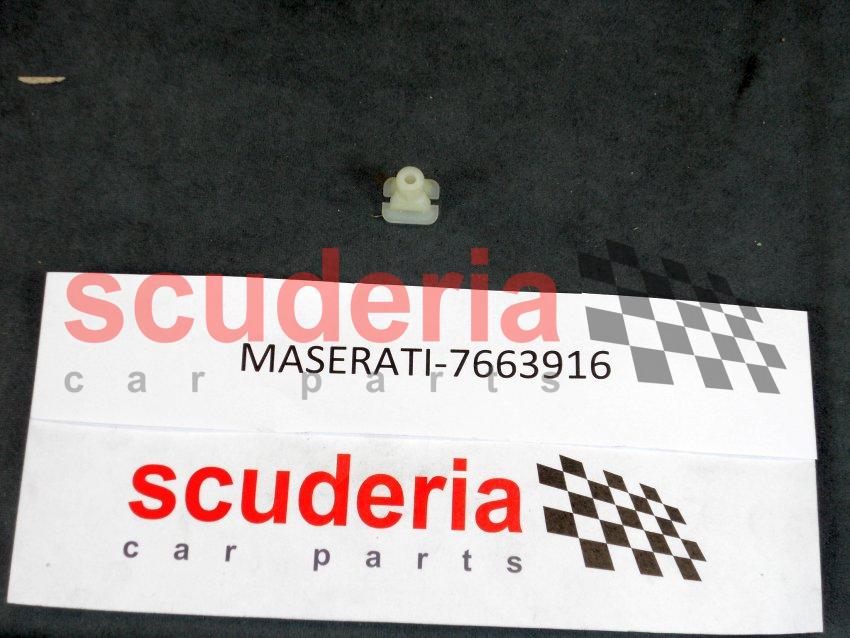

	7663916	Block	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66700900	MOULDING UNDER LH DOOR.	Enquire	To Order
	386100394	R.H. UNDER DOOR MOULDING	Enquire	To Order
	386100313	L.H. UNDER DOOR MOULDING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock

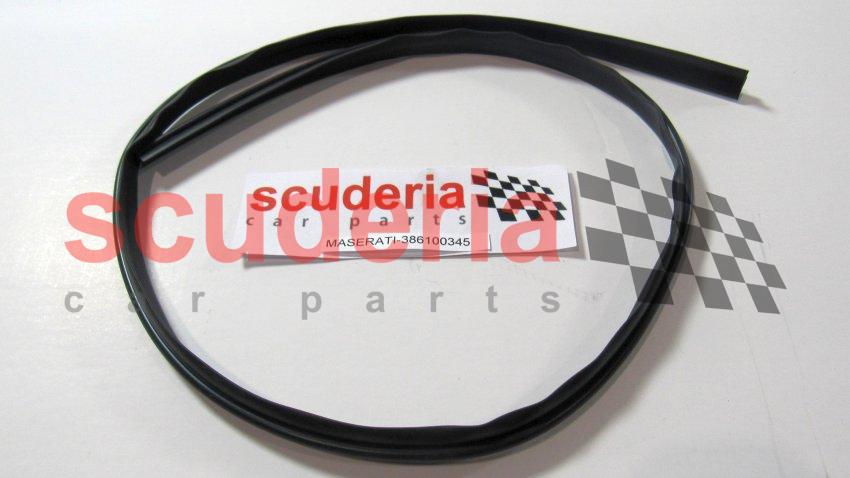

	386100345	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15784101	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7663916	Block	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11730624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248146	THREADED RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302974	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577667	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000919	LH BONNET OUTLET	Enquire	To Order
	980000920	RH BONNET OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386100349	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386100132	BRAND MARK ON BOOT.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	384700357	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639401	BLANK WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16101714	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000987	FRAME ATTACHMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000995	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386100341	SPACER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	12678870	SCREW	12678870 SCREW	-	6	Enquire
2	386100131	BADGE	386100131 BADGE	-	1	Enquire
3	386300105	FRONT GRILL ASSY	386300105 FRONT GRILL ASSY	-	1	Enquire
4	15910007	SCREW	15910007 SCREW	-	4	Enquire
5	319220324	CLIP	319220324 CLIP	-	4	Enquire
6	980000907	LH SIDE GUARD	980000907 LH SIDE GUARD	-	1	Enquire
6	980000906	RH SIDE GUARD	980000906 RH SIDE GUARD	-	1	Enquire
7	7663916	Block	7663916 Block	-	18	Enquire
8	66700900	MOULDING UNDER LH DOOR.	66700900 MOULDING UNDER LH DOOR. Optional / Racing trim	-	1	Enquire
8	386100394	R.H. UNDER DOOR MOULDING	386100394 R.H. UNDER DOOR MOULDING Optional / Customized silk-screen process	-	1	Enquire
8	386100313	L.H. UNDER DOOR MOULDING	386100313 L.H. UNDER DOOR MOULDING Standard	-	1	Enquire
8	66700800	MOULDING UNDER RH DOOR.	66700800 MOULDING UNDER RH DOOR. Optional / Racing trim	-	1	Enquire
8	386100393	L.H. UNDER DOOR MOULDING	386100393 L.H. UNDER DOOR MOULDING Optional / Customized silk-screen process	-	1	Enquire
8	386100314	R.H. UNDER DOOR MOULDING	386100314 R.H. UNDER DOOR MOULDING Standard	-	1	Enquire
9	386100345	GASKET	386100345 GASKET	-	2	Enquire
10	15784101	SCREW	15784101 SCREW	-	14	Enquire
11	7663916	Block	7663916 Block	-	14	Enquire
12	11730624	SCREW	11730624 SCREW	-	10	Enquire
13	248146	THREADED RIVET	248146 THREADED RIVET	-	6	Enquire
14	14302974	SCREW	14302974 SCREW	-	8	Enquire
15	13577667	WASHER	13577667 WASHER	-	8	Enquire
16	980000919	LH BONNET OUTLET	980000919 LH BONNET OUTLET	-	1	Enquire
16	980000920	RH BONNET OUTLET	980000920 RH BONNET OUTLET	-	1	Enquire
17	386100349	PLATE	386100349 PLATE	-	1	Enquire
18	386100132	BRAND MARK ON BOOT.	386100132 BRAND MARK ON BOOT.	-	1	Enquire
19	384700357	GASKET	384700357 GASKET	-	3	Enquire
20	12639401	BLANK WASHER	12639401 BLANK WASHER	-	3	Enquire
21	16101714	NUT	16101714 NUT	-	3	Enquire
22	980000987	FRAME ATTACHMENT KIT	980000987 FRAME ATTACHMENT KIT	-	1	Enquire
23	980000995	PLUG	980000995 PLUG	-	4	Enquire
24	386100341	SPACER	386100341 SPACER	-	1	Enquire
