Body Sheel: Rear Outer Panels

Maserati 3200 GT / Assetto Corsa

Find Your Part

Maserati 3200 GT / Assetto Corsa - BODY SHEEL: REAR OUTER PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
382500220 COMPLETE R.H.REAR FENDER Enquire To Order
Photo Part No Description Price (each) Stock
382500219 COMPLETE L.H.REAR FENDER Enquire To Order
Photo Part No Description Price (each) Stock
382500222 R.H.HEADLIGHT BOX Enquire To Order
Photo Part No Description Price (each) Stock
382500221 LH.HEADLIGHT BOX Enquire To Order
Photo Part No Description Price (each) Stock
382500051 COMPLETE FUEL UNION SEAT Enquire To Order
Photo Part No Description Price (each) Stock
382500414 BOX FOR FUEL TANK UNION Enquire To Order
Photo Part No Description Price (each) Stock
382500419 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
382500420 RIGID PIPE Enquire To Order
Photo Part No Description Price (each) Stock
382500417 ACTUATOR FIXING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
382500406 RH. OUTER REAR WHEEL BOX Enquire To Order
Photo Part No Description Price (each) Stock
382500405 LH. OUTER REAR WHEEL BOX Enquire To Order
Photo Part No Description Price (each) Stock
382500404 R.H. INNER LATERAL FRAME Enquire To Order
Photo Part No Description Price (each) Stock
382500403 L.H. INNER LATERAL FRAME Enquire To Order
Photo Part No Description Price (each) Stock
980138014 R.H. CENTRAL ROD Enquire To Order
Photo Part No Description Price (each) Stock
980138013 L.H. CENTRAL ROD Enquire To Order
Photo Part No Description Price (each) Stock
382500412 INSERT FOR R.H. REAR INNER SIDE Enquire To Order
Photo Part No Description Price (each) Stock
382500411 INSERT FOR L.H. REAR INNER SIDE Enquire To Order
Photo Part No Description Price (each) Stock
82431114 COMPLETE PLATE Enquire To Order
Photo Part No Description Price (each) Stock
382500382 R.H. REINFORCEMENT FOR TRUNK HOOD HINGE FIXING Enquire To Order
Photo Part No Description Price (each) Stock
382500381 L.H. REINFORCEMENT FOR TRUNK HOOD HINGE FIXING Enquire To Order
Photo Part No Description Price (each) Stock
382500392 R.H. LATERAL INSERT FOR UNDER REAR-WINDOW CROSSPIECE Enquire To Order
Photo Part No Description Price (each) Stock
382500391 L.H. LATERAL INSERT FOR UNDER REAR-WINDOW CROSSPIECE Enquire To Order
Photo Part No Description Price (each) Stock
382500380 BOOT COMPARTMENT CENTRAL CABLE GUIDE Enquire To Order
Photo Part No Description Price (each) Stock
66499200 REAR CROSS MEMBER ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
382501050 COMPLETE FUEL INLET LID Enquire To Order
Photo Part No Description Price (each) Stock
382500154 WIRE ROD Enquire To Order
Photo Part No Description Price (each) Stock
382500201 FUEL FILLER CAP HING Enquire To Order
Photo Part No Description Price (each) Stock
12638104 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14039614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
13283214 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10519304 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
382500554 ADJUSTING PLATE Enquire To Order
Photo Part No Description Price (each) Stock
66919100 SHIMMING PLATE Enquire To Order
Photo Part No Description Price (each) Stock
384700100 REAR DOOR Enquire To Order
View All

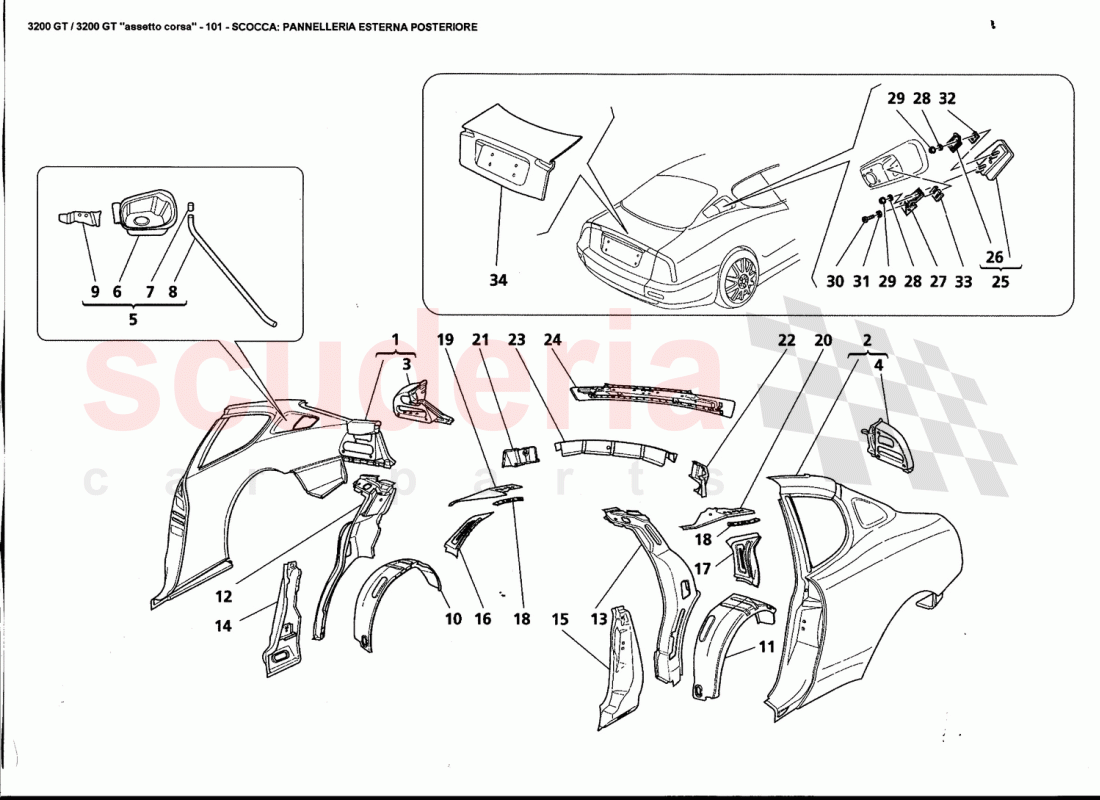

BODY SHEEL: REAR OUTER PANELS of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 382500220
COMPLETE R.H.REAR FENDER 		- 1 Enquire
2 382500219
COMPLETE L.H.REAR FENDER 		- 1 Enquire
3 382500222
R.H.HEADLIGHT BOX 		- 1 Enquire
4 382500221
LH.HEADLIGHT BOX 		- 1 Enquire
5 382500051
COMPLETE FUEL UNION SEAT 		- 1 Enquire
6 382500414
BOX FOR FUEL TANK UNION 		- 1 Enquire
7 382500419
BUSHING 		- 1 Enquire
8 382500420
RIGID PIPE 		- 1 Enquire
9 382500417
ACTUATOR FIXING BRACKET 		- 1 Enquire
10 382500406
RH. OUTER REAR WHEEL BOX 		- 1 Enquire
11 382500405
LH. OUTER REAR WHEEL BOX 		- 1 Enquire
12 382500404
R.H. INNER LATERAL FRAME 		- 1 Enquire
13 382500403
L.H. INNER LATERAL FRAME 		- 1 Enquire
14 980138014
R.H. CENTRAL ROD 		- 1 Enquire
15 980138013
L.H. CENTRAL ROD 		- 1 Enquire
16 382500412
INSERT FOR R.H. REAR INNER SIDE 		- 1 Enquire
17 382500411
INSERT FOR L.H. REAR INNER SIDE 		- 1 Enquire
18 82431114
COMPLETE PLATE 		- 2 Enquire
19 382500382
R.H. REINFORCEMENT FOR TRUNK HOOD HINGE FIXING
TRUNK HOOD HINGE FIXING 		- 1 Enquire
20 382500381
L.H. REINFORCEMENT FOR TRUNK HOOD HINGE FIXING
TRUNK HOOD HINGE FIXING 		- 1 Enquire
21 382500392
R.H. LATERAL INSERT FOR UNDER REAR-WINDOW CROSSPIECE
UNDER REAR-WINDOW CROSSPIECE 		- 1 Enquire
22 382500391
L.H. LATERAL INSERT FOR UNDER REAR-WINDOW CROSSPIECE
UNDER REAR-WINDOW CROSSPIECE 		- 1 Enquire
23 382500380
BOOT COMPARTMENT CENTRAL CABLE GUIDE 		- 1 Enquire
24 66499200
REAR CROSS MEMBER ASSEMBLY 		- 1 Enquire
25 382501050
COMPLETE FUEL INLET LID 		- 1 Enquire
26 382500154
WIRE ROD 		- 1 Enquire
27 382500201
FUEL FILLER CAP HING
DOOR 		- 1 Enquire
28 12638104
WASHER 		- 4 Enquire
29 14039614
NUT 		- 4 Enquire
30 13283214
SCREW 		- 2 Enquire
31 10519304
WASHER 		- 2 Enquire
32 382500554
ADJUSTING PLATE
As necessary 		- - Enquire
33 66919100
SHIMMING PLATE 		- 1 Enquire
34 384700100
REAR DOOR 		- 1 Enquire
