BOOT LIDS: HINGES, BOOT LID RELEASE

Find Your Part

Maserati 3200 GT / Assetto Corsa - BOOT LIDS: HINGES, BOOT LID RELEASE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
60616619 PAD $6.35 To Order
Photo Part No Description Price (each) Stock
16102314 NUTM8 $1.97 To Order
Photo Part No Description Price (each) Stock
11182277 WASHER $3.40 To Order
Photo Part No Description Price (each) Stock
82448954 SCREW $7.75 To Order
Photo Part No Description Price (each) Stock
384700118 GAS SPRING $97.25 To Order
Photo Part No Description Price (each) Stock
67611500 BLOCK $1.27 To Order
Photo Part No Description Price (each) Stock
384700140 INTERNAL TRIM $87.65 To Order
Photo Part No Description Price (each) Stock
60657976 EXPANDIBLE WASHER $15.08 To Order
Photo Part No Description Price (each) Stock
15783507 SCREW $1.97 To Order
Photo Part No Description Price (each) Stock
68084300 LUGGAGE COMPARTMENT GASKET $118.89 To Order
Photo Part No Description Price (each) Stock
384700125 COMPLETE BOOT LOCK- BOWDENCABLE $512.07 To Order
Photo Part No Description Price (each) Stock
11730624 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
82487413 LOCK STRIKER $8.47 To Order
Photo Part No Description Price (each) Stock
11730624 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
374705340 BOOT LOCK $12.69 To Order
Photo Part No Description Price (each) Stock
384700127 BRACKET $21.54 To Order
Photo Part No Description Price (each) Stock
82448954 SCREW $7.75 To Order
Photo Part No Description Price (each) Stock
13046114 NUT $2.05 To Order
Photo Part No Description Price (each) Stock
14498801 Washer $1.55 To Order
Photo Part No Description Price (each) Stock
374700341 GASKET $1.97 To Order
Photo Part No Description Price (each) Stock
167590420 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
384700105 REAR LEFT BOOT LID HINGE $186.95 To Order
384700106 REAR RIGHT BOOT LID HINGE $186.95 To Order
Photo Part No Description Price (each) Stock
82475459 WASHER $15.08 To Order
View All

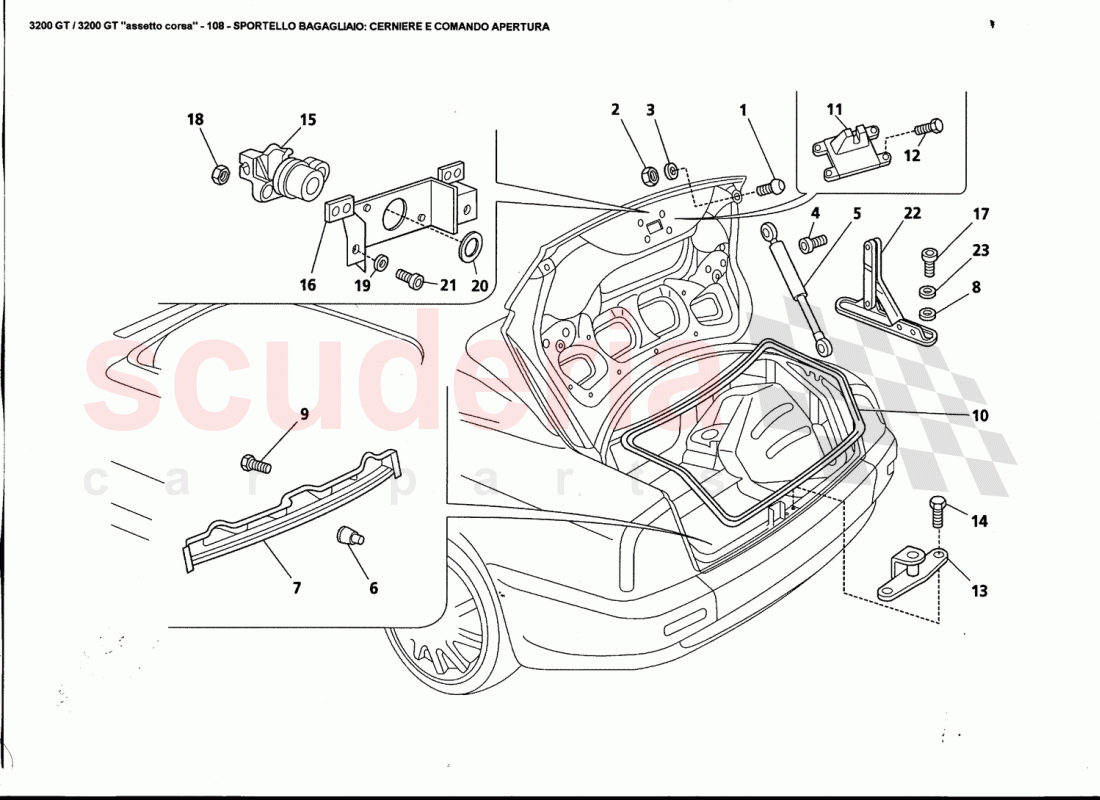

BOOT LIDS: HINGES, BOOT LID RELEASE of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 60616619
PAD 		$6.35 2
2 16102314
NUTM8 		$1.97 2
3 11182277
WASHER 		$3.40 2
4 82448954
SCREW 		$7.75 (21.9% off) 4
5 384700118
GAS SPRING 		$97.25 (2.5% off) 1
6 67611500
BLOCK 		$1.27 8
7 384700140
INTERNAL TRIM 		$87.65 1
8 60657976
EXPANDIBLE WASHER 		$15.08 6
9 15783507
SCREW 		$1.97 8
10 68084300
LUGGAGE COMPARTMENT GASKET 		$118.89 1
11 384700125
COMPLETE BOOT LOCK- BOWDENCABLE 		$512.07 1
12 11730624
SCREW 		$2.83 4
13 82487413
LOCK STRIKER 		$8.47 1
14 11730624
SCREW 		$2.83 2
15 374705340
BOOT LOCK 		$12.69 1
16 384700127
BRACKET 		$21.54 1
17 82448954
SCREW 		$7.75 (21.9% off) 6
18 13046114
NUT 		$2.05 2
19 14498801
Washer 		$1.55 2
20 374700341
GASKET 		$1.97 1
21 167590420
SCREW 		$2.83 2
22 384700105
REAR LEFT BOOT LID HINGE 		$186.95 1
22 384700106
REAR RIGHT BOOT LID HINGE 		$186.95 1
23 82475459
WASHER 		$15.08 6
