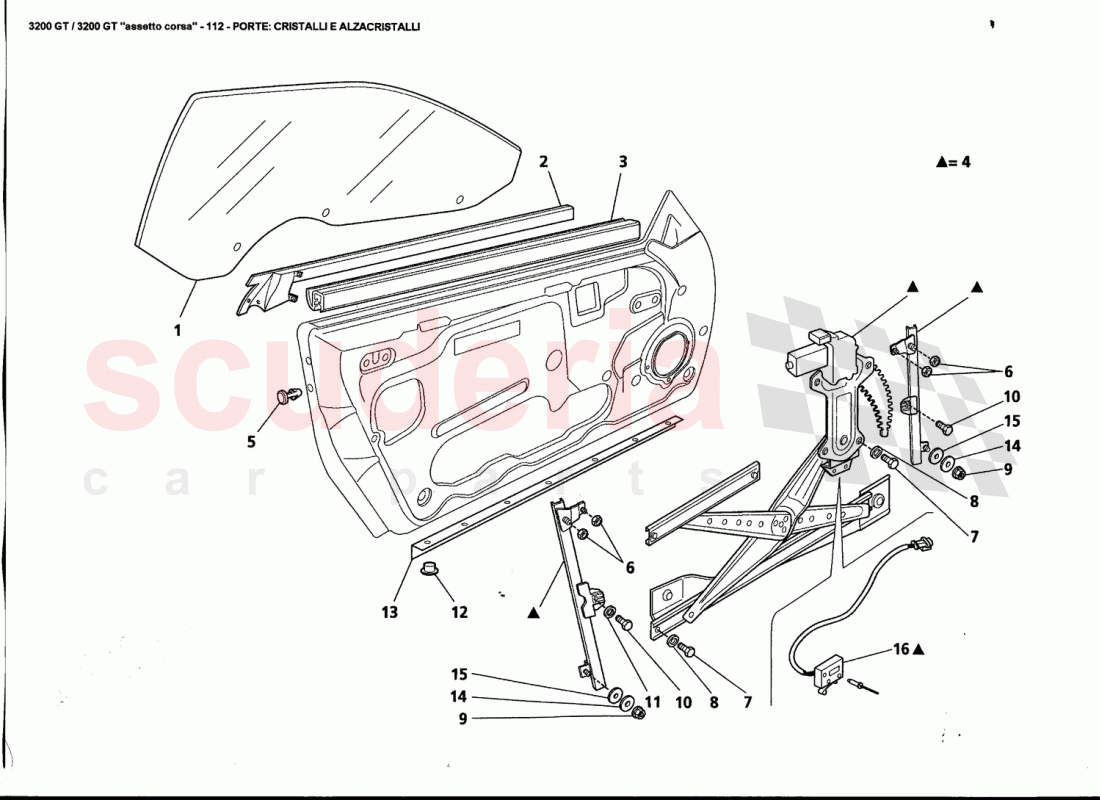

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	67820300	L.H. OUTER GLASS SCRAPER GASKET	Enquire	To Order
	67820200	R.H. OUTER GLASS SCRAPER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387700352	INT. WINDOW SCRAPER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387700051	Complete L.H. Device For Glass Lift	Enquire	To Order
	387700050	Complete R.H. Device For Glass Lift	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388300805	BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16132324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271617	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135900043	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	384500442	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	384500441	UNDERDOOR GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136110110	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312520511	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001800	Micro-Switch	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	387700305	L.H. MOBILE GLASS	387700305 L.H. MOBILE GLASS	-	1	Enquire
1	387700306	R.H. MOBILE GLASS	387700306 R.H. MOBILE GLASS	-	1	Enquire
2	67820300	L.H. OUTER GLASS SCRAPER GASKET	67820300 L.H. OUTER GLASS SCRAPER GASKET	-	1	Enquire
2	67820200	R.H. OUTER GLASS SCRAPER GASKET	67820200 R.H. OUTER GLASS SCRAPER GASKET	-	1	Enquire
3	387700352	INT. WINDOW SCRAPER GASKET	387700352 INT. WINDOW SCRAPER GASKET	-	2	Enquire
4	387700051	Complete L.H. Device For Glass Lift	387700051 Complete L.H. Device For Glass Lift	-	1	Enquire
4	387700050	Complete R.H. Device For Glass Lift	387700050 Complete R.H. Device For Glass Lift	-	1	Enquire
5	388300805	BUTTON	388300805 BUTTON	-	6	Enquire
6	14039614	NUT	14039614 NUT	-	4	Enquire
7	16132324	SCREW	16132324 SCREW	-	6	Enquire
8	14498801	Washer	14498801 Washer	-	6	Enquire
9	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
10	13271617	SCREW	13271617 SCREW	-	1	Enquire
11	135900043	WASHER	135900043 WASHER	-	1	Enquire
12	384500442	RIVET	384500442 RIVET	-	18	Enquire
13	384500441	UNDERDOOR GASKET	384500441 UNDERDOOR GASKET	-	2	Enquire
14	136110110	WASHER	136110110 WASHER	-	2	Enquire
15	312520511	GASKET	312520511 GASKET	-	2	Enquire
16	980001800	Micro-Switch	980001800 Micro-Switch	-	2	Enquire
