BONNET AND ENGINE COMPARTMENT COVERS of Maserati Maserati 3200 GT / Assetto Corsa

View All

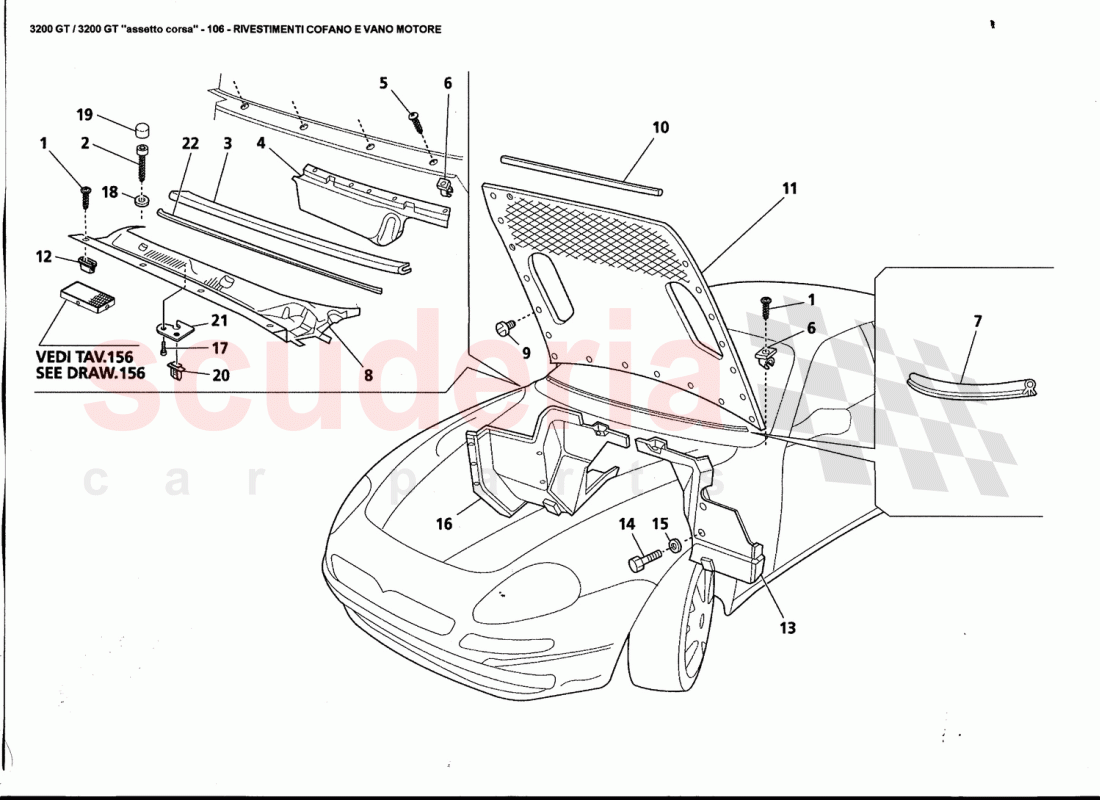

Maserati 3200 GT / Assetto Corsa - BONNET AND ENGINE COMPARTMENT COVERS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	15783377	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15842901	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386110471	WATER SEAL	Enquire	To Order
	386100471	WATER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386110470	AIR VENT WATER SHIELD	Enquire	To Order
	386100480	AIR VENT WATER SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15963277	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14215480	BLOCK FOR SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	384300410	BONNET SEAL STRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386110130	WINDSCREEN PLATE ASSY	Enquire	To Order
	386100130	WINDSCREEN PLATE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7560860	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	384300171	DUST SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	384300362	BONNET SOUNDPROOF COVERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67611500	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386100373	HEAT GUARD ON LH CATALYST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13283217	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386110374	HEAT GUARD ON RH CATALYST	Enquire	To Order
	386100374	HEAT GUARD ON RH CATALYST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642878	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386100515	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60594191	RETAINING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386100335	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386100371	PLATE GASKET UNDER WINDSCREEN.	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	15783377	SCREW	15783377 SCREW	-	6	Enquire
2	15842901	SCREW	15842901 SCREW	-	2	Enquire
3	386110471	WATER SEAL	386110471 WATER SEAL Only GD	-	1	Enquire
3	386100471	WATER SEAL	386100471 WATER SEAL Only GS	-	1	Enquire
4	386110470	AIR VENT WATER SHIELD	386110470 AIR VENT WATER SHIELD Only GD	-	1	Enquire
4	386100480	AIR VENT WATER SHIELD	386100480 AIR VENT WATER SHIELD Only GS	-	1	Enquire
5	15963277	SCREW	15963277 SCREW	-	4	Enquire
6	14215480	BLOCK FOR SCREW	14215480 BLOCK FOR SCREW	-	6	Enquire
7	384300410	BONNET SEAL STRIP	384300410 BONNET SEAL STRIP	-	1	Enquire
8	386110130	WINDSCREEN PLATE ASSY	386110130 WINDSCREEN PLATE ASSY Only GD	-	1	Enquire
8	386100130	WINDSCREEN PLATE ASSY	386100130 WINDSCREEN PLATE ASSY Only GS	-	1	Enquire
9	7560860	FASTENER BUTTON	7560860 FASTENER BUTTON	-	24	Enquire
10	384300171	DUST SEAL	384300171 DUST SEAL	-	1	Enquire
11	384300362	BONNET SOUNDPROOF COVERING	384300362 BONNET SOUNDPROOF COVERING	-	1	Enquire
12	67611500	BLOCK	67611500 BLOCK	-	4	Enquire
13	386100373	HEAT GUARD ON LH CATALYST	386100373 HEAT GUARD ON LH CATALYST	-	1	Enquire
14	13283217	SCREW	13283217 SCREW	-	12	Enquire
15	12638124	WASHER	12638124 WASHER	-	12	Enquire
16	386110374	HEAT GUARD ON RH CATALYST	386110374 HEAT GUARD ON RH CATALYST Only GD	-	1	Enquire
16	386100374	HEAT GUARD ON RH CATALYST	386100374 HEAT GUARD ON RH CATALYST Only GS / Not for GOL	-	1	Enquire
17	13273977	SCREW	13273977 SCREW	-	10	Enquire
18	12642878	WASHER	12642878 WASHER	-	2	Enquire
19	386100515	CAP	386100515 CAP	-	2	Enquire
20	60594191	RETAINING CLIP	60594191 RETAINING CLIP	-	5	Enquire
21	386100335	BRACKET	386100335 BRACKET	-	5	Enquire
22	386100371	PLATE GASKET UNDER WINDSCREEN.	386100371 PLATE GASKET UNDER WINDSCREEN.	-	1	Enquire
