REAR VIEW MIRRIRS of Maserati Maserati 3200 GT / Assetto Corsa

View All

Maserati 3200 GT / Assetto Corsa - REAR VIEW MIRRIRS

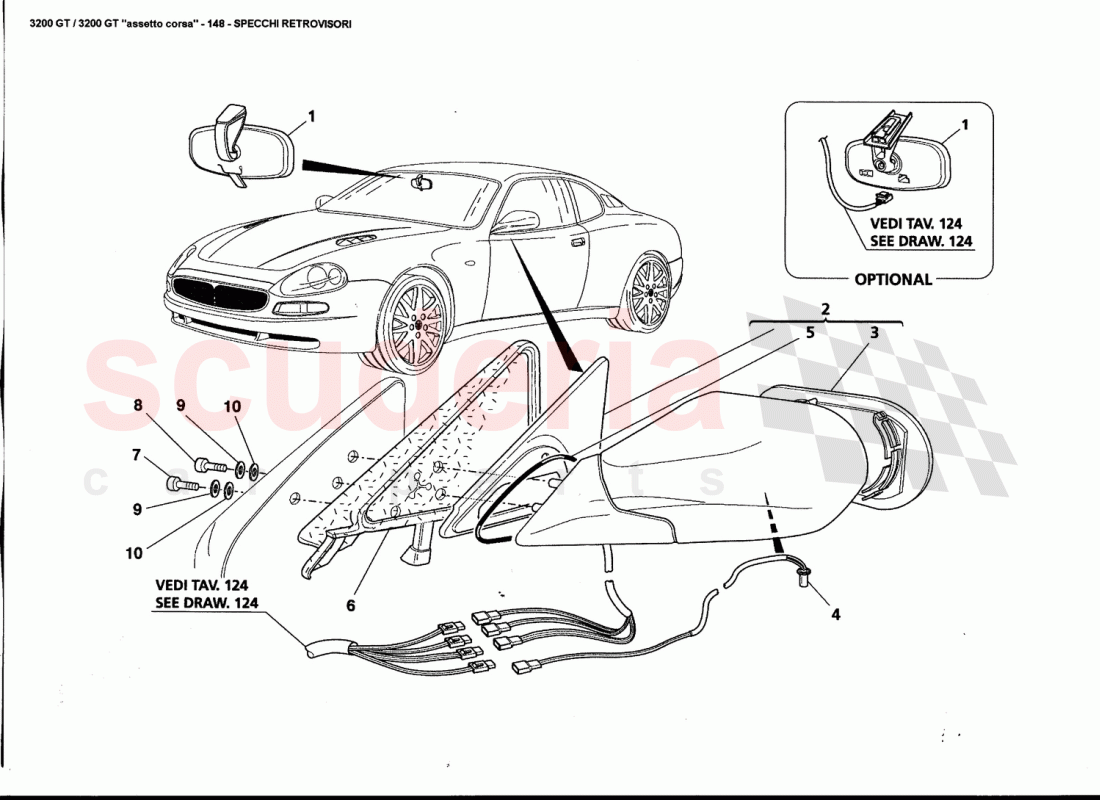

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	388100145	INT.REAR VIEW MIRROR	Enquire	To Order
	388100129	INT.REAR VIEW MIRROR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980050926	LH WING MIRROR ASSY	Enquire	To Order
	980000926	RH WING MIRROR ASSY	Enquire	To Order
	980000924	RH WING MIRROR ASSY	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	980000945	GLASS FOR L.H. MIRROR	Enquire	To Order
	980000947	GLASS FOR L.H. MIRROR	Enquire	To Order
	980000946	GLASS FOR R.H. MIRROR	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	980000961	DRIVER SIDE OUTSIDE TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000949	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69464000	R.H. MIRROR GASKET	Enquire	To Order
	69464100	L.H. MIRROR GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233600	SCREWM6X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186196	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135100064	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386100666	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	388100145	INT.REAR VIEW MIRROR	388100145 INT.REAR VIEW MIRROR Optional	-	1	Enquire
1	388100129	INT.REAR VIEW MIRROR	388100129 INT.REAR VIEW MIRROR	-	1	Enquire
2	980050926	LH WING MIRROR ASSY	980050926 LH WING MIRROR ASSY Optional / Only for AUS	-	1	Enquire
2	980000926	RH WING MIRROR ASSY	980000926 RH WING MIRROR ASSY Only GD / Not for AUS	-	1	Enquire
2	980000924	RH WING MIRROR ASSY	980000924 RH WING MIRROR ASSY Only GS	-	1	Enquire
2	980000925	LH WING MIRROR ASSY	980000925 LH WING MIRROR ASSY Only GD	-	1	Enquire
2	980000923	LH WING MIRROR ASSY	980000923 LH WING MIRROR ASSY Only GS	-	1	Enquire
3	980000945	GLASS FOR L.H. MIRROR	980000945 GLASS FOR L.H. MIRROR Only GS	-	1	Enquire
3	980000947	GLASS FOR L.H. MIRROR	980000947 GLASS FOR L.H. MIRROR Only GD	-	1	Enquire
3	980000946	GLASS FOR R.H. MIRROR	980000946 GLASS FOR R.H. MIRROR Only GS	-	1	Enquire
3	980000948	GLASS FOR R.H. MIRROR	980000948 GLASS FOR R.H. MIRROR Only GD / No AUS	-	1	Enquire
3	980050948	GLASS FOR R.H. MIRROR	980050948 GLASS FOR R.H. MIRROR Only for AUS	-	1	Enquire
4	980000961	DRIVER SIDE OUTSIDE TEMPERATURE SENSOR	980000961 DRIVER SIDE OUTSIDE TEMPERATURE SENSOR	-	1	Enquire
5	980000949	O.R. GASKET	980000949 O.R. GASKET	-	2	Enquire
6	69464000	R.H. MIRROR GASKET	69464000 R.H. MIRROR GASKET	-	1	Enquire
6	69464100	L.H. MIRROR GASKET	69464100 L.H. MIRROR GASKET	-	1	Enquire
7	233600	SCREWM6X12	233600 SCREWM6X12	-	2	Enquire
8	186196	SCREW	186196 SCREW	-	4	Enquire
9	135100064	WASHER	135100064 WASHER	-	6	Enquire
10	386100666	WASHER	386100666 WASHER	-	6	Enquire
