FRONT SEATS: STANDARD VERSION of Maserati Maserati 3200 GT / Assetto Corsa

View All

Maserati 3200 GT / Assetto Corsa - FRONT SEATS: STANDARD VERSION

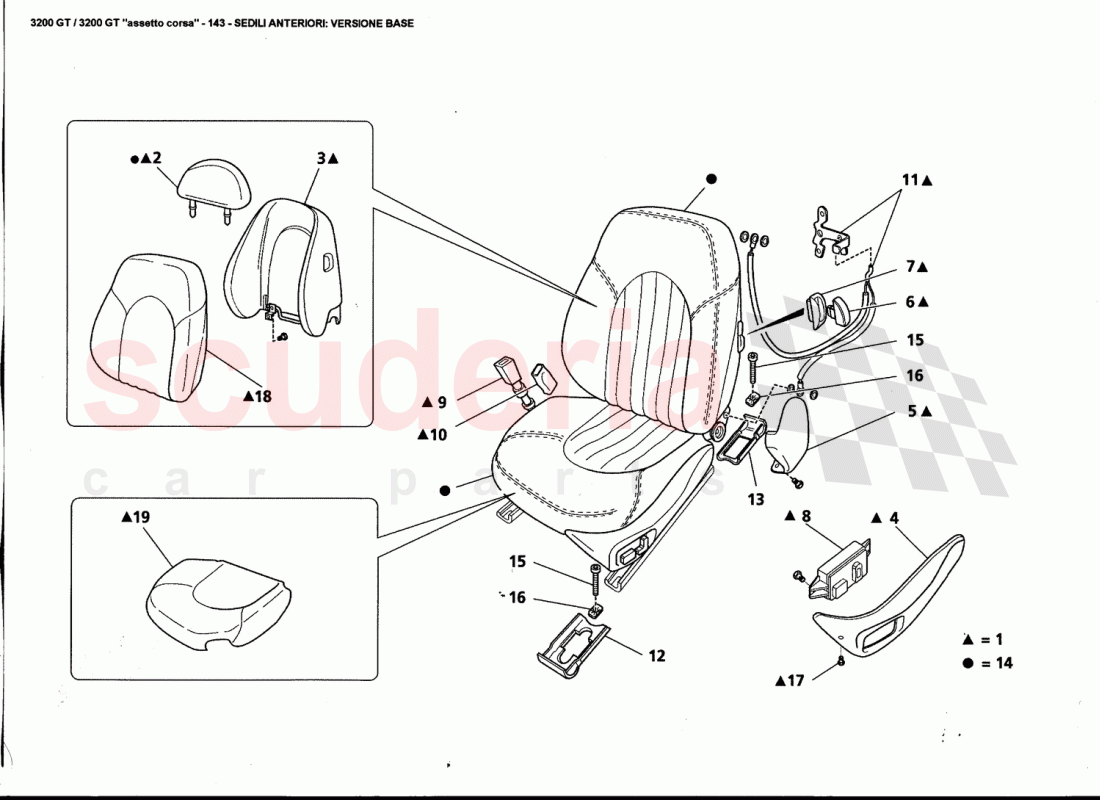

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66242600	FRONT LH SEAT ASSY INDY (BASE)	Enquire	To Order
	9810042	FRONT RH SEAT ASSY	Enquire	To Order
	66242300	FRONT RH SEAT ASSY INDY (BASE)	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9810045	FIXED FRONT HEADREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810047	FRONT LH SEAT REAR PANEL.	Enquire	To Order
	9810048	FRONT RH SEAT REAR PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810050	RH CASING.	Enquire	To Order
	9810049	LH CASING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810052	RH SEAT JOINT COVER	Enquire	To Order
	9810051	LH SEAT JOINT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900311	EASY-ENTRY CONTROL LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900312	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900224	R.H. SEAT MOVEMENT CONTROL JOISTICK	Enquire	To Order
	386900223	L.H. SEAT MOVEMENT CONTROL JOISTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388100336	PASSENGER SEAT BELT LOCK	Enquire	To Order
	388100337	PILOT SEAT BELT LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810046	BUCKLE BRANCH COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900110	EASY-ENTRY CONTROL CABLE + FASTENER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388100472	FRONT SHIELD FOR FRONT SEAT GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388100474	REAR SHIELD FOR FRONT SEAT GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810039	FRONT LH SEAT COVERS KIT	Enquire	To Order
	9810093	FRONT LH SEAT COVERS KIT	Enquire	To Order
	9810040	FRONT RH SEAT COVERS KIT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	376900302	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900302	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900405	NUT SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900500	BACK SEAT PADDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900501	LH. CUSHION PADDING	Enquire	To Order
	386900502	R.H. CUSHION PADDING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	66242600	FRONT LH SEAT ASSY INDY (BASE)	66242600 FRONT LH SEAT ASSY INDY (BASE) Optional / Only GS / In the order add the colors	-	1	Enquire
1	9810042	FRONT RH SEAT ASSY	9810042 FRONT RH SEAT ASSY Only GS / In the order, add the two digits of color code	-	1	Enquire
1	66242300	FRONT RH SEAT ASSY INDY (BASE)	66242300 FRONT RH SEAT ASSY INDY (BASE) Optional / Only GS / In the order add the colors	-	1	Enquire
1	9810043	FRONT LH SEAT ASSY	9810043 FRONT LH SEAT ASSY Only GD / In the order, add the two digits of color code	-	1	Enquire
1	66243400	FRONT LH SEAT ASSY INDY (BASE)	66243400 FRONT LH SEAT ASSY INDY (BASE) Optional / Only GD / In the order add the colors	-	1	Enquire
1	9810044	FRONT RH SEAT ASSY`-Only GD - In the order, add the two digits of colour code-	9810044 FRONT RH SEAT ASSY`-Only GD - In the order, add the two digits of colour code- Only GD / In the order, add the two digits of color code	-	1	Enquire
1	66243100	FRONT RH SEAT ASSY INDY (BASE)	66243100 FRONT RH SEAT ASSY INDY (BASE) Optional / Only GD / In the order add the colors	-	1	Enquire
1	9810041	FRONT LH SEAT ASSY	9810041 FRONT LH SEAT ASSY Only GS / In the order, add the two digits of color code	-	1	Enquire
2	9810045	FIXED FRONT HEADREST	9810045 FIXED FRONT HEADREST In the order, add the two digits of color code	-	2	Enquire
3	9810047	FRONT LH SEAT REAR PANEL.	9810047 FRONT LH SEAT REAR PANEL. In the order, add the two digits of color code	-	1	Enquire
3	9810048	FRONT RH SEAT REAR PANEL	9810048 FRONT RH SEAT REAR PANEL In the order, add the two digits of color code	-	1	Enquire
4	9810050	RH CASING.	9810050 RH CASING. In the order, add the two digits of color code	-	1	Enquire
4	9810049	LH CASING	9810049 LH CASING In the order, add the two digits of color code	-	1	Enquire
5	9810052	RH SEAT JOINT COVER	9810052 RH SEAT JOINT COVER In the order, add the two digits of color code	-	1	Enquire
5	9810051	LH SEAT JOINT COVER	9810051 LH SEAT JOINT COVER In the order, add the two digits of color code	-	1	Enquire
6	386900311	EASY-ENTRY CONTROL LEVER	386900311 EASY-ENTRY CONTROL LEVER	-	2	Enquire
7	386900312	PLATE	386900312 PLATE	-	2	Enquire
8	386900224	R.H. SEAT MOVEMENT CONTROL JOISTICK	386900224 R.H. SEAT MOVEMENT CONTROL JOISTICK	-	1	Enquire
8	386900223	L.H. SEAT MOVEMENT CONTROL JOISTICK	386900223 L.H. SEAT MOVEMENT CONTROL JOISTICK	-	1	Enquire
9	388100336	PASSENGER SEAT BELT LOCK	388100336 PASSENGER SEAT BELT LOCK	-	1	Enquire
9	388100337	PILOT SEAT BELT LOCK	388100337 PILOT SEAT BELT LOCK	-	1	Enquire
10	9810046	BUCKLE BRANCH COVER	9810046 BUCKLE BRANCH COVER In the order, add the two digits of color code	-	2	Enquire
11	386900110	EASY-ENTRY CONTROL CABLE + FASTENER KIT	386900110 EASY-ENTRY CONTROL CABLE + FASTENER KIT	-	2	Enquire
12	388100472	FRONT SHIELD FOR FRONT SEAT GUIDE	388100472 FRONT SHIELD FOR FRONT SEAT GUIDE	-	4	Enquire
13	388100474	REAR SHIELD FOR FRONT SEAT GUIDE	388100474 REAR SHIELD FOR FRONT SEAT GUIDE	-	4	Enquire
14	9810039	FRONT LH SEAT COVERS KIT	9810039 FRONT LH SEAT COVERS KIT In the order, add the two digits of color code / Valid till Ass. Nr. 2585	-	1	Enquire
14	9810093	FRONT LH SEAT COVERS KIT	9810093 FRONT LH SEAT COVERS KIT In the order, add the two digits of color code / Valid from Ass. Nr. 2586	-	1	Enquire
14	9810040	FRONT RH SEAT COVERS KIT	9810040 FRONT RH SEAT COVERS KIT In the order, add the two digits of color code / Valid till Ass. Nr. 2585	-	1	Enquire
14	9810094	FRONT RH SEAT COVERS KIT	9810094 FRONT RH SEAT COVERS KIT In the order, add the two digits of color code / Valid from Ass. Nr. 2586	-	1	Enquire
15	376900302	SCREW	376900302 SCREW	-	8	Enquire
16	386900302	PLATE	386900302 PLATE	-	8	Enquire
17	386900405	NUT SCREW	386900405 NUT SCREW	-	2	Enquire
18	386900500	BACK SEAT PADDING	386900500 BACK SEAT PADDING	-	2	Enquire
19	386900501	LH. CUSHION PADDING	386900501 LH. CUSHION PADDING	-	1	Enquire
19	386900502	R.H. CUSHION PADDING	386900502 R.H. CUSHION PADDING	-	1	Enquire
