Name: FRONT SUBFRAME: STEERING BOX FASTENING
Rating: 4.7 (1 reviews)

FRONT SUBFRAME: STEERING BOX FASTENING of Maserati Maserati 3200 GT / Assetto Corsa

View All

Maserati 3200 GT / Assetto Corsa - FRONT SUBFRAME: STEERING BOX FASTENING

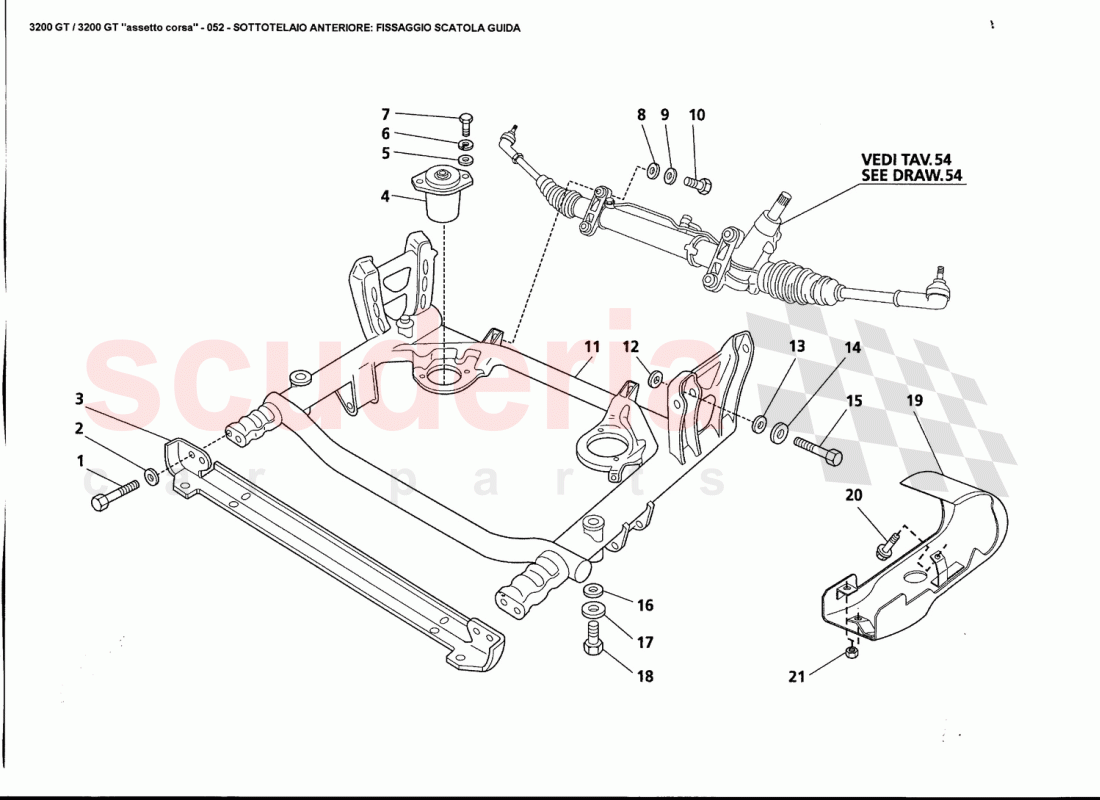

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11343821	Hex Head Bolt M10 x 1.25	$14.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHERD.10.5-20X2.3	$2.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	382700148	CROSS MEMBER	$564.51	To Order
	382700148	CROSS MEMBER	$564.51	To Order

Photo	Part No	Description	Price (each)	Stock
	394250100	ENGINE FLEXIBLE SUPPORT	$795.14	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	Wavy Washer 10mm	$1.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10732501	BLANK WASHER	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	15970921	SCREW	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	12641024	WASHER	$3.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHERD.10.5-20X2.3	$2.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11343821	Hex Head Bolt M10 x 1.25	$14.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	382700102	FRONT UNDERBODY	$8,243.53	To Order

Photo	Part No	Description	Price (each)	Stock
	382700420	SHIM PLATE TH.1	$3.57	To Order
	382705420	SHIM PLATE TH.0,5	$3.57	To Order
	382700421	SHIM PLATE TH.1,5	$4.26	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock

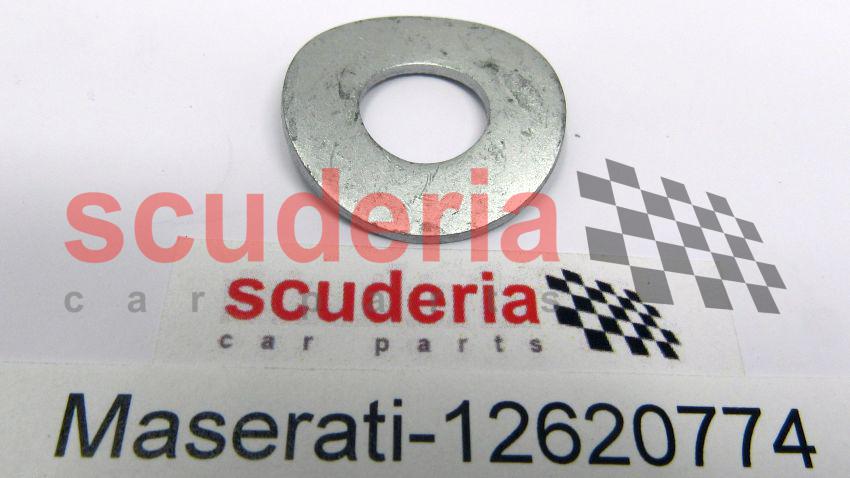

	12620774	WASHER	$2.56	To Order

Photo	Part No	Description	Price (each)	Stock
	12626224	WASHER	$2.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11306934	SCREW	$4.55	To Order

Photo	Part No	Description	Price (each)	Stock
	10732501	BLANK WASHER	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	10569579	RETAINING WASHER	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	14422521	SCREW	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	386110025	STEERING BOX SHIELD	$221.81	To Order
	386100025	STEERING BOX SHIELD	$233.50	To Order

Photo	Part No	Description	Price (each)	Stock
	11730624	SCREW	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	NUT	$2.00	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	11343821	Hex Head Bolt M10 x 1.25 IN STOCK	11343821 Hex Head Bolt M10 x 1.25 IN STOCK	$14.45	4
2	11190574	WASHERD.10.5-20X2.3 IN STOCK	11190574 WASHERD.10.5-20X2.3 IN STOCK	$2.00	4
3	382700148	CROSS MEMBER	382700148 CROSS MEMBER Post-modification: From assy 1576	$564.51	1
3	382700148	CROSS MEMBER	382700148 CROSS MEMBER Pre-modification: Up to assy 1575	$564.51	1
4	394250100	ENGINE FLEXIBLE SUPPORT	394250100 ENGINE FLEXIBLE SUPPORT	$795.14	2
5	12601474	Wavy Washer 10mm IN STOCK	12601474 Wavy Washer 10mm IN STOCK	$1.63	4
6	10732501	BLANK WASHER	10732501 BLANK WASHER	$2.00	4
7	15970921	SCREW	15970921 SCREW	$2.42	4
8	12641024	WASHER IN STOCK	12641024 WASHER IN STOCK	$3.43	4
9	11190574	WASHERD.10.5-20X2.3 IN STOCK	11190574 WASHERD.10.5-20X2.3 IN STOCK	$2.00	4
10	11343821	Hex Head Bolt M10 x 1.25 IN STOCK	11343821 Hex Head Bolt M10 x 1.25 IN STOCK	$14.45	4
11	382700102	FRONT UNDERBODY	382700102 FRONT UNDERBODY	$8,243.53	1
12	382700420	SHIM PLATE TH.1	382700420 SHIM PLATE TH.1 According to necessity / Valid till Ass.Nr.3294-	$3.57	-
12	382705420	SHIM PLATE TH.0,5	382705420 SHIM PLATE TH.0,5 According to necessity / Valid from Ass.Nr.3295-	$3.57	-
12	382700421	SHIM PLATE TH.1,5	382700421 SHIM PLATE TH.1,5 According to necessity / Valid till Ass.Nr.3294	$4.26	-
12	382705421	SHIM PLATE TH.1	382705421 SHIM PLATE TH.1 According to necessity / Valid from Ass.Nr.3295	$4.26	-
12	382700422	SHIM PLATE TH.2	382700422 SHIM PLATE TH.2 According to necessity / Valid till Ass.Nr.3294	$13.25	-
12	382705422	SHIM PLATE TH.2	382705422 SHIM PLATE TH.2 According to necessity / Valid from Ass.Nr.3295	$13.25	-
13	12620774	WASHER	12620774 WASHER	$2.56	4
14	12626224	WASHER IN STOCK	12626224 WASHER IN STOCK	$2.56	4
15	11306934	SCREW	11306934 SCREW	$4.55	4
16	10732501	BLANK WASHER	10732501 BLANK WASHER	$2.00	4
17	10569579	RETAINING WASHER	10569579 RETAINING WASHER	$2.00	4
18	14422521	SCREW	14422521 SCREW	$2.84	4
19	386110025	STEERING BOX SHIELD	386110025 STEERING BOX SHIELD Only RH guide	$221.81	1
19	386100025	STEERING BOX SHIELD	386100025 STEERING BOX SHIELD Only LH guide	$233.50	1
20	11730624	SCREW	11730624 SCREW	$2.84	1
21	12574521	NUT	12574521 NUT	$2.00	2

Front Subframe: Steering Box Fastening

Maserati 3200 GT / Assetto Corsa

Maserati 3200 GT / Assetto Corsa - FRONT SUBFRAME: STEERING BOX FASTENING
