INNER TRIMS: PARCEL SHELF of Maserati Maserati 3200 GT / Assetto Corsa

View All

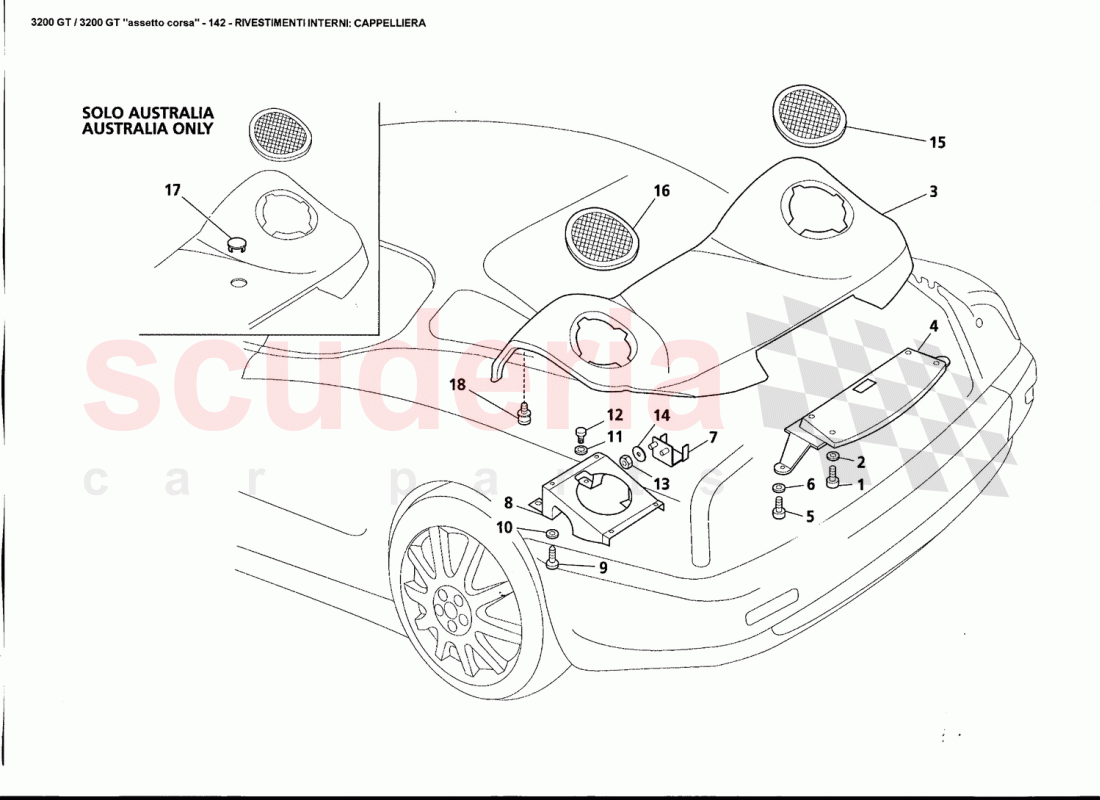

Maserati 3200 GT / Assetto Corsa - INNER TRIMS: PARCEL SHELF

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13273911	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810084	SHELF UNDER REAR WINDOW	Enquire	To Order
	9810087	SHELF UNDER REAR WINDOW IMITATION LEATHER	Enquire	To Order
	9810083	SHELF UNDER REAR WINDOW LEATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810085	SHELF REPL. ADD. BRAKE ASSY LEATHER	Enquire	To Order
	9810088	SHELF REPL. ADD. BRAKE ASSY IMITATION LEATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14071911	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12640621	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388300803	LIFT PREVENTION CENTRE BRACKET ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388300288	LOUD SPEAKER FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388300272	R.H. LOUD-SPEAKER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388300273	L.H. LOUD-SPEAKER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810086	SECURING BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11730624	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	13273911	SCREW	13273911 SCREW	-	5	Enquire
2	12638124	WASHER	12638124 WASHER	-	5	Enquire
3	9810084	SHELF UNDER REAR WINDOW	9810084 SHELF UNDER REAR WINDOW Only for AUS / In the order, add the two digits of color code	-	1	Enquire
3	9810087	SHELF UNDER REAR WINDOW IMITATION LEATHER	9810087 SHELF UNDER REAR WINDOW IMITATION LEATHER Not for AUS / In the order, add the two digits of color code	-	1	Enquire
3	9810083	SHELF UNDER REAR WINDOW LEATHER	9810083 SHELF UNDER REAR WINDOW LEATHER Not for AUS / In the order, add the two digits of color code	-	1	Enquire
4	9810085	SHELF REPL. ADD. BRAKE ASSY LEATHER	9810085 SHELF REPL. ADD. BRAKE ASSY LEATHER In the order, add the two digits of color code	-	1	Enquire
4	9810088	SHELF REPL. ADD. BRAKE ASSY IMITATION LEATHER	9810088 SHELF REPL. ADD. BRAKE ASSY IMITATION LEATHER In the order, add the two digits of color code	-	1	Enquire
5	14071911	SCREW	14071911 SCREW	-	2	Enquire
6	12640621	WASHER	12640621 WASHER	-	2	Enquire
7	388300803	LIFT PREVENTION CENTRE BRACKET ASSY	388300803 LIFT PREVENTION CENTRE BRACKET ASSY	-	1	Enquire
8	388300288	LOUD SPEAKER FIXING BRACKET	388300288 LOUD SPEAKER FIXING BRACKET	-	2	Enquire
9	13273824	SCREW	13273824 SCREW	-	8	Enquire
10	12604178	WASHER	12604178 WASHER	-	8	Enquire
11	12643724	Washer 6.15-18x1.5	12643724 Washer 6.15-18x1.5	-	8	Enquire
12	10977524	SCREW	10977524 SCREW	-	8	Enquire
13	14039614	NUT	14039614 NUT	-	2	Enquire
14	12643724	Washer 6.15-18x1.5	12643724 Washer 6.15-18x1.5	-	2	Enquire
15	388300272	R.H. LOUD-SPEAKER PLATE	388300272 R.H. LOUD-SPEAKER PLATE	-	1	Enquire
16	388300273	L.H. LOUD-SPEAKER PLATE	388300273 L.H. LOUD-SPEAKER PLATE	-	1	Enquire
17	9810086	SECURING BUTTON	9810086 SECURING BUTTON Only for AUS / In the order, add the two digits of color code	-	2	Enquire
18	11730624	SCREW	11730624 SCREW	-	4	Enquire
