FRONT SEATS: HEATING AND MEMORIES VERSION of Maserati Maserati 3200 GT / Assetto Corsa

View All

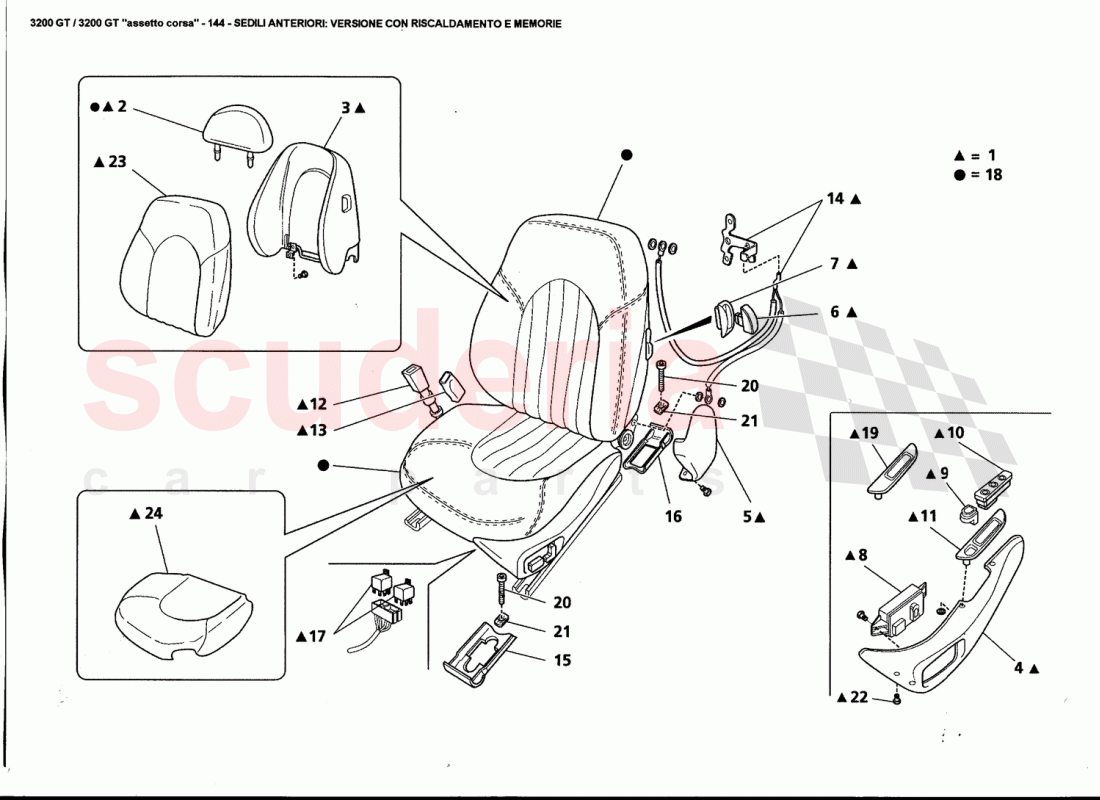

Maserati 3200 GT / Assetto Corsa - FRONT SEATS: HEATING AND MEMORIES VERSION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66242700	FRONT LH SEAT ASSY INDY MEMO. + HEAT.)	Enquire	To Order
	9810054	FRONT RH SEAT ASSY MEMO. + HEAT.	Enquire	To Order
	66242400	FRONT RH SEAT ASSY INDY MEMO. + HEAT.)	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9810063	ADJUSTABLE FRONT HEADREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810047	FRONT LH SEAT REAR PANEL.	Enquire	To Order
	9810048	FRONT RH SEAT REAR PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810062	RH CASING	Enquire	To Order
	9810061	LH CASING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810052	RH SEAT JOINT COVER	Enquire	To Order
	9810051	LH SEAT JOINT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900311	EASY-ENTRY CONTROL LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900312	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900224	R.H. SEAT MOVEMENT CONTROL JOISTICK	Enquire	To Order
	386900223	L.H. SEAT MOVEMENT CONTROL JOISTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386901226	HEATHER CONTROL BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386901225	MEMORIER BUTTON PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386901321	LH PLATE MEMO. + HEAT.	Enquire	To Order
	386901322	RH PLATE MEMO. + HEAT.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388100336	PASSENGER SEAT BELT LOCK	Enquire	To Order
	388100337	PILOT SEAT BELT LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810046	BUCKLE BRANCH COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900110	EASY-ENTRY CONTROL CABLE + FASTENER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388100472	FRONT SHIELD FOR FRONT SEAT GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388100474	REAR SHIELD FOR FRONT SEAT GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386901500	RELAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810039	FRONT LH SEAT COVERS KIT	Enquire	To Order
	9810093	FRONT LH SEAT COVERS KIT	Enquire	To Order
	9810040	FRONT RH SEAT COVERS KIT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	386902322	RH PLATE MEMO.	Enquire	To Order
	386902321	LH PLATE MEMO.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	376900302	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900302	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900405	NUT SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900500	BACK SEAT PADDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900501	LH. CUSHION PADDING	Enquire	To Order
	386900502	R.H. CUSHION PADDING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	66242700	FRONT LH SEAT ASSY INDY MEMO. + HEAT.)	66242700 FRONT LH SEAT ASSY INDY MEMO. + HEAT.) Optional / Only GS / In the order add the colors	-	1	Enquire
1	9810054	FRONT RH SEAT ASSY MEMO. + HEAT.	9810054 FRONT RH SEAT ASSY MEMO. + HEAT. Only GS / In the order, add the two digits of color code	-	1	Enquire
1	66242400	FRONT RH SEAT ASSY INDY MEMO. + HEAT.)	66242400 FRONT RH SEAT ASSY INDY MEMO. + HEAT.) Optional / Only GS / In the order add the colors	-	1	Enquire
1	9810055	FRONT LH SEAT ASSY MEMO. + HEAT.	9810055 FRONT LH SEAT ASSY MEMO. + HEAT. Only GD / In the order, add the two digits of color code	-	1	Enquire
1	66243500	FRONT LH SEAT ASSY INDY MEMO. + HEAT.	66243500 FRONT LH SEAT ASSY INDY MEMO. + HEAT. Optional / Only GD / In the order add the colors	-	1	Enquire
1	9810056	FRONT RH SEAT ASSY MEMO. + HEAT.	9810056 FRONT RH SEAT ASSY MEMO. + HEAT. Only GD / In the order, add the two digits of color code	-	1	Enquire
1	66243200	FRONT RH SEAT ASSY INDY MEMO. + HEAT.	66243200 FRONT RH SEAT ASSY INDY MEMO. + HEAT. Optional / Only GD / In the order add the colors	-	1	Enquire
1	9810057	FRONT LH SEAT ASSY MEMO.	9810057 FRONT LH SEAT ASSY MEMO. Only GS / In the order, add the two digits of color code	-	1	Enquire
1	66242800	FRONT LH SEAT ASSY INDY MEMO.	66242800 FRONT LH SEAT ASSY INDY MEMO. Optional / Only GS / In the order add the colors	-	1	Enquire
1	9810058	FRONT RH SEAT ASSY MEMO.	9810058 FRONT RH SEAT ASSY MEMO. Only GS / In the order, add the two digits of color code	-	1	Enquire
1	66242500	FRONT RH SEAT ASSY INDY MEMO.	66242500 FRONT RH SEAT ASSY INDY MEMO. Optional / Only GS / In the order add the colors	-	1	Enquire
1	9810059	FRONT LH SEAT ASSY MEMO.	9810059 FRONT LH SEAT ASSY MEMO. Only GD / In the order, add the two digits of color code	-	1	Enquire
1	66243600	FRONT LH SEAT ASSY INDY MEMO.	66243600 FRONT LH SEAT ASSY INDY MEMO. Optional / Only GD / In the order add the colors	-	1	Enquire
1	9810060	FRONT RH SEAT ASSY MEMO.	9810060 FRONT RH SEAT ASSY MEMO. Only GD / In the order, add the two digits of color code	-	1	Enquire
1	66243300	FRONT RH SEAT ASSY INDY MEMO.	66243300 FRONT RH SEAT ASSY INDY MEMO. Optional / Only GD / In the order add the colors	-	1	Enquire
1	9810053	FRONT LH SEAT ASSY MEMO. + HEAT.	9810053 FRONT LH SEAT ASSY MEMO. + HEAT. Only GS / In the order, add the two digits of color code	-	1	Enquire
2	9810063	ADJUSTABLE FRONT HEADREST	9810063 ADJUSTABLE FRONT HEADREST In the order, add the two digits of color code	-	2	Enquire
3	9810047	FRONT LH SEAT REAR PANEL.	9810047 FRONT LH SEAT REAR PANEL. In the order, add the two digits of color code	-	1	Enquire
3	9810048	FRONT RH SEAT REAR PANEL	9810048 FRONT RH SEAT REAR PANEL In the order, add the two digits of color code	-	1	Enquire
4	9810062	RH CASING	9810062 RH CASING In the order, add the two digits of color code	-	1	Enquire
4	9810061	LH CASING	9810061 LH CASING In the order, add the two digits of color code	-	1	Enquire
5	9810052	RH SEAT JOINT COVER	9810052 RH SEAT JOINT COVER In the order, add the two digits of color code	-	1	Enquire
5	9810051	LH SEAT JOINT COVER	9810051 LH SEAT JOINT COVER In the order, add the two digits of color code	-	1	Enquire
6	386900311	EASY-ENTRY CONTROL LEVER	386900311 EASY-ENTRY CONTROL LEVER	-	2	Enquire
7	386900312	PLATE	386900312 PLATE	-	2	Enquire
8	386900224	R.H. SEAT MOVEMENT CONTROL JOISTICK	386900224 R.H. SEAT MOVEMENT CONTROL JOISTICK	-	1	Enquire
8	386900223	L.H. SEAT MOVEMENT CONTROL JOISTICK	386900223 L.H. SEAT MOVEMENT CONTROL JOISTICK	-	1	Enquire
9	386901226	HEATHER CONTROL BUTTON	386901226 HEATHER CONTROL BUTTON	-	2	Enquire
10	386901225	MEMORIER BUTTON PANEL	386901225 MEMORIER BUTTON PANEL	-	2	Enquire
11	386901321	LH PLATE MEMO. + HEAT.	386901321 LH PLATE MEMO. + HEAT.	-	1	Enquire
11	386901322	RH PLATE MEMO. + HEAT.	386901322 RH PLATE MEMO. + HEAT.	-	1	Enquire
12	388100336	PASSENGER SEAT BELT LOCK	388100336 PASSENGER SEAT BELT LOCK	-	1	Enquire
12	388100337	PILOT SEAT BELT LOCK	388100337 PILOT SEAT BELT LOCK	-	1	Enquire
13	9810046	BUCKLE BRANCH COVER	9810046 BUCKLE BRANCH COVER In the order, add the two digits of color code	-	2	Enquire
14	386900110	EASY-ENTRY CONTROL CABLE + FASTENER KIT	386900110 EASY-ENTRY CONTROL CABLE + FASTENER KIT	-	2	Enquire
15	388100472	FRONT SHIELD FOR FRONT SEAT GUIDE	388100472 FRONT SHIELD FOR FRONT SEAT GUIDE	-	4	Enquire
16	388100474	REAR SHIELD FOR FRONT SEAT GUIDE	388100474 REAR SHIELD FOR FRONT SEAT GUIDE	-	4	Enquire
17	386901500	RELAY	386901500 RELAY	-	4	Enquire
18	9810039	FRONT LH SEAT COVERS KIT	9810039 FRONT LH SEAT COVERS KIT In the order, add the two digits of color code / Valid till Ass. Nr. 2585	-	1	Enquire
18	9810093	FRONT LH SEAT COVERS KIT	9810093 FRONT LH SEAT COVERS KIT In the order, add the two digits of color code / Valid from Ass. Nr. 2586	-	1	Enquire
18	9810040	FRONT RH SEAT COVERS KIT	9810040 FRONT RH SEAT COVERS KIT In the order, add the two digits of color code / Valid till Ass. Nr. 2585	-	1	Enquire
18	9810094	FRONT RH SEAT COVERS KIT	9810094 FRONT RH SEAT COVERS KIT In the order, add the two digits of color code / Valid from Ass. Nr. 2586	-	1	Enquire
19	386902322	RH PLATE MEMO.	386902322 RH PLATE MEMO.	-	1	Enquire
19	386902321	LH PLATE MEMO.	386902321 LH PLATE MEMO.	-	1	Enquire
20	376900302	SCREW	376900302 SCREW	-	8	Enquire
21	386900302	PLATE	386900302 PLATE	-	8	Enquire
22	386900405	NUT SCREW	386900405 NUT SCREW	-	2	Enquire
23	386900500	BACK SEAT PADDING	386900500 BACK SEAT PADDING	-	2	Enquire
24	386900501	LH. CUSHION PADDING	386900501 LH. CUSHION PADDING	-	1	Enquire
24	386900502	R.H. CUSHION PADDING	386900502 R.H. CUSHION PADDING	-	1	Enquire
