Lamborghini Murcielago LP670 - Tunnel

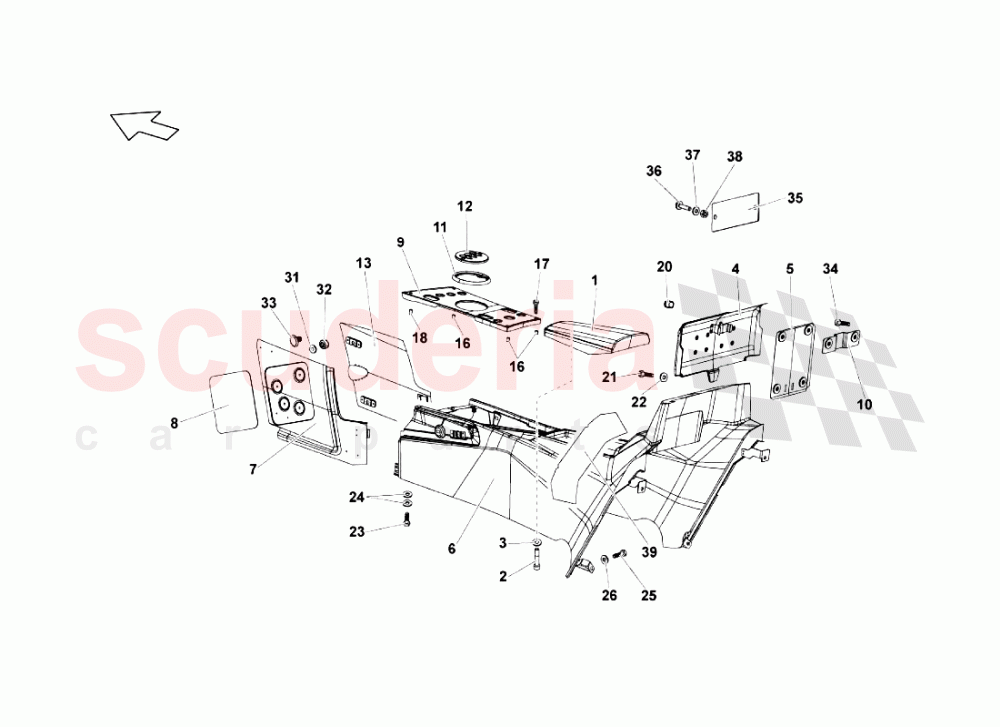

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	429864263	ARMREST CUSHION ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	429864263 ARMREST CUSHION ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
002	WHT003088	HEXAGON SOCKET FLAT HEAD BOLT	WHT003088 HEXAGON SOCKET FLAT HEAD BOLT	-	4	Enquire
003	N10663401	WASHER	N10663401 WASHER	-	4	Enquire
004	429858670	SAFETY BELT ROLLING UP DEVICE COVER ASSEMBLY (WITH 4 POINTS BELTS - SUPPLY VIN)	429858670 SAFETY BELT ROLLING UP DEVICE COVER ASSEMBLY (WITH 4 POINTS BELTS - SUPPLY VIN)	-	1	Enquire
004	418858670A	SAFETY BELT ROLLING UP DEVICE COVER ASSEMBLY (WITH 3 POINTS BELTS - SUPPLY VIN)	418858670A SAFETY BELT ROLLING UP DEVICE COVER ASSEMBLY (WITH 3 POINTS BELTS - SUPPLY VIN)	-	1	Enquire
005	410857350	SHEET	410857350 SHEET	-	1	Enquire
006	429863242B	TUNNEL COVER ASSEMBLY (WITH 3 POINTS BELTS)	429863242B TUNNEL COVER ASSEMBLY (WITH 3 POINTS BELTS)	-	1	Enquire
006	429863242C	TUNNEL COVER ASSEMBLY (WITH 4 POINTS BELTS)	429863242C TUNNEL COVER ASSEMBLY (WITH 4 POINTS BELTS)	-	1	Enquire
006	429863242G	TUNNEL COVER ASSEMBLY (WITH 4 POINTS BELTS - I-POD - USB)	429863242G TUNNEL COVER ASSEMBLY (WITH 4 POINTS BELTS - I-POD - USB)	-	1	Enquire
006	429863242F	TUNNEL COVER ASSEMBLY (WITH 3 POINTS BELTS - I-POD - USB)	429863242F TUNNEL COVER ASSEMBLY (WITH 3 POINTS BELTS - I-POD - USB)	-	1	Enquire
007	429863667	TUNNEL LEFT FRONT SIDE COVER ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	429863667 TUNNEL LEFT FRONT SIDE COVER ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
009	429863315B	ORNAMENT (MANUAL GEARBOX)	429863315B ORNAMENT (MANUAL GEARBOX)	-	1	Enquire
009	429863315C	ORNAMENT (E-GEAR)	429863315C ORNAMENT (E-GEAR)	-	1	Enquire
010	429857350	BRACKET (WITH 4 POINTS BELTS)	429857350 BRACKET (WITH 4 POINTS BELTS)	-	1	Enquire
011	410711139	FRAME (MANUAL GEARBOX)	410711139 FRAME (MANUAL GEARBOX)	-	1	Enquire
012	400713110D	SELECTOR (E-GEAR)	400713110D SELECTOR (E-GEAR)	-	1	Enquire
013	414863668B	TUNNEL RIGHT FRONT SIDE COVER ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	414863668B TUNNEL RIGHT FRONT SIDE COVER ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
016	429861864	SPACER 10MM	429861864 SPACER 10MM	-	3	Enquire
017	WHT004801	SCREW M4X22	WHT004801 SCREW M4X22	-	4	Enquire
018	429862525	SPACER 15MM	429862525 SPACER 15MM	-	1	Enquire
020	410919242	FRAME	410919242 FRAME	-	1	Enquire
021	WHT003114	SCREW	WHT003114 SCREW	-	1	Enquire
022	N90840802	WASHER	N90840802 WASHER	-	8	Enquire
023	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20	-	2	Enquire
024	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	-	4	Enquire
025	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20	-	4	Enquire
026	WHT002961	WASHER	WHT002961 WASHER	-	4	Enquire
031	N91109201	WASHER	N91109201 WASHER	-	4	Enquire
032	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT	-	4	Enquire
033	400863119	BUNGS	400863119 BUNGS	-	5	Enquire
034	N90166803	SCREW M8X28 (WITH 4 POINTS BELTS)	N90166803 SCREW M8X28 (WITH 4 POINTS BELTS)	-	2	Enquire
035	429010545	CAR NUMBER PLATE (SUPPLY VIN)	429010545 CAR NUMBER PLATE (SUPPLY VIN)	-	1	Enquire
036	WHT003067	SCREW M4X10 (CARBON INTERIOR)	WHT003067 SCREW M4X10 (CARBON INTERIOR)	-	2	Enquire
037	N1152221	WASHER	N1152221 WASHER	-	2	Enquire
038	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT	-	2	Enquire
039	429863145	LH PROTECTION (WITH 3 POINTS BELTS)	429863145 LH PROTECTION (WITH 3 POINTS BELTS)	-	1	Enquire
