Dashboard Instruments of Lamborghini Lamborghini Murcielago LP670

View All

Lamborghini Murcielago LP670 - Dashboard Instruments

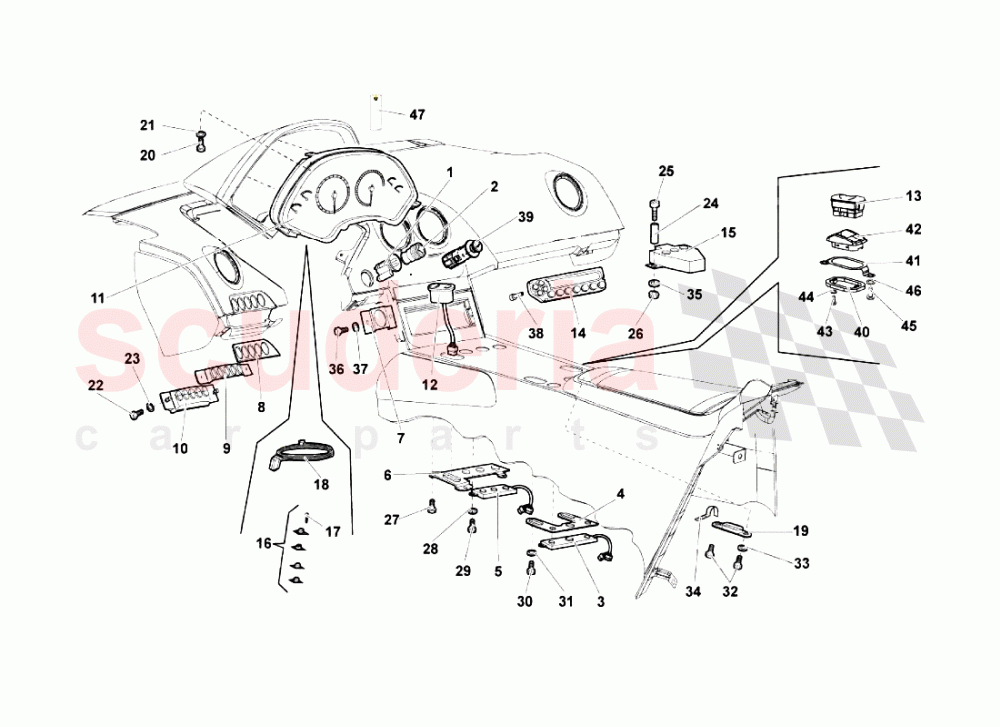

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410857529	RING	410857529 RING	$91.95	1
002	410919307	LIGHTER	410919307 LIGHTER	$63.17	1
003	418927127A	ANSOR KEYBOARD IN THE GEARBOX REAR SIDE	418927127A ANSOR KEYBOARD IN THE GEARBOX REAR SIDE	$3,393.83	1
004	418858092B	FRAME (MANUAL GEARBOX)	418858092B FRAME (MANUAL GEARBOX)	$650.55	1
005	414927143	ANSOR KEYBOARD IN THE GEARBOX FRONT SIDE	414927143 ANSOR KEYBOARD IN THE GEARBOX FRONT SIDE	$5,994.63	1
006	418858091A	FRAME	418858091A FRAME	$657.26	1
007	410858023	BRACKET	410858023 BRACKET	$66.15	1
008	414864147	FRAME	414864147 FRAME	$213.04	1
008	414863365A	FRAME (CARBON INTERIOR DARK - SUPPLY VIN)	414863365A FRAME (CARBON INTERIOR DARK - SUPPLY VIN)	$3,534.94	1
009	414864107	BRACKET	414864107 BRACKET	$494.63	1
010	414941567	ANSOR KEYBOARD IN THE DASHBOARD (MANUAL GEARBOX)	414941567 ANSOR KEYBOARD IN THE DASHBOARD (MANUAL GEARBOX)	$1,599.47	1
010	414941567A	ANSOR KEYBOARD IN THE DASHBOARD (E-GEAR)	414941567A ANSOR KEYBOARD IN THE DASHBOARD (E-GEAR)	$1,807.79	1
011	429920900A	INSTRUMENT PANEL ASSEMBLY (MANUAL GEARBOX - WARNING USE REF. 47)	429920900A INSTRUMENT PANEL ASSEMBLY (MANUAL GEARBOX - WARNING USE REF. 47)	$6,330.63	1
012	410959565A	SIDE VIEW MIRRORS SWITCH	410959565A SIDE VIEW MIRRORS SWITCH	$900.55	1
013	410919815A	RH/LH POWER WINDOW SWITCH	410919815A RH/LH POWER WINDOW SWITCH	$454.29	2
014	410820043B	DIAVIA A/C DASHBOARD ASSEMBLY	410820043B DIAVIA A/C DASHBOARD ASSEMBLY	$3,911.30	1
015	418919823A	E-GEAR CONTROL PANEL	418919823A E-GEAR CONTROL PANEL	$5,887.08	1
016	4109192250	BUTTON SET	4109192250 BUTTON SET	-	1	Enquire
017	WHT003297	SCREW 2.2X6.5	WHT003297 SCREW 2.2X6.5	$0.36 MSRP: ~~7.38~~ (95.1% off)	8
018	410971315B	HARNESS BUTTONS SET	410971315B HARNESS BUTTONS SET	$179.45	1
020	WHT003088	HEXAGON SOCKET FLAT HEAD BOLT	WHT003088 HEXAGON SOCKET FLAT HEAD BOLT	$0.48 MSRP: ~~7.33~~ (93.5% off)	2
020	N90455205	SCREW M4X10	N90455205 SCREW M4X10	$0.74 MSRP: ~~7.24~~ (89.8% off)	2
021	N1152221	WASHER	N1152221 WASHER	-	4	Enquire
022	N01020717	SCREW M5X12	N01020717 SCREW M5X12	$0.67 MSRP: ~~7.31~~ (90.8% off)	2
023	N91109201	WASHER	N91109201 WASHER	$1.55 MSRP: ~~5.85~~ (73.5% off)	2
024	410857441	SPACER	410857441 SPACER	$216.41	2
025	N91078401	SCREW	N91078401 SCREW	$16.25	2
026	WHT002953	NUT M6	WHT002953 NUT M6	$3.51	2
027	WHT003067	SCREW M4X10 (CARBON INTERIOR)	WHT003067 SCREW M4X10 (CARBON INTERIOR)	$3.30	4
028	N115359	WASHER	N115359 WASHER	-	4	Enquire
029	WHT003084	SCREW M3X12	WHT003084 SCREW M3X12	$11.77	4
030	WHT003110	SCREW M4X10	WHT003110 SCREW M4X10	$5.66	4
034	410864191	SUPPORT (E-GEAR)	410864191 SUPPORT (E-GEAR)	$54.59	2
035	WHT002961	WASHER	WHT002961 WASHER	$0.42	2
036	N10580702	SCREW	N10580702 SCREW	$5.94	2
037	N10612001	WASHER	N10612001 WASHER	$0.48	2
038	N10613301	SCREW M3X8	N10613301 SCREW M3X8	$0.58 MSRP: ~~7.32~~ (92.1% off)	2
039	7M3919311	OUTLET 12V (NON SMOKING VERSION)	7M3919311 OUTLET 12V (NON SMOKING VERSION)	$7.27	1
040	410858781	FRAME	410858781 FRAME	$821.24	2
041	410858092	SUPPORT (E-GEAR)	410858092 SUPPORT (E-GEAR)	$156.58	2
042	410858099A	FRAME (RH/LH POWER WINDOW SWITCH)	410858099A FRAME (RH/LH POWER WINDOW SWITCH)	$580.66	2
043	N10613301	SCREW M3X8	N10613301 SCREW M3X8	$0.58 MSRP: ~~7.32~~ (92.1% off)	4
044	N1152221	WASHER	N1152221 WASHER	-	4	Enquire
045	WHT003110	SCREW M4X10	WHT003110 SCREW M4X10	$5.66	4
046	N1152221	WASHER	N1152221 WASHER	-	4	Enquire
047	63000337	NAMEPLATE FOR A INSTRUMENT PANEL	63000337 NAMEPLATE FOR A INSTRUMENT PANEL	$4.06	1
