Passenger Compartment Trims 2

Lamborghini Murcielago LP670

Find Your Part

Lamborghini Murcielago LP670 - Passenger Compartment Trims 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

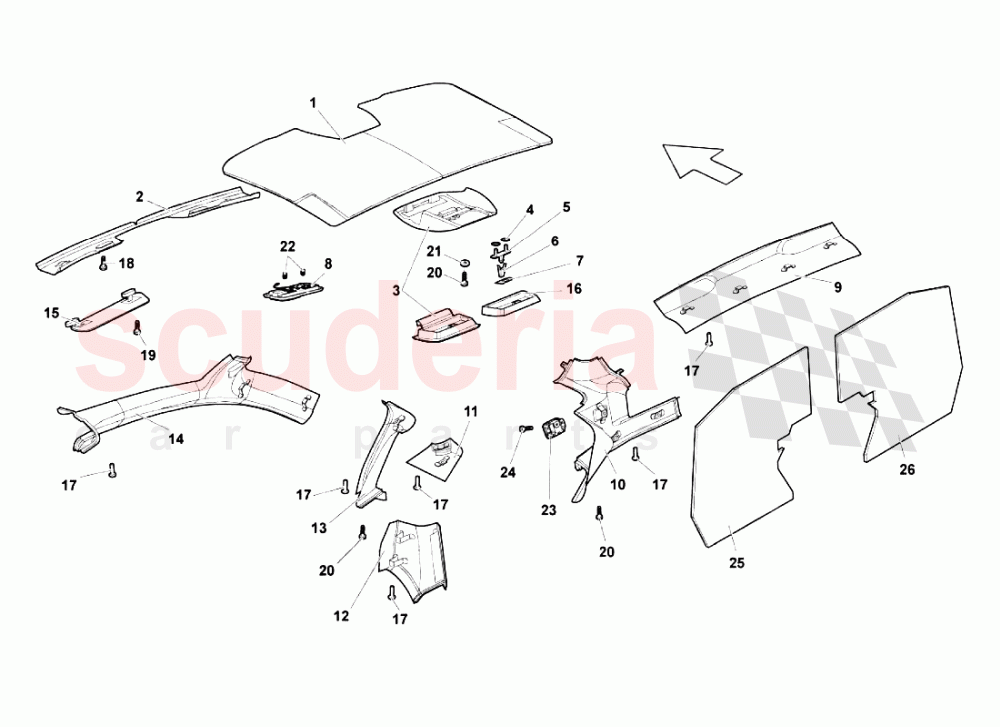

Passenger Compartment Trims 2 of Lamborghini Lamborghini Murcielago LP670 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 429867505
INSULATION (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
002 418868634A
WINDSHIELD CROSS MEMBER COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
003 418947099D
CEILING LIGHT GLASS BOX ASSEMBLY (ALCANTARA UPHOLSTERY - WITH PREDISPOSITION FOR BLUETOOTH - SUPPLY VIN) 		- 1 Enquire
004 N1508213
NUT M6 		- 2 Enquire
005 410867646A
JOURNAL 		- 1 Enquire
006 410867543A
HOOK MECHANISM 		- 1 Enquire
007 418868847
SPRING 		- 1 Enquire
008 410947103
ROOF LAMP 		- 1 Enquire
009 418867361A
REAR WINDOW UPPER COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
010 418868200A
RIGHT C-PILLAR COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
010 418868199A
LEFT C-PILLAR COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
011 418867032A
HIGH-MOUNT LIGHT RIGHT LOWER COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
011 418867031A
HIGH-MOUNT LIGHT LEFT LOWER COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
012 418867244A
RIGHT LOWER B-PILLAR COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
012 418867243A
LEFT LOWER B-PILLAR COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
013 418867282A
RIGHT UPPER B-PILLAR COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
013 418867281A
LEFT UPPER B-PILLAR COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
014 418867233B
LEFT A-PILLAR COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
014 418867234B
RIGHT A-PILLAR COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
015 418857551C
LEFT SUN VISOR ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
015 418857552C
RIGHT SUN VISOR ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
016 418868678A
GLASS BOX INTERIOR COMPARTMENT 		- 1 Enquire
017 410863988
PLUG 		- 34 Enquire
018 WHT003111
SCREW M5X16 		- 8 Enquire
019 WHT003088
HEXAGON SOCKET FLAT HEAD BOLT 		- 4 Enquire
020 N10648502
SCREW M5X10 		- 8 Enquire
021 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		- 2 Enquire
022 6337066
LAMP 		- 2 Enquire
023 4D0857635E
COAT HOOK 		- 2 Enquire
024 WHT001190
ROUND HD. SCREW 		- 4 Enquire
025 418863731D
LEFT REAR COVERING PANEL UNDER REAR WINDOW (WITH 3 POINTS BELTS - ALCANTARA UPHOLSTERY - 		- 1 Enquire
025 429863731
LEFT REAR COVERING PANEL UNDER REAR WINDOW (WITH 4 POINTS BELTS - ALCANTARA UPHOLSTERY - 		- 1 Enquire
026 429863732
RIGHT REAR COVERING PANEL UNDER REAR WINDOW (WITH 4 POINTS BELTS - ALCANTARA UPHOLSTERY - 		- 1 Enquire
026 418863732D
RIGHT REAR COVERING PANEL UNDER REAR WINDOW (WITH 3 POINTS BELTS - ALCANTARA UPHOLSTERY - 		- 1 Enquire
