Lamborghini Murcielago LP670 - Passenger Compartment Trims 1

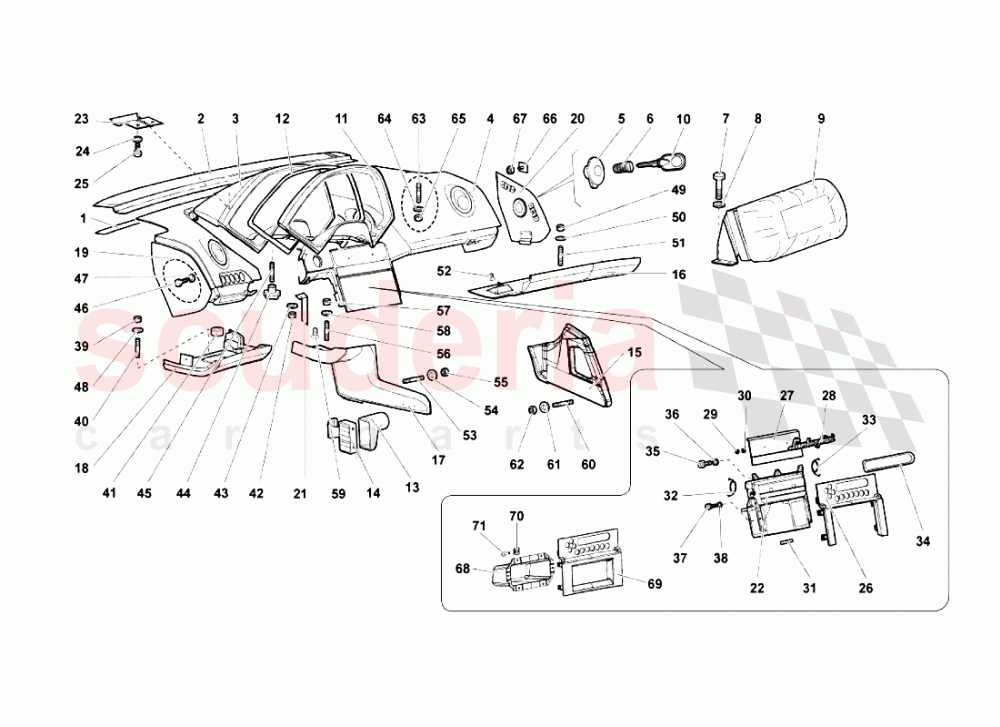

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410819018	SEALING TAPE	410819018 SEALING TAPE	-	3	Enquire
002	410858349A	UPPER FRONT DASHBOARD ASSEMBLY	410858349A UPPER FRONT DASHBOARD ASSEMBLY	-	1	Enquire
003	410858278A	DASHBOARD COVERING (ALCANTARA UPHOLSTERY - SUPPLY VIN)	410858278A DASHBOARD COVERING (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
004	414858451	DASHBOARD UPPER PART ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN)	414858451 DASHBOARD UPPER PART ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
005	410919237	AIRBAG SWITCH	410919237 AIRBAG SWITCH	-	1	Enquire
006	400919228B	AIRBAG BLOCK (INCLUDES 2 AIRBAG KEY)	400919228B AIRBAG BLOCK (INCLUDES 2 AIRBAG KEY)	-	1	Enquire
007	N90612002	SCREW M6X14	N90612002 SCREW M6X14	-	4	Enquire
008	WHT002963	WASHER	WHT002963 WASHER	-	4	Enquire
009	414880199	AIR BAG MODULE	414880199 AIR BAG MODULE	-	1	Enquire
011	410858277	FRAME	410858277 FRAME	-	1	Enquire
011	410858277A	FRAME (CARBON INTERIOR)	410858277A FRAME (CARBON INTERIOR)	-	1	Enquire
012	410858177	GASKET	410858177 GASKET	-	1	Enquire
013	410864255	OUTLET	410864255 OUTLET	-	1	Enquire
014	410864877	AIR PIPE UNION GRID, DRIVER@S SIDE	410864877 AIR PIPE UNION GRID, DRIVER@S SIDE	-	1	Enquire
015	429857927A	CAR HI-FI SYSTEM DASHBOARD LEFT HANDLE ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	429857927A CAR HI-FI SYSTEM DASHBOARD LEFT HANDLE ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
016	414857007B	LOWER LEFT DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	414857007B LOWER LEFT DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
017	414854689B	CAR HI-FI SYSTEM DASHBOARD RIGHT SIDE ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	414854689B CAR HI-FI SYSTEM DASHBOARD RIGHT SIDE ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
018	414857006B	LOWER RIGHT DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	414857006B LOWER RIGHT DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
019	414857086C	RIGHT SIDE COVER ASSEMBLY (CARBON INTERIOR DARK)	414857086C RIGHT SIDE COVER ASSEMBLY (CARBON INTERIOR DARK)	-	1	Enquire
020	414857085B	LEFT SIDE COVER ASSEMBLY (CARBON INTERIOR DARK)	414857085B LEFT SIDE COVER ASSEMBLY (CARBON INTERIOR DARK)	-	1	Enquire
021	410857320A	BRACKET	410857320A BRACKET	-	1	Enquire
022	410861941D	A/C PANEL ASSEMBLY	410861941D A/C PANEL ASSEMBLY	-	1	Enquire
023	410858573	BRACKET	410858573 BRACKET	-	1	Enquire
024	N1152221	WASHER	N1152221 WASHER	-	2	Enquire
025	N102018	SCREW M4X8	N102018 SCREW M4X8	-	2	Enquire
026	410035422N	FRAME (CARBON INTERIOR DARK)	410035422N FRAME (CARBON INTERIOR DARK)	-	1	Enquire
027	410864123A	LID (CARBON INTERIOR - SUPPLY VIN)	410864123A LID (CARBON INTERIOR - SUPPLY VIN)	-	1	Enquire
028	400853682A	LAMBORGHINI ORNAMENT	400853682A LAMBORGHINI ORNAMENT	-	1	Enquire
030	4T0853139	CLIP	4T0853139 CLIP	-	2	Enquire
031	443803389C	FELT	443803389C FELT	-	2	Enquire
032	410863431	LEFT SPRING	410863431 LEFT SPRING	-	1	Enquire
033	410863432	RIGHT SPRING	410863432 RIGHT SPRING	-	1	Enquire
034	410861719	FRAME	410861719 FRAME	-	1	Enquire
035	N10580702	SCREW	N10580702 SCREW	-	3	Enquire
036	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	-	3	Enquire
037	N90455205	SCREW M4X10	N90455205 SCREW M4X10	-	2	Enquire
038	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	-	2	Enquire
039	WHT003112	NUT M5	WHT003112 NUT M5	-	3	Enquire
040	WHT003116	STUD BOLT M5X25	WHT003116 STUD BOLT M5X25	-	1	Enquire
040	WHT003228	STUD BOLT M5X14	WHT003228 STUD BOLT M5X14	-	2	Enquire
041	400804347	SPACER	400804347 SPACER	-	1	Enquire
042	N1508213	NUT M6	N1508213 NUT M6	-	2	Enquire
043	WHT002961	WASHER	WHT002961 WASHER	-	2	Enquire
044	410858482	HANDLE	410858482 HANDLE	-	2	Enquire
045	WHT003228	STUD BOLT M5X14	WHT003228 STUD BOLT M5X14	-	2	Enquire
046	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20	-	2	Enquire
047	WHT002961	WASHER	WHT002961 WASHER	-	2	Enquire
048	N91109202	WASHER	N91109202 WASHER	-	3	Enquire
049	WHT003112	NUT M5	WHT003112 NUT M5	-	2	Enquire
050	N91109202	WASHER	N91109202 WASHER	-	2	Enquire
051	WHT003116	STUD BOLT M5X25	WHT003116 STUD BOLT M5X25	-	2	Enquire
052	400867299	FASTENER LYS FUSION, YELLOW	400867299 FASTENER LYS FUSION, YELLOW	-	2	Enquire
053	WHT003094	STUD BOLT M4X16	WHT003094 STUD BOLT M4X16	-	2	Enquire
054	N91109202	WASHER	N91109202 WASHER	-	2	Enquire
055	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT	-	2	Enquire
056	WHT003116	STUD BOLT M5X25	WHT003116 STUD BOLT M5X25	-	1	Enquire
057	WHT003112	NUT M5	WHT003112 NUT M5	-	1	Enquire
058	WHT002961	WASHER	WHT002961 WASHER	-	1	Enquire
059	410863988	PLUG	410863988 PLUG	-	1	Enquire
060	WHT003116	STUD BOLT M5X25	WHT003116 STUD BOLT M5X25	-	1	Enquire
060	WHT003228	STUD BOLT M5X14	WHT003228 STUD BOLT M5X14	-	2	Enquire
061	WHT002961	WASHER	WHT002961 WASHER	-	3	Enquire
062	WHT003112	NUT M5	WHT003112 NUT M5	-	3	Enquire
063	WHT003116	STUD BOLT M5X25	WHT003116 STUD BOLT M5X25	-	2	Enquire
064	WHT003093	Washer	WHT003093 Washer	-	2	Enquire
065	WHT003112	NUT M5	WHT003112 NUT M5	-	2	Enquire
066	410857879	BRACKET	410857879 BRACKET	-	2	Enquire
067	WHT003112	NUT M5	WHT003112 NUT M5	-	2	Enquire
068	429857232	GLOVE BOX	429857232 GLOVE BOX	-	1	Enquire
069	429035422	FRAME	429035422 FRAME	-	1	Enquire
070	N154523	CLIP ST4.2X13.00X11.00	N154523 CLIP ST4.2X13.00X11.00	-	6	Enquire
071	N902661	SCREW	N902661 SCREW	-	6	Enquire
