Lamborghini Murcielago - REAR SUSPENSION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

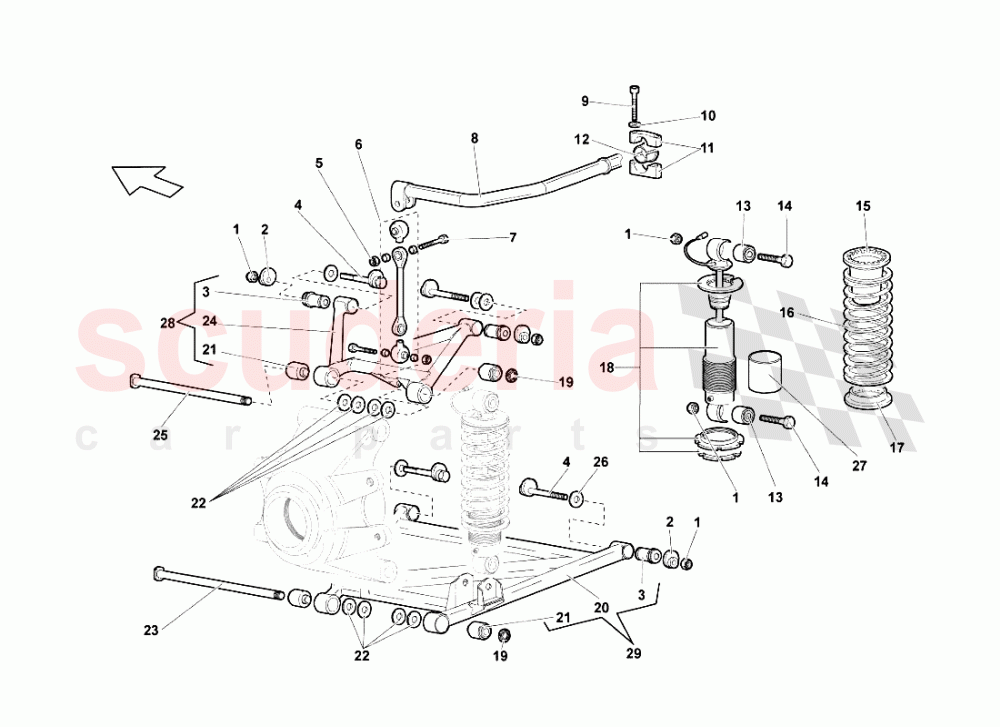

REAR SUSPENSION of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N10725301
NUT 12X1,25X14,8 		$1.10 (84.8% off) 8
002 410407127A
BOLT 		$2,318.56 8
004 410407127A
BOLT 		$2,318.56 8
005 8200804
NUT M8 		$1.16 (84.1% off) 4
006 410411317
CONNECTING ROD 		$438.19 2
007 N01034518
SCREW M8X45 		$6.00 4
008 410511409
STABILIZER BAR 		$1,350.80 1
009 WHT000923
SCREW M6X52 		$7.87 4
010 WHT001197A
WASHER 		$0.30 4
011 400411031D
U-BOLT 		$198.26 2
012 400511324C
BUSH 		$181.16 2
013 410512383
FLEXIBLE BUSHING 		$587.37 8
014 8101281
SCREW M12X70 		$17.47 8
015 410512108
PANEL 		$44.56 4
016 5133618
SPRING 		$199.13 (3.6% off) 4
017 410512385
RUBBER RING 		$53.43 4
018 410512031B
REAR ELECTRONICALLY-CONTROLLED SHOCK ABSORBER (FROM VIN 1547) 		$2,462.79 4
019 N10268603
NUT M14X1,5 		$6.61 4
022 400407742
2.0 MM SHIM 		$4.64 24
022 400407740
1.5 MM SHIM 		$4.06 24
022 400407749
0.5 MM SHIM 		$3.16 24
022 400407739
1.0 MM SHIM 		$3.55 24
023 410505110
JOURNAL 		$235.22 2
025 410505109
JOURNAL 		$236.38 2
026 410407295A
1.5 MM ADJUSTMENT SHIM 		$6.77 1
026 410407295B
2.0 MM ADJUSTMENT SHIM 		$6.66 1
026 410407295
1.0 MM ADJUSTMENT SHIM 		$4.52 1
026 410407295C
2.5 MM ADJUSTMENT SHIM 		$7.32 1
026 410407295D
WASHER 		$29.71 1
027 52010342
PROTECTION 		$16.09 (3.9% off) 1
028 410505323A
LH UPPER ARM (CERAMIC BRAKE) 		$3,991.93 1
028 410505323
LH UPPER ARM 		$3,844.08 1
028 410505324A
RH UPPER ARM (CERAMIC BRAKE) 		$3,790.30 1
028 410505324
RH UPPER ARM 		$3,844.08 1
029 410505312
RH LOWER ARM 		$3,709.67 1
029 410505311
LH LOWER ARM 		$3,709.67 1
