Lamborghini Murcielago - POWER STEERING

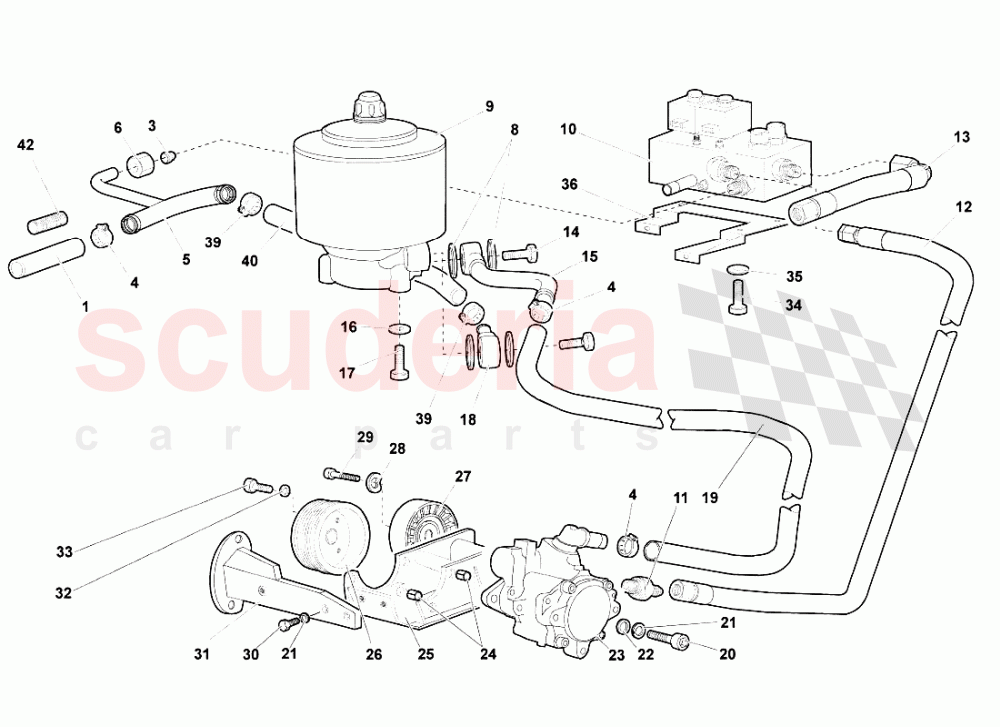

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410422890	PIPE	410422890 PIPE	-	1	Enquire
003	410616335	BUSH	410616335 BUSH	-	1	Enquire
004	N10418001	CLAMP	N10418001 CLAMP	-	3	Enquire
005	410422237A	PIPE	410422237A PIPE	-	1	Enquire
006	4036493	NUT	4036493 NUT	-	1	Enquire
008	400422383A	WASHER	400422383A WASHER	-	4	Enquire
009	410422373	TANK	410422373 TANK	-	1	Enquire
010	410412185D	JACKING SYSTEM CONTROL	410412185D JACKING SYSTEM CONTROL	-	1	Enquire
011	410422279	CONNECTOR	410422279 CONNECTOR	-	1	Enquire
012	410422893	HOSE	410422893 HOSE	-	1	Enquire
013	410422471	HOSE	410422471 HOSE	-	1	Enquire
014	400422269	SCREW WITH HOLE	400422269 SCREW WITH HOLE	-	1	Enquire
015	410422859B	CONNECTOR	410422859B CONNECTOR	-	1	Enquire
016	8410820	WASHER	8410820 WASHER	-	3	Enquire
017	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545)	-	3	Enquire
018	400422859A	CONNECTOR	400422859A CONNECTOR	-	1	Enquire
019	410422891	PIPE	410422891 PIPE	-	1	Enquire
020	8700810	SCREW	8700810 SCREW	-	6	Enquire
021	WHT001514	WASHER	WHT001514 WASHER	-	6	Enquire
022	WHT002961	WASHER	WHT002961 WASHER	-	6	Enquire
023	410145155	OIL PUMP	410145155 OIL PUMP	-	1	Enquire
024	410145219	BUSH	410145219 BUSH	-	2	Enquire
025	40013247	BRACKET	40013247 BRACKET	-	1	Enquire
026	410145255	PULLEY	410145255 PULLEY	-	1	Enquire
027	7M109564	PULLEY	7M109564 PULLEY	-	1	Enquire
028	WHT000768	WASHER	WHT000768 WASHER	-	1	Enquire
029	8701011	SCREW	8701011 SCREW	-	1	Enquire
030	8100821	SCREW	8100821 SCREW	-	2	Enquire
031	40009516	TIE ROD	40009516 TIE ROD	-	1	Enquire
032	WHT001514	WASHER	WHT001514 WASHER	-	3	Enquire
033	8100812	SCREW	8100812 SCREW	-	3	Enquire
034	8100613	SCREW	8100613 SCREW	-	3	Enquire
035	WHT002961	WASHER	WHT002961 WASHER	-	3	Enquire
036	410616143	BRACKET	410616143 BRACKET	-	1	Enquire
039	N10418001	CLAMP	N10418001 CLAMP	-	2	Enquire
040	413422898	PIPE	413422898 PIPE	-	1	Enquire
042	410201212	SPRIMG	410201212 SPRIMG	-	1	Enquire
