STEERING of Lamborghini Lamborghini Murcielago

View All

Lamborghini Murcielago - STEERING

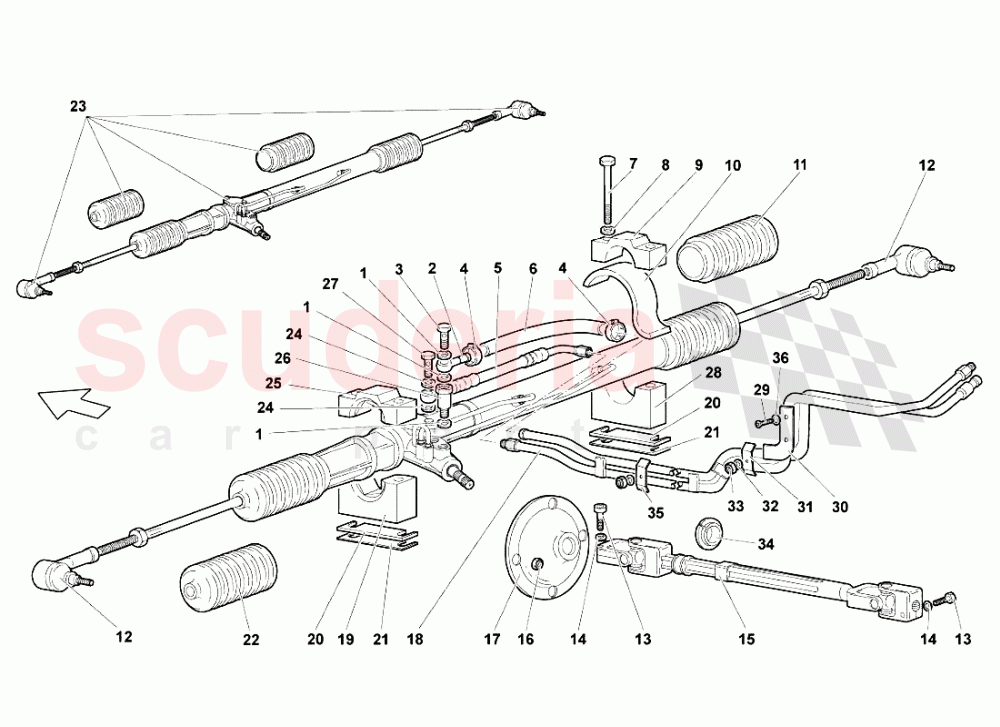

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N0138481	WASHER	N0138481 WASHER	-	3	Enquire
002	413422247A	CONNECTOR	413422247A CONNECTOR	-	1	Enquire
003	400422279A	SCREW WITH HOLE	400422279A SCREW WITH HOLE	-	1	Enquire
004	N0245097	CLAMP	N0245097 CLAMP	-	1	Enquire
005	413422895A	PIPE	413422895A PIPE	-	1	Enquire
006	413422898	PIPE	413422898 PIPE	-	1	Enquire
007	8101076	SCREW	8101076 SCREW	-	1	Enquire
008	N0122115	WASHER	N0122115 WASHER	-	1	Enquire
009	4333518	U-BOLT	4333518 U-BOLT	-	1	Enquire
010	400422850	RUBBER SHIM	400422850 RUBBER SHIM	-	1	Enquire
011	410419831	BOOT	410419831 BOOT	-	1	Enquire
012	400419811A	Ball Joint Coupling	400419811A Ball Joint Coupling	-	1	Enquire
013	8700843	SCREW	8700843 SCREW	-	1	Enquire
015	410419515	JOINTED SHAFT	410419515 JOINTED SHAFT	-	1	Enquire
016	N01100637	NUT M6	N01100637 NUT M6	-	1	Enquire
017	410422326	GASKET	410422326 GASKET	-	1	Enquire
018	413422867C	PIPE (E-GEAR)	413422867C PIPE (E-GEAR)	-	1	Enquire
018	413422867B	PIPE (MANUAL GEARBOX)	413422867B PIPE (MANUAL GEARBOX)	-	1	Enquire
019	4333656	SUPPORT	4333656 SUPPORT	-	1	Enquire
020	4333658	1.0 MM ADJUSTMENT SHIM	4333658 1.0 MM ADJUSTMENT SHIM	-	11	Enquire
021	4333657	0.5 MM ADJUSTMENT SHIM	4333657 0.5 MM ADJUSTMENT SHIM	-	1	Enquire
022	410419831	BOOT	410419831 BOOT	-	1	Enquire
023	413422061C	POWER STEERING RACK (LHD)	413422061C POWER STEERING RACK (LHD)	-	1	Enquire
024	N0138492	WASHER	N0138492 WASHER	-	1	Enquire
025	4331582	U-BOLT	4331582 U-BOLT	-	1	Enquire
026	410422293	CONNECTOR	410422293 CONNECTOR	-	1	Enquire
027	400422269A	SCREW WITH HOLE	400422269A SCREW WITH HOLE	-	1	Enquire
028	4333655	SUPPORT	4333655 SUPPORT	-	1	Enquire
029	8100505	SCREW	8100505 SCREW	-	2	Enquire
030	410422078	SHEET	410422078 SHEET	-	1	Enquire
031	410422477	PLATE	410422477 PLATE	-	1	Enquire
032	N10612001	WASHER	N10612001 WASHER	-	2	Enquire
033	N0211963	NUT	N0211963 NUT	-	2	Enquire
034	410419548	BUSHING	410419548 BUSHING	-	1	Enquire
035	410422479	PLATE	410422479 PLATE	-	1	Enquire
036	8400509	WASHER	8400509 WASHER	-	2	Enquire
