FRONT SUSPENSION

Find Your Part

Lamborghini Murcielago - FRONT SUSPENSION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

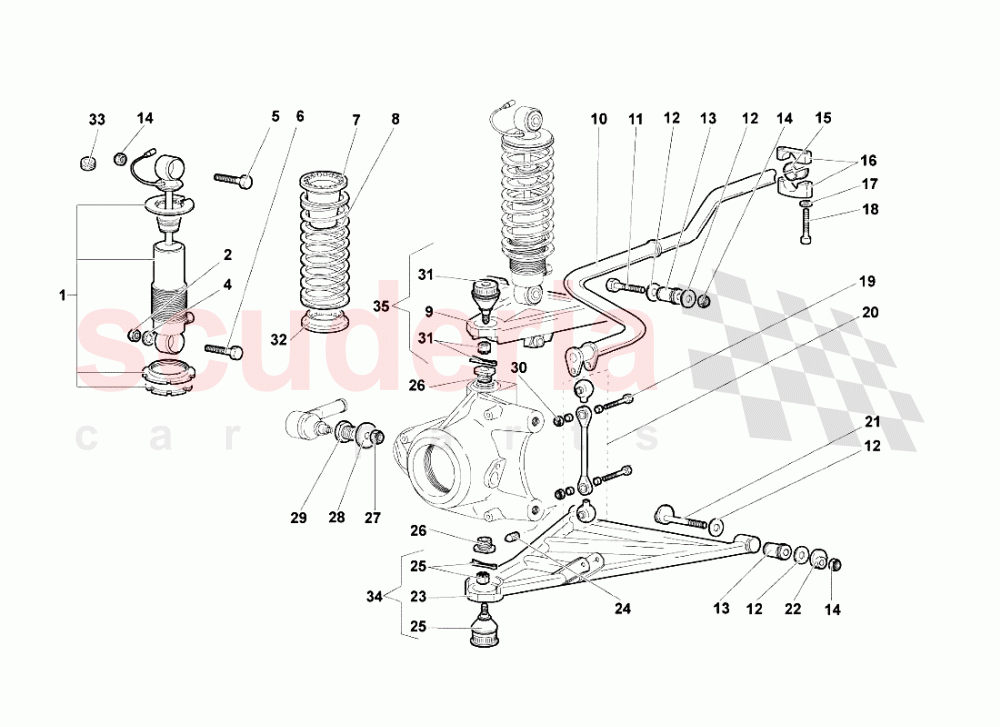

FRONT SUSPENSION of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 51010975
SHOCK ABSORBER 		$8,033.48 2
001 410412031B
SHOCK ABSORBER (FROM VIN 1547) 		$4,857.28 2
002 N90323704
NUT 		$2.78 2
005 8101269
SCREW 		$5.14 2
006 N10592401
SCREW 		$5.24 2
007 410512108
PANEL 		$44.56 2
008 51015536
SPRING 		$127.03 2
010 410411309
STABILIZER BAR 		$1,350.80 1
011 8101269
SCREW 		$5.14 4
012 410407295D
WASHER 		$29.71 4
012 410407295C
2.5 MM ADJUSTMENT SHIM 		$7.32 4
012 410407295
1.0 MM ADJUSTMENT SHIM 		$4.52 4
012 410407295A
1.5 MM ADJUSTMENT SHIM 		$6.77 4
012 410407295B
2.0 MM ADJUSTMENT SHIM 		$6.66 4
014 N10725301
NUT 12X1,25X14,8 		$1.10 (84.8% off) 2
014 N10725301
NUT 12X1,25X14,8 		$1.10 (84.8% off) 4
015 400511324C
BUSH 		$181.16 2
016 400411031D
U-BOLT 		$198.26 2
017 WHT001197A
WASHER 		$0.30 4
018 WHT000923
SCREW M6X52 		$7.87 4
020 410411317
CONNECTING ROD 		$438.19 2
021 410407127A
BOLT 		$2,318.56 4
022 410407127A
BOLT 		$2,318.56 4
024 WHT002941
SCREW M6X1X10 		$0.97 (86.6% off) 2
026 410407171C
BUSH 		$1,465.06 2
027 WHT000915
NUT 		$19.42 2
028 WHT000919
WASHER 		$14.99 2
029 410419121B
BUSH 		$247.32 1
030 8200804
NUT M8 		$1.16 (84.1% off) 4
032 410512385
RUBBER RING 		$53.43 2
033 61005393
FAIRLEAD 		$4.41 (5.2% off) 2
034 410407151
LH LOWER ARM 		$4,838.70 1
034 410407152
RH LOWER ARM 		$4,838.70 1
035 410407505
LH UPPER ARM 		$2,600.82 1
035 410407506A
RH UPPER ARM (CERAMIC BRAKE) 		$2,883.05 1
035 410407505A
LH UPPER ARM (CERAMIC BRAKE) 		$2,856.20 1
035 410407506
RH UPPER ARM 		$2,600.82 1
