STEERING

Find Your Part

Lamborghini Murcielago - STEERING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

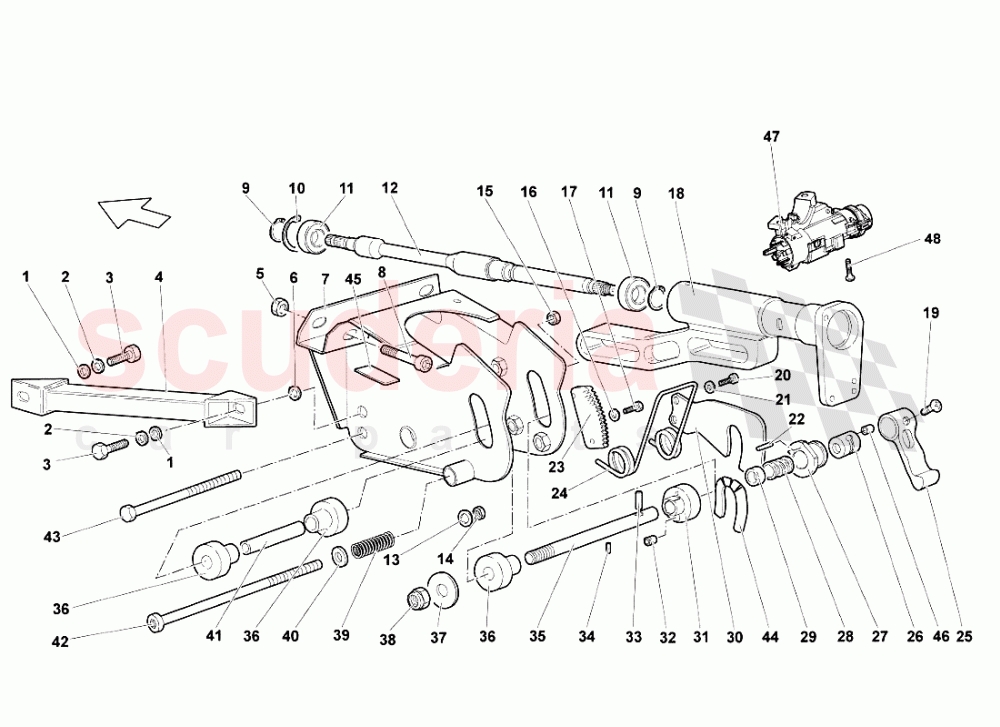

STEERING of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N90179103
WASHER 18X8,4X2,5 		$1.55 2
002 WHT000771
WASHER 		$1.19 2
003 N0124032
SCREW 		- 2 Enquire
004 43003444
STRUT 		$236.56 1
005 N10609202
HEXAGON COLLAR NUT 		$0.37 2
006 410407295
1.0 MM ADJUSTMENT SHIM 		$4.52 1
007 43014108
SUPPORT 		$614.25 1
008 N10651701
SCREW 		$3.37 (52.8% off) 2
009 WHT002646
RETAINING RING 		$1.08 (85% off) 2
010 8573701
RETAINING RING 		$0.64 (91.2% off) 1
011 8502011
BEARING 		$62.40 2
012 410419967
SHAFT 		$199.59 1
013 WHT000771
WASHER 		$1.19 1
014 N01100845
HEXAGON NUT 		$1.89 1
015 N01100845
HEXAGON NUT 		$1.89 1
016 WHT001187
WASHER 		$0.82 (88.7% off) 2
017 8700522
SCREW 		$0.42 (94.3% off) 2
018 410419561A
STEERING COLUMN SUPPORT (E-GEAR) 		$1,639.78 1
018 410419561
STEERING COLUMN SUPPORT (MANUAL GEARBOX) 		$1,639.78 1
019 8700472
SCREW 		$0.33 (95.5% off) 2
020 8700532
SCREW 		$0.27 (96.3% off) 2
021 N10612001
WASHER 		$0.48 2
022 4338318
PIN 		$10.24 (3.4% off) 1
023 4337941
TOOTHED STRIKER 		$57.47 (4.4% off) 1
024 43004084
SPRING 		$147.03 (4.2% off) 1
025 43009425
LEVER 		$670.71 1
026 43005387
SLEEVE 		$527.32 (4.3% off) 1
027 4337948
TOOTHED TAPPET 		$144.56 (3.6% off) 1
028 4337947
SPRING 		$12.36 (3.8% off) 1
029 4337952
WASHER 		$49.70 (4.4% off) 1
030 43006655
COVER 		$45.61 1
031 4337946
SPACER 		$249.38 (4.1% off) 1
032 4338060
POSITION BALL 		$32.70 (4.2% off) 1
033 4338065
PIN 		$7.46 (3.1% off) 1
034 WHT003591
PIN 		$13.36 1
035 410419645
JOURNAL 		$350.83 1
036 4337939
SPACER 		$44.66 (4.3% off) 1
037 410407295D
WASHER 		$29.71 1
038 8201231
NUT 		$1.44 (79.7% off) 1
039 410419598
SPRING 		$24.11 1
040 N01152427
WASHER 		$0.28 1
041 4337944
BUSHING 		$55.72 (4.4% off) 1
042 8700694
SCREW 		$1.43 (80.1% off) 1
043 8100824
SCREW 		$1.38 (80.6% off) 1
044 410419780
GASKET 		$9.21 1
045 400422850
RUBBER SHIM 		$19.26 1
046 9907111
POSITION BALL 		$10.73 (4.2% off) 1
047 4B0905851Q
IGNITION SWITCH SET 		$181.45 1
048 43015513
SCREW 		$10.49 2
