CRANKCASE of Lamborghini Lamborghini Murcielago

View All

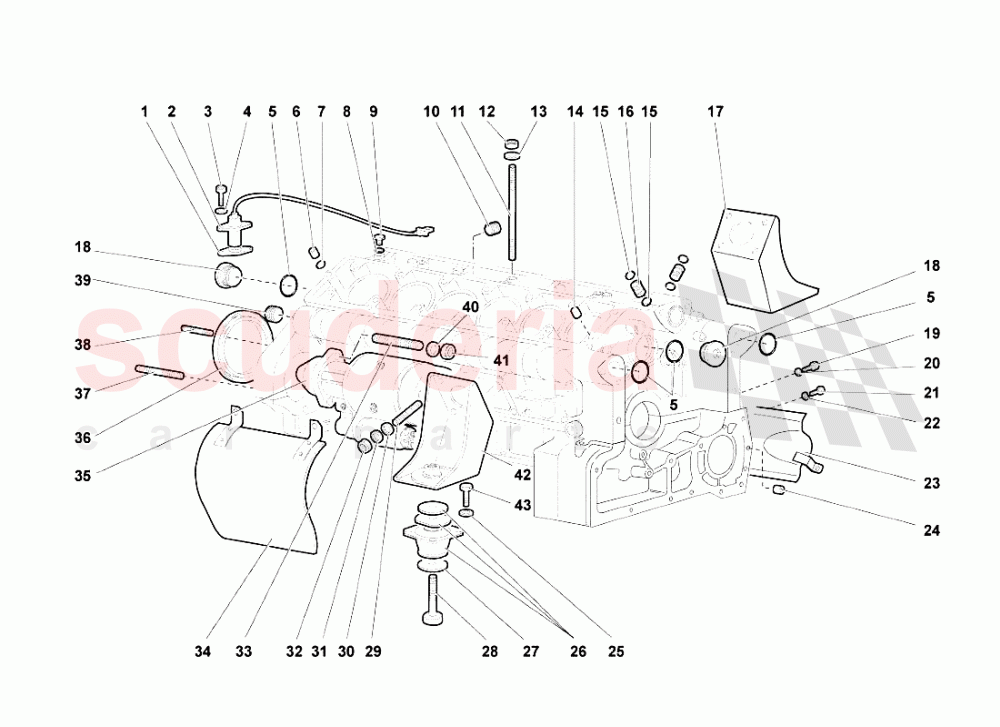

Lamborghini Murcielago - CRANKCASE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7M103899	0.2 mm ADJUSTMENT SHIM	7M103899 0.2 mm ADJUSTMENT SHIM	$5.51	1
001	7M103899A	0.4 mm ADJUSTMENT SHIM	7M103899A 0.4 mm ADJUSTMENT SHIM	$8.80	1
002	7M905381	FLYWHEEL TIMING SENSOR	7M905381 FLYWHEEL TIMING SENSOR	$700.59	1
003	N10648502	SCREW M5X10	N10648502 SCREW M5X10	$1.32 MSRP: ~~7.18~~ (81.6% off)	2
004	8410503	WASHER	8410503 WASHER	$0.19 MSRP: ~~7.37~~ (97.4% off)	2
005	8603503	SEAL RING	8603503 SEAL RING	$4.16	3
006	1832161	DOWEL	1832161 DOWEL	$387.11	2
007	WHT003059	SEAL RING	WHT003059 SEAL RING	$155.91	2
008	N0138492	WASHER	N0138492 WASHER	$3.16 MSRP: ~~7.21~~ (56.2% off)	1
009	8101402	PLUG	8101402 PLUG	$28.97 MSRP: ~~30.25~~ (4.2% off)	1
010	7M103545	PLUG	7M103545 PLUG	$2.69	1
011	8300921	STUD BOLT	8300921 STUD BOLT	$15.99	3
012	8200809	NUT	8200809 NUT	$1.96	3
013	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	$1.55	3
014	WHT003077	DOWEL	WHT003077 DOWEL	$7.68	2
015	WHT003057	SEAL RING	WHT003057 SEAL RING	$2.23 MSRP: ~~7.29~~ (69.4% off)	4
016	1833995	DOWEL	1833995 DOWEL	$34.75	2
017	410813209	SUPPORT	410813209 SUPPORT	$132.81	1
018	7M103485	PLUG	7M103485 PLUG	$60.48	2
019	8700644	SCREW	8700644 SCREW	$0.37 MSRP: ~~7.34~~ (95% off)	1
020	WHT003041	WASHER	WHT003041 WASHER	$0.89 MSRP: ~~7.31~~ (87.8% off)	1
021	N91143901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91143901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$2.90 MSRP: ~~7.23~~ (59.9% off)	1
022	WHT000771	WASHER	WHT000771 WASHER	$1.19	1
023	7M103750	PROTECTION	7M103750 PROTECTION	$534.94	1
024	WHT003098	DOWEL	WHT003098 DOWEL	$29.77	1
025	8411014	WASHER	8411014 WASHER	$0.19 MSRP: ~~7.37~~ (97.4% off)	8
026	400199703A	Flexible Support	400199703A Flexible Support	$438.71	2
027	N91089301	WASHER	N91089301 WASHER	$131.04	2
028	41010185	SCREW	41010185 SCREW	$30.67	2
029	8300814	STUD BOLT	8300814 STUD BOLT	$6.58 MSRP: ~~6.85~~ (3.9% off)	8
030	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	$1.55	8
031	WHT000771	WASHER	WHT000771 WASHER	$1.19	8
032	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	$1.89	8
033	8301249	STUD BOLT	8301249 STUD BOLT	$15.33 MSRP: ~~15.90~~ (3.6% off)	2
034	7M911295	PROTECTION	7M911295 PROTECTION	$2,977.15	1
035	7M911023	STARTER	7M911023 STARTER	$6,512.08	1
036	7M103089	SEAL RING	7M103089 SEAL RING	$230.47	1
037	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	$6.02	3
038	WHT003028	THREADED PIN	WHT003028 THREADED PIN	$22.30	2
039	7M103801	PLUG	7M103801 PLUG	$24.28	2
040	WHT003055	WASHER	WHT003055 WASHER	$0.62 MSRP: ~~7.30~~ (91.5% off)	2
041	7M911094	NUT	7M911094 NUT	$7.21	2
042	410813210	SUPPORT	410813210 SUPPORT	$942.23	1
043	8101031	SCREW	8101031 SCREW	$0.92 MSRP: ~~7.24~~ (87.3% off)	8
