RIGHT CYLINDER HEAD of Lamborghini Lamborghini Murcielago

View All

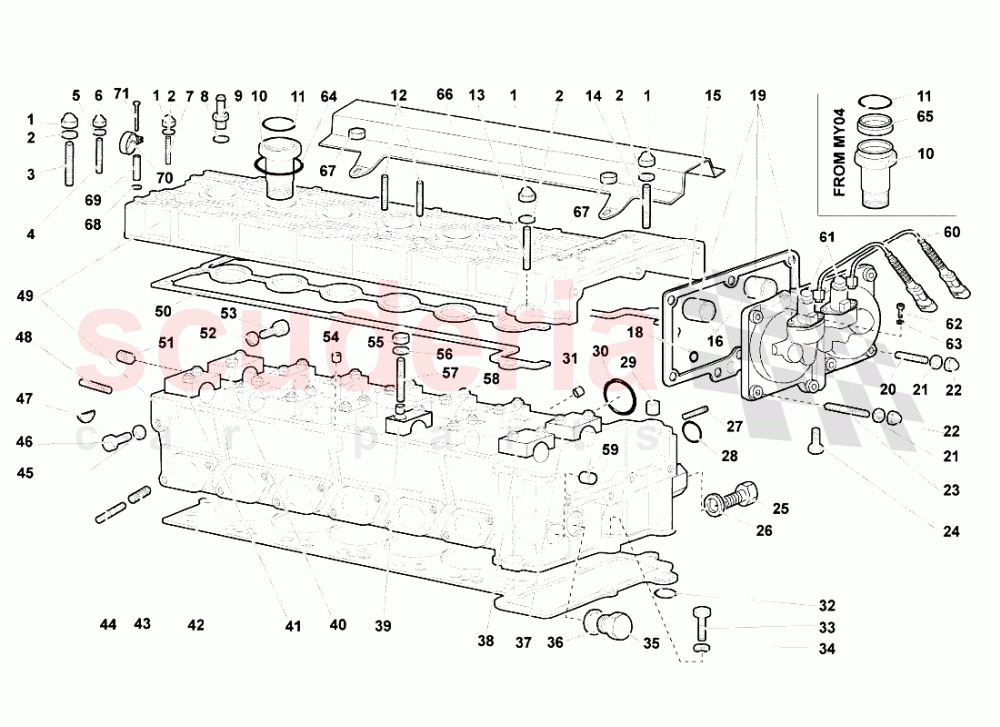

Lamborghini Murcielago - RIGHT CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8200605	NUT IN STOCK	8200605 NUT IN STOCK	$3.06	5
002	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.30	5
003	8300649	STUD BOLT	8300649 STUD BOLT	$9.49 MSRP: ~~9.85~~ (3.7% off)	2
004	8300613	STUD BOLT	8300613 STUD BOLT	$4.96 MSRP: ~~5.10~~ (2.7% off)	4
005	N01152427	WASHER IN STOCK	N01152427 WASHER IN STOCK	$0.28	4
006	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.04	4
007	8300650	STUD BOLT	8300650 STUD BOLT	$12.05 MSRP: ~~12.55~~ (4% off)	1
008	8401408	WASHER IN STOCK	8401408 WASHER IN STOCK	$0.88 MSRP: ~~7.22~~ (87.8% off)	1
009	7L103606A	CONNECTOR	7L103606A CONNECTOR	$46.10	1
010	7M103635	HEAD COVER FIXING UNION	7M103635 HEAD COVER FIXING UNION	$223.81	6
011	7M103196	SEAL RING	7M103196 SEAL RING	$4.37	6
012	8300613	STUD BOLT	8300613 STUD BOLT	$4.96 MSRP: ~~5.10~~ (2.7% off)	2
013	8300651	STUD BOLT	8300651 STUD BOLT	$11.87 MSRP: ~~12.30~~ (3.5% off)	1
014	8300637	STUD BOLT	8300637 STUD BOLT	$14.35 MSRP: ~~15.00~~ (4.3% off)	1
015	7M109092	GASKET	7M109092 GASKET	$54.59	1
018	8600905	SEAL RING	8600905 SEAL RING	$9.49 MSRP: ~~9.85~~ (3.7% off)	1
019	7M109144A	RH HEAD PHASE TRANSFORMER COVER ASSEMBLY	7M109144A RH HEAD PHASE TRANSFORMER COVER ASSEMBLY	$3,393.83	1
020	WHT003028	THREADED PIN	WHT003028 THREADED PIN	$22.30	5
021	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.19	7
022	8200816	NUT	8200816 NUT	$5.14	7
023	8300826	STUD BOLT	8300826 STUD BOLT	$11.51	2
024	8700852	SCREW	8700852 SCREW	$0.46 MSRP: ~~7.31~~ (93.7% off)	1
025	8100839	SCREW	8100839 SCREW	$0.46 MSRP: ~~7.31~~ (93.7% off)	2
026	N0138302	Washer Copper 8 x 1MM IN STOCK	N0138302 Washer Copper 8 x 1MM IN STOCK	$3.27 MSRP: ~~7.33~~ (55.4% off)	2
027	8300665	STUD BOLT	8300665 STUD BOLT	$10.49	1
028	8603503	SEAL RING IN STOCK	8603503 SEAL RING IN STOCK	$4.16	1
029	WHT003019	BUSH	WHT003019 BUSH	$11.83	2
030	8604703	SEAL RING	8604703 SEAL RING	$8.17 MSRP: ~~8.45~~ (3.3% off)	6
031	1122089	DOWEL	1122089 DOWEL	$16.80 MSRP: ~~17.60~~ (4.5% off)	2
032	WHT003522	SEAL RING	WHT003522 SEAL RING	$5.51	1
033	N01033520	SCREW M8X35 IN STOCK	N01033520 SCREW M8X35 IN STOCK	$1.55 MSRP: ~~7.19~~ (78.4% off)	2
034	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.30	2
035	7M103035	PLUG	7M103035 PLUG	$62.89	1
036	WHT003049	WASHER	WHT003049 WASHER	$5.85	1
037	7M103286	SUPPORT	7M103286 SUPPORT	$216.41	1
038	7M103286A	SUPPORT	7M103286A SUPPORT	$145.17	1
039	7M103127	SUPPORT	7M103127 SUPPORT	$56.95	10
040	7M103307A	SUPPORT	7M103307A SUPPORT	$147.19	1
041	7M103307	SUPPORT	7M103307 SUPPORT	$147.19	1
042	7M103148	RH GASKET	7M103148 RH GASKET	$5,571.22	1
043	8840802	HELI-COIL	8840802 HELI-COIL	$3.24	12
044	WHT003028	THREADED PIN	WHT003028 THREADED PIN	$22.30	12
045	N0138302	Washer Copper 8 x 1MM IN STOCK	N0138302 Washer Copper 8 x 1MM IN STOCK	$3.27 MSRP: ~~7.33~~ (55.4% off)	2
046	8100839	SCREW	8100839 SCREW	$0.46 MSRP: ~~7.31~~ (93.7% off)	2
047	7M103113	COVER IN STOCK	7M103113 COVER IN STOCK	$115.09	2
048	8300601	STUD BOLT	8300601 STUD BOLT	$8.56	2
049	460147014	RH CYLINDER HEAD	460147014 RH CYLINDER HEAD	$15,116.37	1
050	7M103484A	CRANKCASE VENT VALVE GASKET IN STOCK	7M103484A CRANKCASE VENT VALVE GASKET IN STOCK	$717.78	1
051	8700852	SCREW	8700852 SCREW	$0.46 MSRP: ~~7.31~~ (93.7% off)	7
052	N0138302	Washer Copper 8 x 1MM IN STOCK	N0138302 Washer Copper 8 x 1MM IN STOCK	$3.27 MSRP: ~~7.33~~ (55.4% off)	2
053	8100839	SCREW	8100839 SCREW	$0.46 MSRP: ~~7.31~~ (93.7% off)	2
054	WHT003082	DOWEL	WHT003082 DOWEL	$0.77 MSRP: ~~7.27~~ (89.4% off)	2
055	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 IN STOCK	$0.33 MSRP: ~~7.29~~ (95.5% off)	28
056	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.30	28
057	8300666	STUD BOLT	8300666 STUD BOLT	$42.30 MSRP: ~~44.20~~ (4.3% off)	28
058	WHT003019	BUSH	WHT003019 BUSH	$11.83	28
059	7M103143	BUSHING	7M103143 BUSHING	$20.58	1
060	61013451	WIRING HARNESS	61013451 WIRING HARNESS	$68.15	2
061	7M109257	SOLENOID VALVE ASSEMBLY	7M109257 SOLENOID VALVE ASSEMBLY	$1,114.24	2
062	8700644	SCREW	8700644 SCREW	$0.37 MSRP: ~~7.34~~ (95% off)	4
063	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.30	4
064	7M103677	GASKET	7M103677 GASKET	$54.59	6
065	7M103179	PIPE UNION ADAPTER	7M103179 PIPE UNION ADAPTER	$27.16	6
066	7M103908	COIL COVER	7M103908 COIL COVER	$1,942.19	1
067	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.04	2
068	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.30	1
069	400972895	SPACER	400972895 SPACER	$163.30	1
070	8834401	CLAMP	8834401 CLAMP	$12.99 MSRP: ~~13.50~~ (3.8% off)	1
071	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	$0.95	1
