LEFT CYLINDER HEAD

Find Your Part

Lamborghini Murcielago - LEFT CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

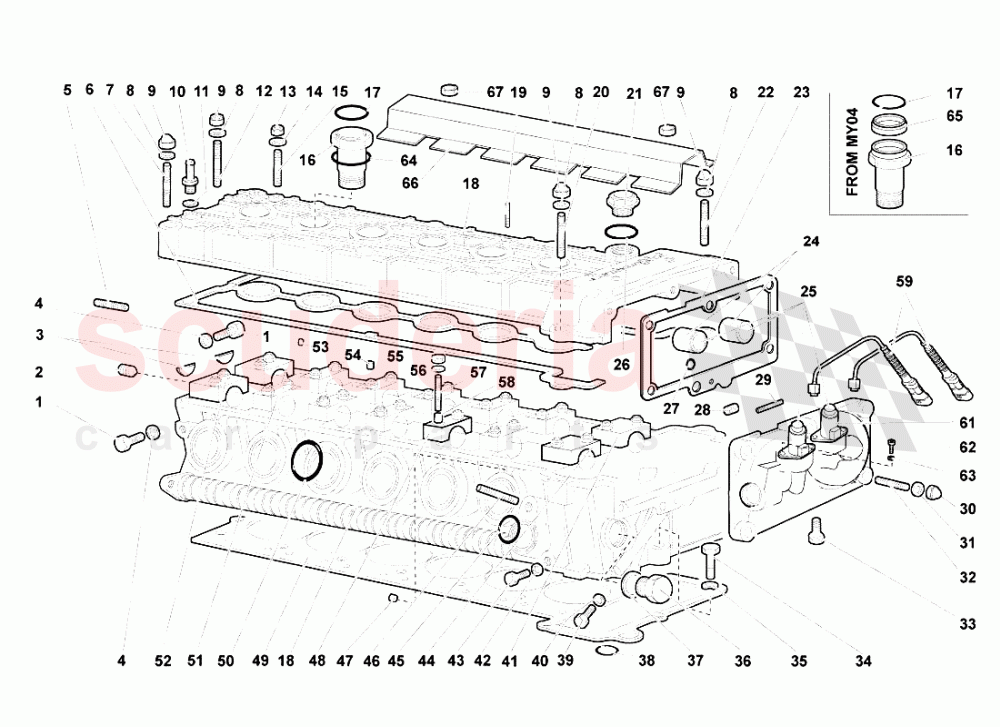

LEFT CYLINDER HEAD of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8100839
SCREW 		$0.46 (93.7% off) 2
002 8700852
SCREW 		$0.46 (93.7% off) 7
003 7M103113
COVER 		$115.09 2
004 N0138302
Washer Copper 8 x 1MM 		$3.27 (55.4% off) 2
005 8300601
STUD BOLT 		$8.56 2
006 7M103483A
GASKET 		$239.47 1
007 8300649
STUD BOLT 		$9.49 (3.7% off) 2
008 WHT001197A
WASHER 		$0.30 5
009 8200605
NUT 		$3.06 5
010 7L103606A
CONNECTOR 		$46.10 1
011 8401408
WASHER 		$0.88 (87.8% off) 1
012 8300650
STUD BOLT 		$12.05 (4% off) 1
013 N01118312
HEXAGON NUT, SELF-LOCKING 		$2.04 2
014 N01152427
WASHER 		$0.28 2
015 8300613
STUD BOLT 		$4.96 (2.7% off) 2
016 7M103635
HEAD COVER FIXING UNION 		$223.81 6
017 7M103196
SEAL RING 		$4.37 6
018 460147015
LH CYLINDER HEAD 		$15,116.37 1
019 8300613
STUD BOLT 		$4.96 (2.7% off) 2
020 8300637
STUD BOLT 		$14.35 (4.3% off) 1
022 8300651
STUD BOLT 		$11.87 (3.5% off) 1
023 7M109091A
GASKET 		$76.49 1
025 7M109144B
LHHEAD PHASE TRANSFORMER COVER ASSEMBLY 		$3,239.25 1
027 8600905
SEAL RING 		$9.49 (3.7% off) 1
028 8840802
HELI-COIL 		$3.24 12
029 WHT003028
THREADED PIN 		$22.30 12
030 8200816
NUT 		$5.14 7
031 8400810
WASHER 		$4.90 7
032 WHT003028
THREADED PIN 		$22.30 7
033 8700852
SCREW 		$0.46 (93.7% off) 1
034 N01033520
SCREW M8X35 		$1.55 (78.4% off) 1
035 WHT000771
WASHER 		$1.19 7
036 7M103035
PLUG 		$62.89 1
037 WHT003049
WASHER 		$5.85 1
038 WHT003522
SEAL RING 		$5.51 1
039 8101077
SCREW 		$2.35 1
040 8401033
WASHER 		$86.71 1
041 7M103285A
SUPPORT 		$216.41 1
042 WHT003041
WASHER 		$0.89 (87.8% off) 3
043 8700643
SCREW 		$0.40 (94.5% off) 3
044 7M103285
SUPPORT 		$216.41 1
045 8603503
SEAL RING 		$4.16 1
046 8300665
STUD BOLT 		$10.49 1
047 1122089
DOWEL 		$16.80 (4.5% off) 2
048 7M103127
SUPPORT 		$56.95 10
049 7M103149
LH GASKET 		$5,571.22 1
050 8604703
SEAL RING 		$8.17 (3.3% off) 6
051 7M103307
SUPPORT 		$147.19 1
052 7M103307A
SUPPORT 		$147.19 1
053 WHT003019
BUSH 		$11.83 2
054 WHT003082
DOWEL 		$0.77 (89.4% off) 2
055 N01100637
NUT M6 		$0.33 (95.5% off) 28
056 WHT001197A
WASHER 		$0.30 28
057 8300666
STUD BOLT 		$42.30 (4.3% off) 28
058 WHT003019
BUSH 		$11.83 28
059 61013451
WIRING HARNESS 		$68.15 2
061 7M109257
SOLENOID VALVE ASSEMBLY 		$1,114.24 2
062 8700644
SCREW 		$0.37 (95% off) 4
063 WHT001197A
WASHER 		$0.30 4
064 7M103677
GASKET 		$54.59 6
065 7M103179
PIPE UNION ADAPTER 		$27.16 6
066 7M103908
COIL COVER 		$1,942.19 1
067 N01118312
HEXAGON NUT, SELF-LOCKING 		$2.04 2
