LEFT HEAD TIMING SYSTEM of Lamborghini Lamborghini Murcielago

View All

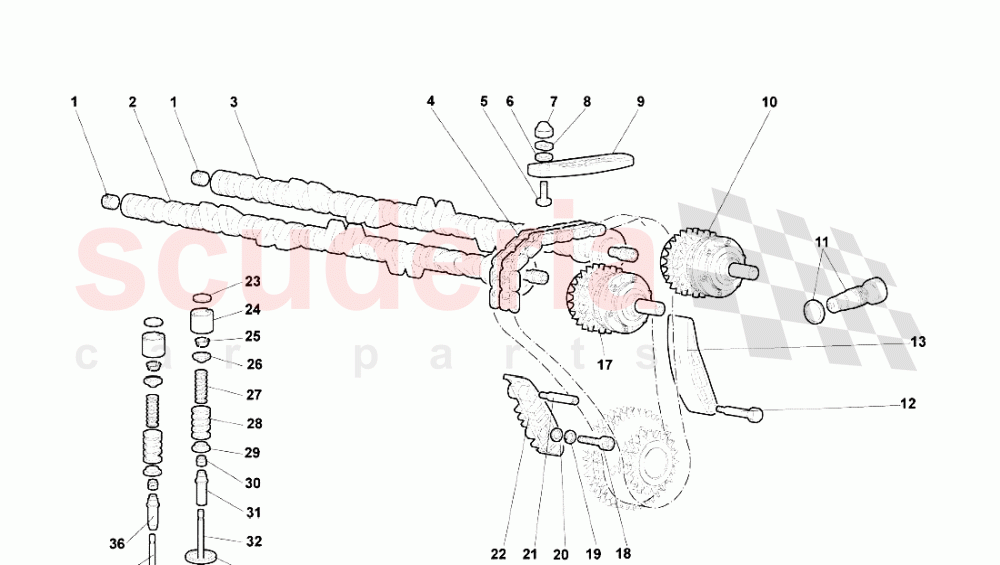

Lamborghini Murcielago - LEFT HEAD TIMING SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8931409	PLUG	8931409 PLUG	$12.36 MSRP: ~~12.85~~ (3.8% off)	2
002	7M109021	INTAKE CAMSHAFT	7M109021 INTAKE CAMSHAFT	$9,146.48	1
003	7M109021A	EXHAUST CAMSHAFT	7M109021A EXHAUST CAMSHAFT	$2,802.43	1
004	7M109231C	UPPER TIMING CHAIN IN STOCK	7M109231C UPPER TIMING CHAIN IN STOCK	$508.06	1
005	8700682	SCREW IN STOCK	8700682 SCREW IN STOCK	$0.56 MSRP: ~~7.28~~ (92.3% off)	2
006	WHT003041	WASHER IN STOCK	WHT003041 WASHER IN STOCK	$0.89 MSRP: ~~7.31~~ (87.8% off)	2
007	8200605	NUT IN STOCK	8200605 NUT IN STOCK	$3.06	2
008	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.30	2
009	7M109513	SHOE	7M109513 SHOE	$767.49	1
010	7M109084	EXHAUST PHASE TRANSFORMER	7M109084 EXHAUST PHASE TRANSFORMER	$5,799.72	1

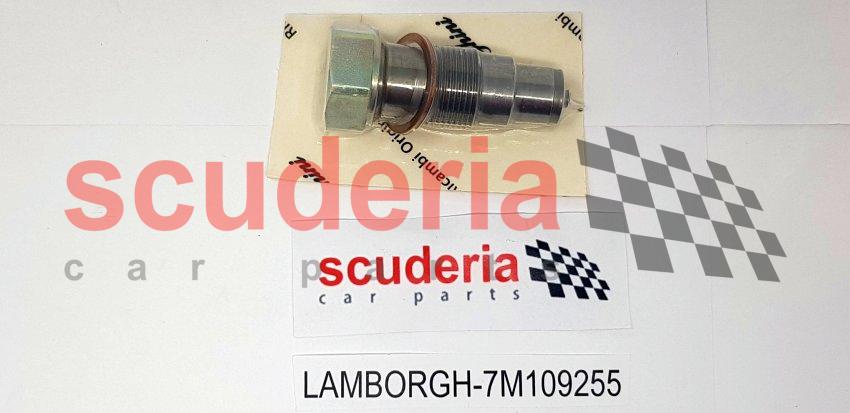

011	7M109255	Chain Tightener IN STOCK	7M109255 Chain Tightener IN STOCK	$848.13	1
012	7M109225A	JOURNAL	7M109225A JOURNAL	$51.88	1

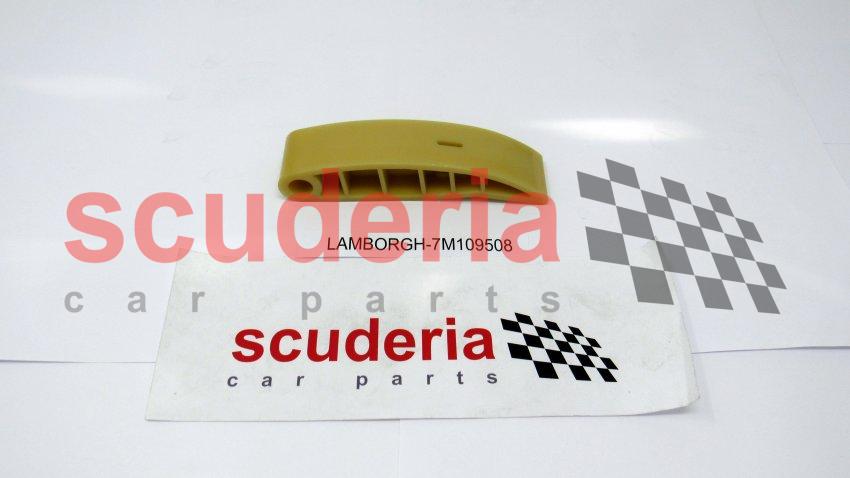

013	7M109508	Shoe IN STOCK	7M109508 Shoe IN STOCK	$236.56	1
017	7M109083	INTAKE PHASE TRANSFORMER	7M109083 INTAKE PHASE TRANSFORMER	$6,102.12	1
018	WHT003071	SCREW	WHT003071 SCREW	$6.86	1
019	8410820	WASHER	8410820 WASHER	$0.19 MSRP: ~~7.37~~ (97.4% off)	1
020	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 IN STOCK	$0.33 MSRP: ~~7.35~~ (95.5% off)	1
021	7M109224	JOURNAL	7M109224 JOURNAL	$55.24	1

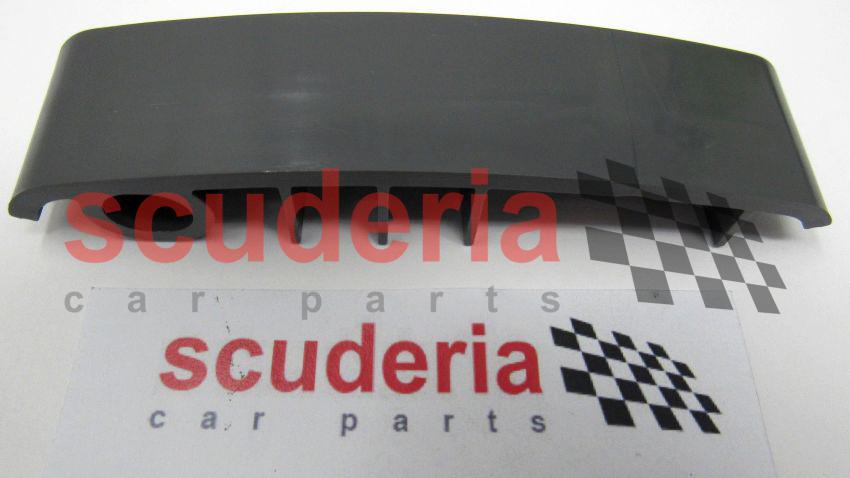

022	7M109469	SHOE IN STOCK	7M109469 SHOE IN STOCK	$49.82	1
023	7M109320A	3.30 MM ADJUSTMENT SHIM	7M109320A 3.30 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320AB	4.25 MM ADJUSTMENT SHIM	7M109320AB 4.25 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320B	3.35 MM ADJUSTMENT SHIM	7M109320B 3.35 MM ADJUSTMENT SHIM	$55.72	24
023	7M109320AD	4.35 MM ADJUSTMENT SHIM	7M109320AD 4.35 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320AE	4.40 MM ADJUSTMENT SHIM	7M109320AE 4.40 MM ADJUSTMENT SHIM	$55.72	24
023	7M109320AK	4.65 MM ADJUSTMENT SHIM	7M109320AK 4.65 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320AG	4.50 MM ADJUSTMENT SHIM	7M109320AG 4.50 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320AL	4.70 MM ADJUSTMENT SHIM	7M109320AL 4.70 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320H	3.65 MM ADJUSTMENT SHIM	7M109320H 3.65 MM ADJUSTMENT SHIM	$57.85	24
023	7M109320AH	4.55 MM ADJUSTMENT SHIM	7M109320AH 4.55 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320AJ	4.60 MM ADJUSTMENT SHIM	7M109320AJ 4.60 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320AA	4.20 MM ADJUSTMENT SHIM	7M109320AA 4.20 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320C	3.40 MM ADJUSTMENT SHIM	7M109320C 3.40 MM ADJUSTMENT SHIM	$52.74	24
023	7M109320J	3.70 MM ADJUSTMENT SHIM	7M109320J 3.70 MM ADJUSTMENT SHIM	$55.72	24
023	7M109320T	4.15 MM ADJUSTMENT SHIM	7M109320T 4.15 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320P	3.95 MM ADJUSTMENT SHIM	7M109320P 3.95 MM ADJUSTMENT SHIM	$55.72	24
023	7M109320AC	4.30 MM ADJUSTMENT SHIM	7M109320AC 4.30 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320D	3.45 MM ADJUSTMENT SHIM	7M109320D 3.45 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320	3.25 MM ADJUSTMENT SHIM	7M109320 3.25 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320AF	4.45 MM ADJUSTMENT SHIM	7M109320AF 4.45 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320N	3.90 MM ADJUSTMENT SHIM	7M109320N 3.90 MM ADJUSTMENT SHIM	$55.72	24
023	7M109320Q	4.00 MM ADJUSTMENT SHIM	7M109320Q 4.00 MM ADJUSTMENT SHIM	$81.98	24
023	7M109320S	4.10 MM ADJUSTMENT SHIM	7M109320S 4.10 MM ADJUSTMENT SHIM	$55.72	24
023	7M109320K	3.75 MM ADJUSTMENT SHIM	7M109320K 3.75 MM ADJUSTMENT SHIM	$55.72	24
023	7M109320E	3.50 MM ADJUSTMENT SHIM	7M109320E 3.50 MM ADJUSTMENT SHIM	$55.72	24
023	7M109320L	3.80 MM ADJUSTMENT SHIM	7M109320L 3.80 MM ADJUSTMENT SHIM	$55.72	24
023	7M109320R	4.05 MM ADJUSTMENT SHIM	7M109320R 4.05 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320M	3.85 MM ADJUSTMENT SHIM	7M109320M 3.85 MM ADJUSTMENT SHIM	$11.22	24
023	7M109320G	3,60 MM ADJUSTMENT SHIM	7M109320G 3,60 MM ADJUSTMENT SHIM	$55.72	24
023	7M109320F	3.55 MM ADJUSTMENT SHIM	7M109320F 3.55 MM ADJUSTMENT SHIM	$81.98	24
024	7M109309	VALVE CONTROL TAPPET	7M109309 VALVE CONTROL TAPPET	$36.70	24
025	7M109651	VALVE COTTER	7M109651 VALVE COTTER	$1.05 MSRP: ~~7.22~~ (85.5% off)	48
026	7M109641	TAPPET UPPER PLATE	7M109641 TAPPET UPPER PLATE	$19.09	24
027	7M109633A	INNER SPRING	7M109633A INNER SPRING	$6.20	24
028	7M109623A	OUTER SPRING	7M109623A OUTER SPRING	$19.15	24
029	7M109642	TAPPET LOWER PLATE	7M109642 TAPPET LOWER PLATE	$17.74	24
030	7M109675	SEAL RING	7M109675 SEAL RING	$15.73	48
031	1238320	EXHAUST VALVE GUIDE	1238320 EXHAUST VALVE GUIDE	$86.86	12
032	7M109611	EXHAUST VALVE	7M109611 EXHAUST VALVE	$104.17	12
033	7M103441	EXHAUST VALVE SEAT	7M103441 EXHAUST VALVE SEAT	$43.28	12
034	7M103431	INTAKE VALVE SEAT	7M103431 INTAKE VALVE SEAT	$47.84	12
035	7M109601	INTAKE VALVE	7M109601 INTAKE VALVE	$72.71	12
036	1238321	INTAKE VALVE GUIDE	1238321 INTAKE VALVE GUIDE	$70.75	12
