ENGINE OIL SYSTEM of Lamborghini Lamborghini Murcielago

View All

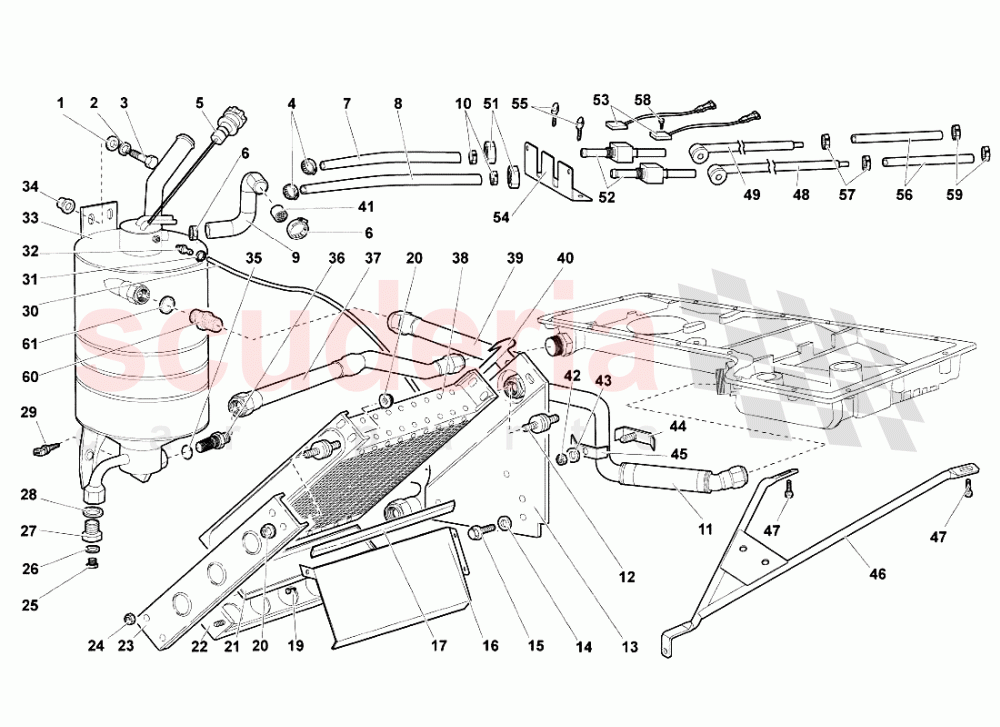

Lamborghini Murcielago - ENGINE OIL SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N90840802	WASHER IN STOCK	N90840802 WASHER IN STOCK	$0.40 MSRP: ~~7.33~~ (94.5% off)	3
002	N0152785	WASHER IN STOCK	N0152785 WASHER IN STOCK	$0.40	3
003	8100827	SCREW M8X25	8100827 SCREW M8X25	$0.40 MSRP: ~~7.33~~ (94.5% off)	3
004	8830901	CLAMP	8830901 CLAMP	$6.45	2
005	7M115311B	PLUG	7M115311B PLUG	$1,198.93	1
006	8830128	CLAMP	8830128 CLAMP	$0.46	2
007	7M115278A	PIPE (RIGHT CYLINDER HEAD)	7M115278A PIPE (RIGHT CYLINDER HEAD)	$122.86	1
008	7M115278	PIPE (LEFT CYLINDER HEAD)	7M115278 PIPE (LEFT CYLINDER HEAD)	$122.86	1
009	7M115657	PIPE	7M115657 PIPE	$147.86	1
010	400251189E	CLAMP	400251189E CLAMP	$14.38	2
011	7M117413	PIPE	7M117413 PIPE	$1,680.10	1
012	8920602	FLEXIBLE SUPPORT	8920602 FLEXIBLE SUPPORT	$14.65	3
013	410813404	SHEET	410813404 SHEET	$95.71	1
014	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	4
015	N90319404	SCREW IN STOCK	N90319404 SCREW IN STOCK	$1.89	4
016	7M119275	PANEL	7M119275 PANEL	$385.74	1
017	7M119467	GASKET	7M119467 GASKET	$108.09	1
019	8700463	SCREW	8700463 SCREW	$1.29 MSRP: ~~7.16~~ (82% off)	1
020	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.21	6
021	410117079	OIL RADIATOR RUBBER SUPPORT	410117079 OIL RADIATOR RUBBER SUPPORT	$10.70	1
022	410117095	SHEET	410117095 SHEET	$540.33	1
023	410117141	BRACKET	410117141 BRACKET	$514.78	1
024	8200513	NUT	8200513 NUT	$0.16	2
025	N0297042	PLUG M18X1.50 IN STOCK	N0297042 PLUG M18X1.50 IN STOCK	$10.76	1
026	N91122801	WASHER 18,5X24X1,5 IN STOCK	N91122801 WASHER 18,5X24X1,5 IN STOCK	$3.05 MSRP: ~~7.18~~ (57.5% off)	1
027	7M115707A	CONNECTOR	7M115707A CONNECTOR	$126.35	1
028	WHT003050	WASHER IN STOCK	WHT003050 WASHER IN STOCK	$6.77	1
029	7L919501A	Water Temperature Sensor IN STOCK	7L919501A Water Temperature Sensor IN STOCK	$359.56	1
030	7M115655	PIPE	7M115655 PIPE	$154.58	1
031	8832204	CLAMP	8832204 CLAMP	$16.70	2
033	7M115373	OIL TANK	7M115373 OIL TANK	$2,170.69	1
034	410814939	BUSHING	410814939 BUSHING	$8.35	3
035	WHT003309	WASHER	WHT003309 WASHER	$30.67	1
036	7M115157	CONNECTOR	7M115157 CONNECTOR	$3,004.05	1
037	7M115688	PIPE	7M115688 PIPE	$931.47	1
038	7M117021	OIL RADIATOR	7M117021 OIL RADIATOR	$4,334.67	1
039	7M115689	PIPE	7M115689 PIPE	$442.22	1
040	410813271	OIL RADIATOR AIR CONVEYOR FIXING ROD	410813271 OIL RADIATOR AIR CONVEYOR FIXING ROD	$288.99	1
041	7L129793	FLAME TRAP IN STOCK	7L129793 FLAME TRAP IN STOCK	$116.14	1
042	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.04	1
043	WHT003407	WASHER IN STOCK	WHT003407 WASHER IN STOCK	$0.53 MSRP: ~~7.31~~ (92.7% off)	1
044	7M115633	BRACKET	7M115633 BRACKET	$29.11	1
045	7M115634A	BRACKET	7M115634A BRACKET	$25.21	1
046	410117073	LEFT OIL RADIATOR FRAMEWORK	410117073 LEFT OIL RADIATOR FRAMEWORK	$451.61	1
047	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	$0.95	2
060	400115707	CONNECTOR	400115707 CONNECTOR	$34.14	1
