Front Hood of Lamborghini Lamborghini Huracan LP580 Coupe

View All

Lamborghini Huracan LP580 Coupe - Front Hood

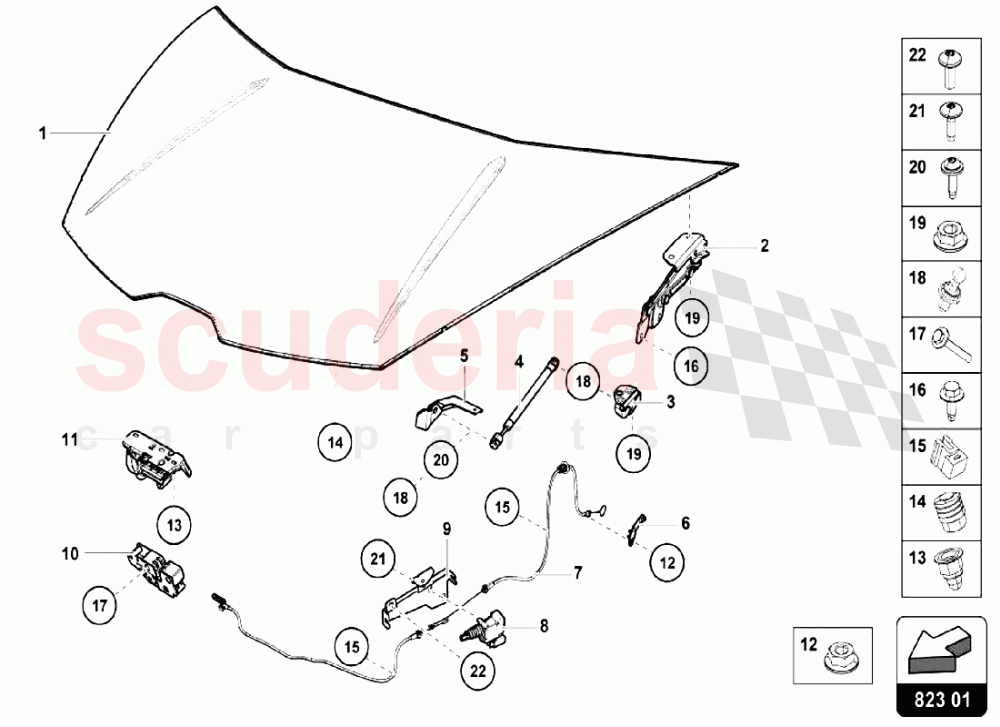

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4T0823021CA	FRONT HOOD IN CARBON	4T0823021CA FRONT HOOD IN CARBON	-	1	Enquire
001	4T0823021C	BONNET	4T0823021C BONNET	-	1	Enquire
002	4T0823301B	HINGE	4T0823301B HINGE	-	1	Enquire
002	4T0823302B	HINGE	4T0823302B HINGE	-	1	Enquire
003	4T0823351B	ARM	4T0823351B ARM	-	1	Enquire
004	4T0823359	GAS FILLED STRUT	4T0823359 GAS FILLED STRUT	-	1	Enquire
005	4T0805669C	ATTACHMENT BARS	4T0805669C ATTACHMENT BARS	-	1	Enquire
005	4T0805670C	RH BRACKET HEADLIGHT TOP	4T0805670C RH BRACKET HEADLIGHT TOP	-	1	Enquire
006	4T0819549	BRACKET	4T0819549 BRACKET	-	1	Enquire
007	4T0823531B	BOWDEN CABLE	4T0823531B BOWDEN CABLE	-	1	Enquire
008	420959782	SERVOMOTOR	420959782 SERVOMOTOR	-	1	Enquire
009	4T0819967	ARM	4T0819967 ARM	-	1	Enquire
010	1K1823509E	BONNET LOCK-LOWER PART	1K1823509E BONNET LOCK-LOWER PART	-	1	Enquire
011	1Q0823480	CATCH HOOK	1Q0823480 CATCH HOOK	-	1	Enquire
012	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT	-	3	Enquire
013	WHT001308	CAP NUT, SELF-LOCKING	WHT001308 CAP NUT, SELF-LOCKING	-	4	Enquire
014	4E0823481	STOP BUFFER	4E0823481 STOP BUFFER	-	2	Enquire
015	3D0971497D	CABLE TIE WITH TERMINAL SOCKET	3D0971497D CABLE TIE WITH TERMINAL SOCKET	-	4	Enquire
016	N90863802	HEXAGON HEAD BOLT (COMBI)	N90863802 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
017	N10553804	HEXAGON HEAD BOLT (COMBI)	N10553804 HEXAGON HEAD BOLT (COMBI)	-	2	Enquire
018	895827439D	BALL STUD	895827439D BALL STUD	-	4	Enquire
019	N90798805	HEXAGON COLLAR NUT	N90798805 HEXAGON COLLAR NUT	-	2	Enquire
020	N90900401	HEX SOCKET OVAL HEAD COLLARED	N90900401 HEX SOCKET OVAL HEAD COLLARED	-	4	Enquire
022	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	N91042302 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
