Securing Parts for Engine of Lamborghini Lamborghini Huracan LP580 Coupe

View All

Lamborghini Huracan LP580 Coupe - Securing Parts for Engine

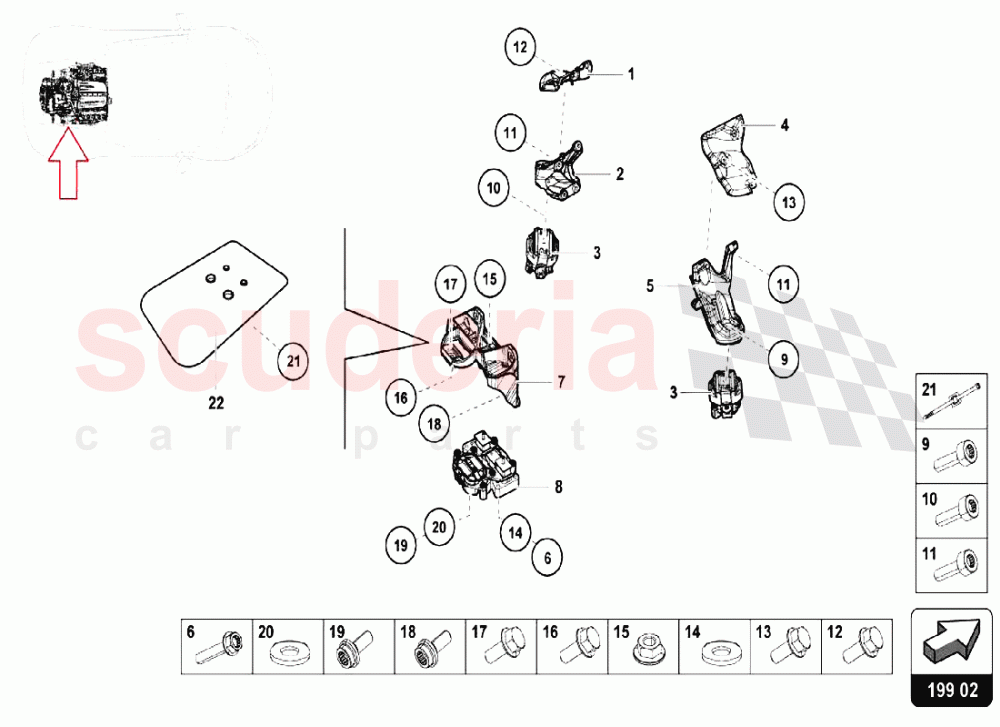

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	420199387E	GUARD PLATE	420199387E GUARD PLATE	-	1	Enquire
002	420199307H	SUPPORT	420199307H SUPPORT	-	1	Enquire
003	420199381AA	ENGINE MOUNTING	420199381AA ENGINE MOUNTING	-	2	Enquire
004	4S0199388A	GUARD PLATE	4S0199388A GUARD PLATE	-	1	Enquire
005	4S0199308B	Support (right)	4S0199308B Support (right)	-	1	Enquire
006	N10683301	HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)	N10683301 HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)	-	5	Enquire
007	420399115E	GEARBOX SUPPORT	420399115E GEARBOX SUPPORT	-	1	Enquire
008	420399419D	GEARBOX MOUNTING	420399419D GEARBOX MOUNTING	-	1	Enquire
009	N10702603	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N10702603 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	-	5	Enquire
010	N91137001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91137001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	5	Enquire
011	N91135801	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91135801 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	8	Enquire
012	N10305302	HEXAGON HEAD BOLT (COMBI)	N10305302 HEXAGON HEAD BOLT (COMBI)	-	8	Enquire
013	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	-	8	Enquire
014	N90315204	WASHER	N90315204 WASHER	-	4	Enquire
015	N91157402	HEXAGON COLLAR NUT	N91157402 HEXAGON COLLAR NUT	-	8	Enquire
016	N10640801	HEXAGON BOLT	N10640801 HEXAGON BOLT	-	4	Enquire
017	N91073401	HEX COLLARED BOLT	N91073401 HEX COLLARED BOLT	-	4	Enquire
018	N10720402	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N10720402 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	-	4	Enquire
019	N10689301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10689301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	4	Enquire
020	N90033308	WASHER	N90033308 WASHER	-	4	Enquire
021	5M0971838	CABLE TIE WITH TERMINAL SOCKET	5M0971838 CABLE TIE WITH TERMINAL SOCKET	-	4	Enquire
022	420825773	Heat Shield Plate	420825773 Heat Shield Plate	-	1	Enquire
