Doors 1 of Lamborghini Lamborghini Huracan LP580 Coupe

View All

Lamborghini Huracan LP580 Coupe - Doors 1

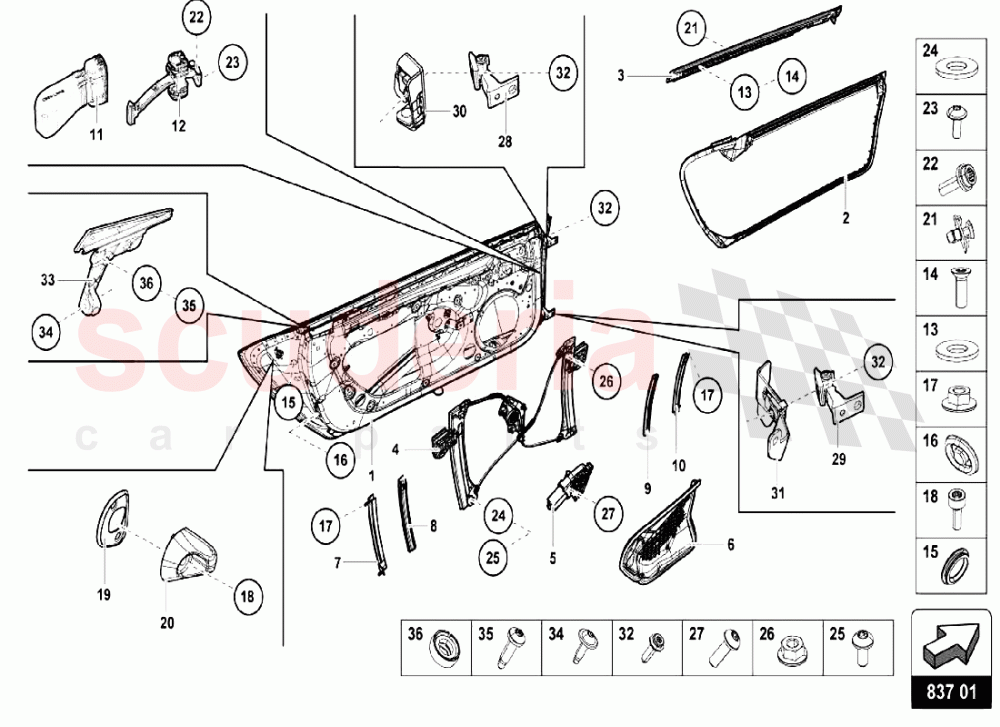

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4T8831051E	LH DOOR	4T8831051E LH DOOR	-	1	Enquire
001	4T8831052D	RH DOOR	4T8831052D RH DOOR	-	1	Enquire
002	4T0837912C	DOOR SEAL	4T0837912C DOOR SEAL	-	1	Enquire
002	4T0837911C	DOOR SEAL	4T0837911C DOOR SEAL	-	1	Enquire
002	4T0837912B	DOOR WEATHERSTRIP, OUTER RH	4T0837912B DOOR WEATHERSTRIP, OUTER RH	-	1	Enquire
003	4T0837477C	GLASS WEATHERSTRIP, LH	4T0837477C GLASS WEATHERSTRIP, LH	-	1	Enquire
003	4T0837478C	GLASS WEATHERSTRIP, RH	4T0837478C GLASS WEATHERSTRIP, RH	-	1	Enquire
004	4T0837397B	LH POWER WINDOW ASSEMBLY	4T0837397B LH POWER WINDOW ASSEMBLY	-	1	Enquire
004	4T0837398B	RIGHT DOOR POWER WINDOW ASSEMBLY	4T0837398B RIGHT DOOR POWER WINDOW ASSEMBLY	-	1	Enquire
005	8K0959802B	WINDOW REGULATOR MOTOR	8K0959802B WINDOW REGULATOR MOTOR	-	1	Enquire
005	8K0959801B	WINDOW REGULATOR MOTOR	8K0959801B WINDOW REGULATOR MOTOR	-	1	Enquire
006	4T0837918	DOOR SEAL	4T0837918 DOOR SEAL	-	1	Enquire
006	4T0837917	DOOR SEAL	4T0837917 DOOR SEAL	-	1	Enquire
007	4T0837405	WINDOW GUIDE	4T0837405 WINDOW GUIDE	-	1	Enquire
007	4T0837406	WINDOW GUIDE	4T0837406 WINDOW GUIDE	-	1	Enquire
008	4T0837933B	SEAL	4T0837933B SEAL	-	2	Enquire
009	4T0837349B	SEAL	4T0837349B SEAL	-	2	Enquire
010	4T0831620	WINDOW GUIDE	4T0831620 WINDOW GUIDE	-	1	Enquire
010	4T0831619	WINDOW GUIDE	4T0831619 WINDOW GUIDE	-	1	Enquire
011	8V0837267	COVER	8V0837267 COVER	-	2	Enquire
012	8S0837249	DOOR CATCH	8S0837249 DOOR CATCH	-	2	Enquire
013	WHT000778	WASHER	WHT000778 WASHER	-	8	Enquire
014	N10459201	HEXAGON SOCKET HEAD BOLT	N10459201 HEXAGON SOCKET HEAD BOLT	-	8	Enquire
015	4H0839111	COVER CAP	4H0839111 COVER CAP	-	4	Enquire
016	1Z0971904A	BUNGS	1Z0971904A BUNGS	-	4	Enquire
017	N90663602	Hex. Nut With Washer (m5)	N90663602 Hex. Nut With Washer (m5)	-	4	Enquire
018	N91203201	FLAT HEAD MULTI-POINT SOCKET BOLT	N91203201 FLAT HEAD MULTI-POINT SOCKET BOLT	-	2	Enquire
019	4T0831432	DOOR SEAL	4T0831432 DOOR SEAL	-	1	Enquire
019	4T0831431	DOOR SEAL	4T0831431 DOOR SEAL	-	1	Enquire
020	4T0831121A	REINFORCEMENT FOR DOOR HANDLE	4T0831121A REINFORCEMENT FOR DOOR HANDLE	-	1	Enquire
020	4T0831122A	REINFORCEMENT FOR DOOR HANDLE	4T0831122A REINFORCEMENT FOR DOOR HANDLE	-	1	Enquire
021	8L3837199B	CLIP	8L3837199B CLIP	-	22	Enquire
022	N91084201	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91084201 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	-	4	Enquire
023	WHT003237	HEXAGON SOCKET FLAT HEAD BOLT	WHT003237 HEXAGON SOCKET FLAT HEAD BOLT	-	6	Enquire
024	N01166623	WASHER	N01166623 WASHER	-	4	Enquire
025	N10124308	OVAL HEXAGON SOCKET HEAD BOLT	N10124308 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
026	N10017307	HEXAGON COLLAR NUT	N10017307 HEXAGON COLLAR NUT	-	4	Enquire
027	8Z0837691C	HEXAGON SOCKET HEAD PANEL BOLT	8Z0837691C HEXAGON SOCKET HEAD PANEL BOLT	-	6	Enquire
028	4G0831401A	DOOR HINGE	4G0831401A DOOR HINGE	-	1	Enquire
028	4G0831402A	DOOR HINGE	4G0831402A DOOR HINGE	-	1	Enquire
029	4G0831402B	DOOR HINGE	4G0831402B DOOR HINGE	-	1	Enquire
029	4G0831401B	DOOR HINGE	4G0831401B DOOR HINGE	-	1	Enquire
030	4T0831330B	HINGE REINFORCEMENT	4T0831330B HINGE REINFORCEMENT	-	1	Enquire
030	4T0831329B	HINGE REINFORCEMENT	4T0831329B HINGE REINFORCEMENT	-	1	Enquire
031	4T0831334B	HINGE REINFORCEMENT	4T0831334B HINGE REINFORCEMENT	-	1	Enquire
031	4T0831333B	HINGE REINFORCEMENT	4T0831333B HINGE REINFORCEMENT	-	1	Enquire
032	8H0831701	HEX SOCKET HEAD COLLARED BOLT	8H0831701 HEX SOCKET HEAD COLLARED BOLT	-	4	Enquire
