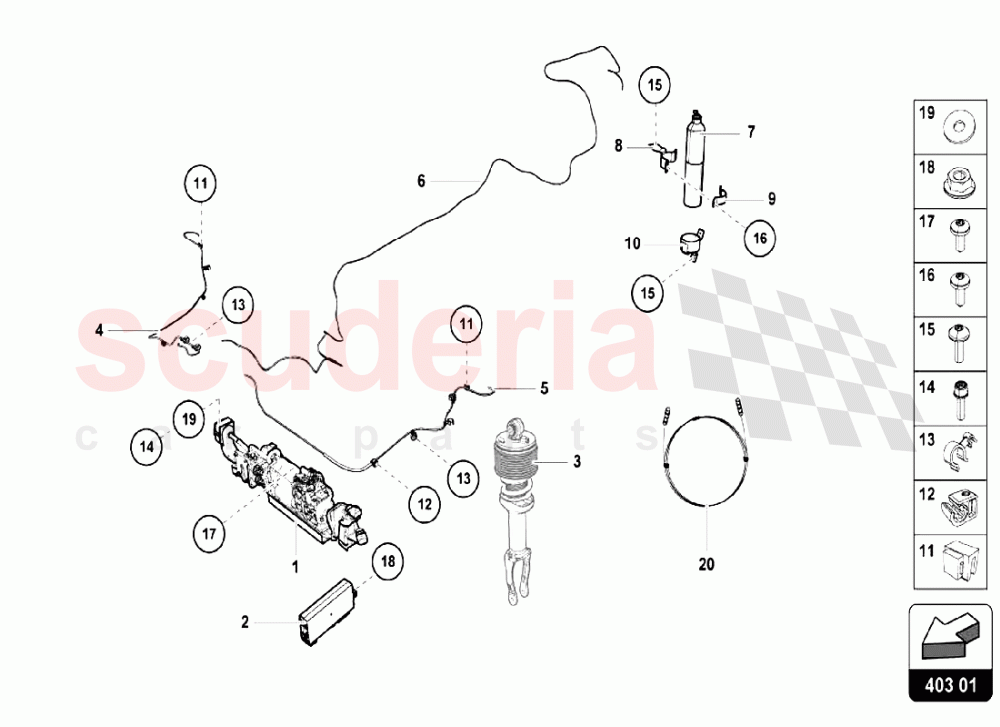

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4S0616007D	LIFTING SYSTEM COMPRESSOR	4S0616007D LIFTING SYSTEM COMPRESSOR	-	1	Enquire
002	4S0959257	LIFTING SYSTEM CONTROL UNIT	4S0959257 LIFTING SYSTEM CONTROL UNIT	-	1	Enquire
004	4S0616620A	PRESSURE HOSE	4S0616620A PRESSURE HOSE	-	1	Enquire
005	4S0616619A	PRESSURE HOSE	4S0616619A PRESSURE HOSE	-	1	Enquire
007	4S0616203	PRESSURE ACCUMULATOR	4S0616203 PRESSURE ACCUMULATOR	-	1	Enquire
008	4S0616250B	ARM	4S0616250B ARM	-	1	Enquire
009	4S0616251A	ARM	4S0616251A ARM	-	1	Enquire
010	4S0616249A	BRACKET	4S0616249A BRACKET	-	1	Enquire
011	5M0971838A	CABLE TIE WITH TERMINAL SOCKET	5M0971838A CABLE TIE WITH TERMINAL SOCKET	-	5	Enquire
012	7LP611794	BRACKET	7LP611794 BRACKET	-	5	Enquire
013	N10567002	CABLE TIES	N10567002 CABLE TIES	-	5	Enquire
014	N91048802	SCREW WITH INT. SERRATIONS	N91048802 SCREW WITH INT. SERRATIONS	-	2	Enquire
015	N91096801	HEXAGON SOCKET FLAT HEAD BOLT	N91096801 HEXAGON SOCKET FLAT HEAD BOLT	-	3	Enquire
016	N90780904	OVAL HEXAGON SOCKET HEAD BOLT	N90780904 OVAL HEXAGON SOCKET HEAD BOLT	-	1	Enquire
017	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT	-	1	Enquire
018	N10017304	HEXAGON COLLAR NUT	N10017304 HEXAGON COLLAR NUT	-	1	Enquire
019	N90033308	WASHER	N90033308 WASHER	-	1	Enquire
020	4E0698141	REPAIR SET FOR AIR CHANNEL	4E0698141 REPAIR SET FOR AIR CHANNEL	-	1	Enquire
