Front Bumpers of Lamborghini Lamborghini Huracan LP580 Coupe

View All

Lamborghini Huracan LP580 Coupe - Front Bumpers

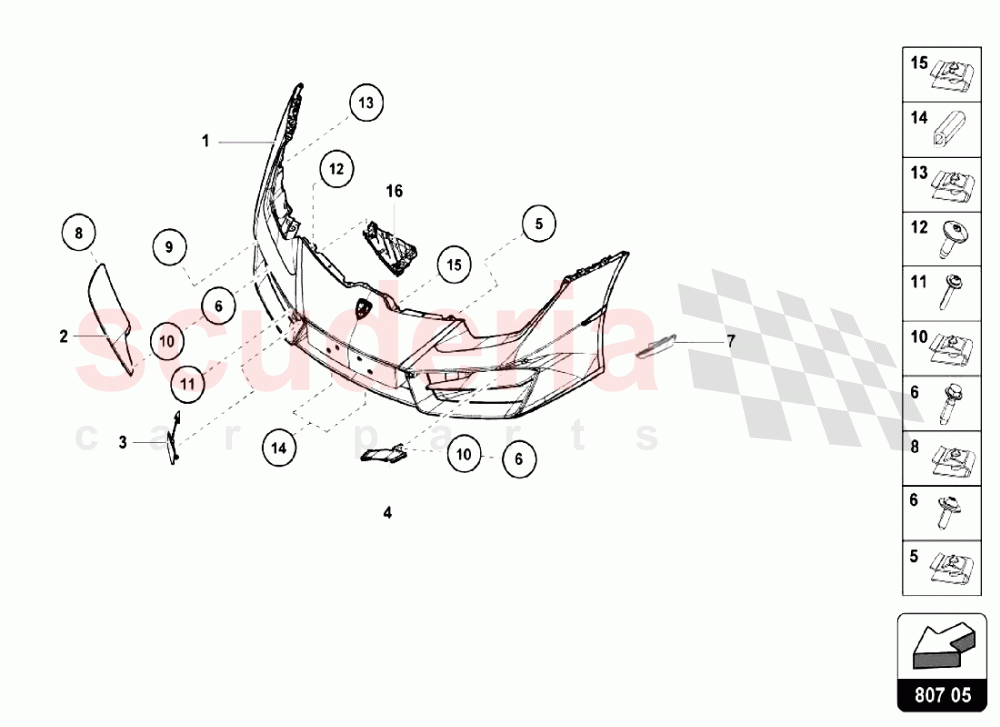

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4T0807103AA	Front Bumper	4T0807103AA Front Bumper with parking sensors and for all countries apart from China	-	1	Enquire
001	4T08070103F	FRONT BUMPERS	4T08070103F FRONT BUMPERS	-	1	Enquire
001	4T0807103J	FRONT BUMPER	4T0807103J FRONT BUMPER with parking sensors for China market.	-	1	Enquire
001	4T0807103F	FRONT BUMPER	4T0807103F FRONT BUMPER without parking sensors and for all countries apart from China.	-	1	Enquire
001	4T0807103H	FRONT BUMPERS	4T0807103H FRONT BUMPERS without parking sensors for China market.	-	1	Enquire
002	4T0807253	LH FIN	4T0807253 LH FIN	-	1	Enquire
002	4T0807253A	LH FIN	4T0807253A LH FIN	-	1	Enquire
002	4T0807254A	RH FIN style pack option	4T0807254A RH FIN style pack option	-	1	Enquire
002	4T0807254	RH FIN (std)	4T0807254 RH FIN (std)	-	1	Enquire
003	4T08035943FZ	LH TOWING HOOK COVER (SEE TABLE 807.03)	4T08035943FZ LH TOWING HOOK COVER (SEE TABLE 807.03)	-	1	Enquire
003	4T0803593Y9B	LH TOWING HOOK COVER (SHINY BLACK)	4T0803593Y9B LH TOWING HOOK COVER (SHINY BLACK)	-	1	Enquire
003	4T08035933FZ	LH TOWING HOOK COVER (BLACK MATT)	4T08035933FZ LH TOWING HOOK COVER (BLACK MATT)	-	1	Enquire
003	4T0803594Y9B	RH TOWING HOOK COVER (SHINY BLACK)	4T0803594Y9B RH TOWING HOOK COVER (SHINY BLACK)	-	1	Enquire
004	4T0807629Y9B	LOWER COVER (SHINY BLACK)	4T0807629Y9B LOWER COVER (SHINY BLACK)	-	1	Enquire
004	4T08076293FZ	LOWER COVER (BLACK MATT)	4T08076293FZ LOWER COVER (BLACK MATT)	-	1	Enquire
004	4T0807630Y9B	LOWER COVER (SHINY BLACK)	4T0807630Y9B LOWER COVER (SHINY BLACK)	-	1	Enquire
004	4T08076303FZ	LOWER COVER (BLACK MATT)	4T08076303FZ LOWER COVER (BLACK MATT)	-	1	Enquire
005	N90688703	SPEED NUT	N90688703 SPEED NUT	-	8	Enquire
006	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI)	-	16	Enquire
008	N10173402	HEXALOBULAR SOCKET	N10173402 HEXALOBULAR SOCKET	-	8	Enquire
009	N10424102	SCREW	N10424102 SCREW	-	4	Enquire
010	N90475903	SPEED NUT M5 X 13.6 X 11.5	N90475903 SPEED NUT M5 X 13.6 X 11.5	-	16	Enquire
011	N10415903	OVAL HEXAGON SOCKET HEAD BOLT	N10415903 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
012	N10405702	HEXAGON SOCKET HEAD BOLT	N10405702 HEXAGON SOCKET HEAD BOLT	-	8	Enquire
013	N90276701	SPEED NUT	N90276701 SPEED NUT	-	16	Enquire
014	4T0898539	SEALING FORNITEK (40MM)	4T0898539 SEALING FORNITEK (40MM)	-	1	Enquire
015	N01544807	CLIP	N01544807 CLIP	-	4	Enquire
016	4T0807130A	BRACKET BUMPER SUPPORT	4T0807130A BRACKET BUMPER SUPPORT	-	1	Enquire
016	4T0807129A	BRACKET	4T0807129A BRACKET	-	1	Enquire
