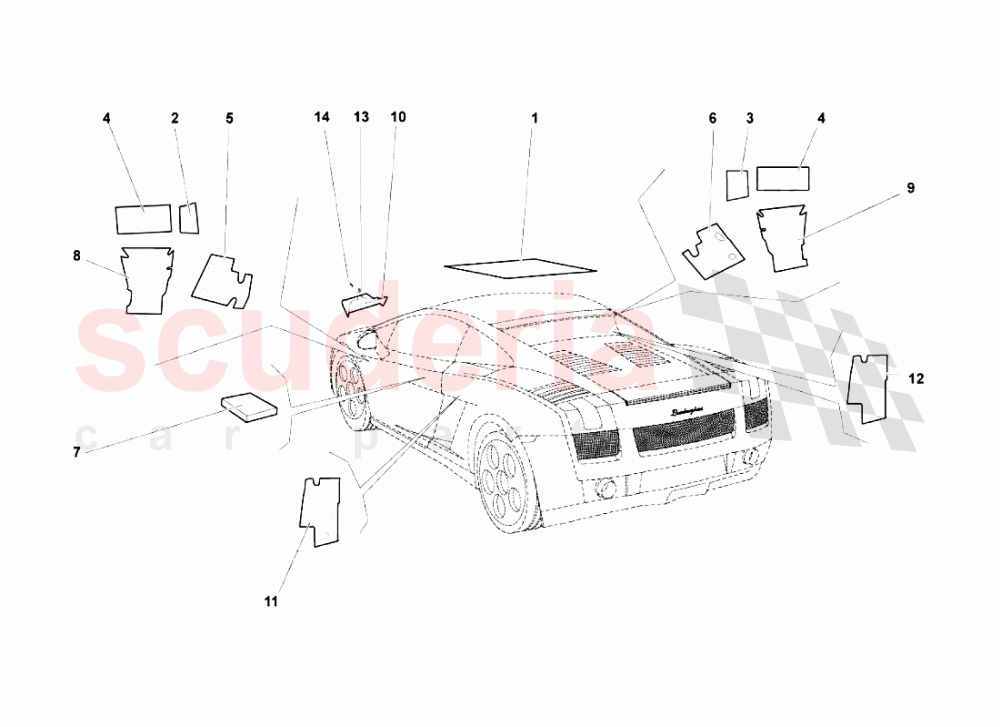

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400863248	ROOF INSULATION	400863248 ROOF INSULATION	$81.33	1
002	400863813	LH FRONT WHEELARCH INSULATION	400863813 LH FRONT WHEELARCH INSULATION	$11.35	1
003	400863814	RH FRONT WHEELARCH INSULATION	400863814 RH FRONT WHEELARCH INSULATION	$11.35	1
004	400863826	UPPER WHEELARCH INSULATION	400863826 UPPER WHEELARCH INSULATION	$12.09	2
005	400863923	DASHBOARD LH LOWER AREA INSULATION	400863923 DASHBOARD LH LOWER AREA INSULATION	$15.54	1
006	400863924	DASHBOARD RH LOWER AREA INSULATION	400863924 DASHBOARD RH LOWER AREA INSULATION	$15.54	1
007	400863949	TUNNEL INSULATION (E-GEAR)	400863949 TUNNEL INSULATION (E-GEAR)	$5.24	1
008	400864807	LH LOWER WHEELARCH INSULATION	400864807 LH LOWER WHEELARCH INSULATION	$11.77	1
009	400864808	RH LOWER WHEELARCH INSULATION	400864808 RH LOWER WHEELARCH INSULATION	$11.77	1
010	400915430	BATTERY COVER	400915430 BATTERY COVER	$157.28	1
011	408863895	LH B-PILLAR INSULATION	408863895 LH B-PILLAR INSULATION	$16.33	1
012	408863896	RH B-PILLAR INSULATION	408863896 RH B-PILLAR INSULATION	$16.33	1
013	WHT000916A	CLIP	WHT000916A CLIP	$15.41	1
014	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	$1.01	1
