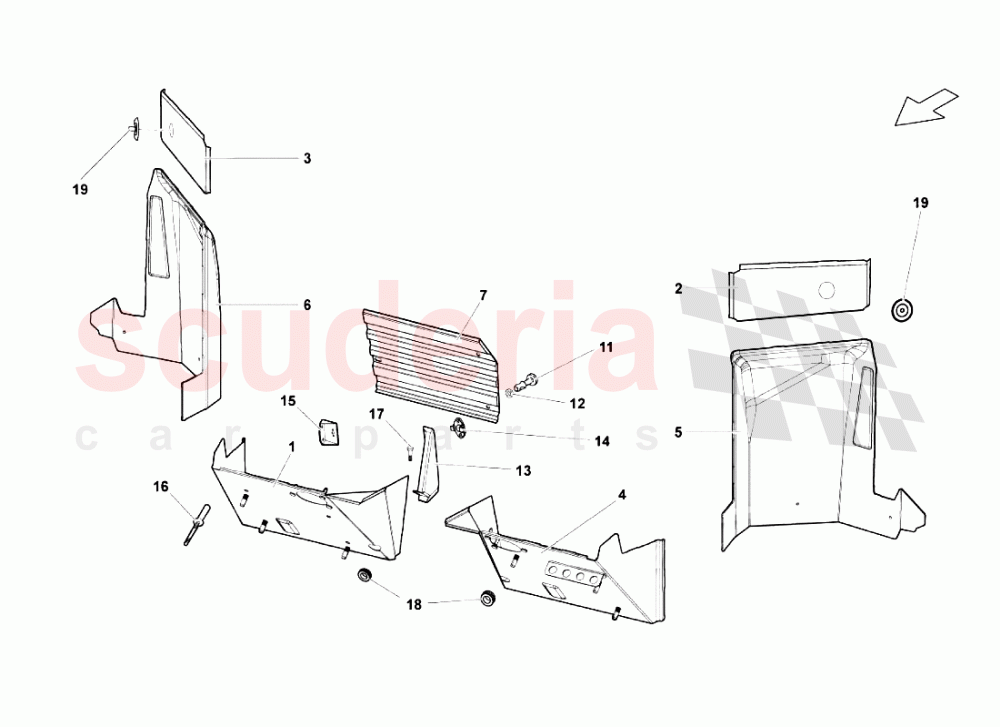

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400805486	FRONT PANEL	400805486 FRONT PANEL	$413.99	1
002	400805863	LH PLATE	400805863 LH PLATE	$206.32	1
003	400805864	RH PLATE	400805864 RH PLATE	$206.32	1
004	400805485	FRONT PANEL	400805485 FRONT PANEL	$423.39	1
005	408805115	RIGHT FRONT WHEEL ARCH	408805115 RIGHT FRONT WHEEL ARCH	$743.29	1
006	408805116	RIGHT FRONT WHEEL ARCH	408805116 RIGHT FRONT WHEEL ARCH	$743.29	1
007	402864420C	FOOTREST	402864420C FOOTREST	$82.67	1
007	401864420C	FOOTREST	401864420C FOOTREST	$82.67	1
011	400864519A	JOURNAL	400864519A JOURNAL	$17.47	3
012	400864179A	RUBBER RING	400864179A RUBBER RING	$2.02 MSRP: ~~7.06~~ (71.4% off)	3
013	402864775C	SUPPORT	402864775C SUPPORT	$55.58	1
014	470864994	CLIP	470864994 CLIP	$7.87	3
015	400864776A	SUPPORT	400864776A SUPPORT	$38.06	1
016	N90931101	POP RIVET IN STOCK	N90931101 POP RIVET IN STOCK	$0.16 MSRP: ~~7.37~~ (97.8% off)	6
017	N10049308	HEXAGON HEAD BOLT (COMBI) IN STOCK	N10049308 HEXAGON HEAD BOLT (COMBI) IN STOCK	$1.74	4
018	400820287	FAIRLEAD 18,5X25X1,5	400820287 FAIRLEAD 18,5X25X1,5	$9.67	2
019	8D0721495B	FAIRLEAD	8D0721495B FAIRLEAD	$14.58	2
