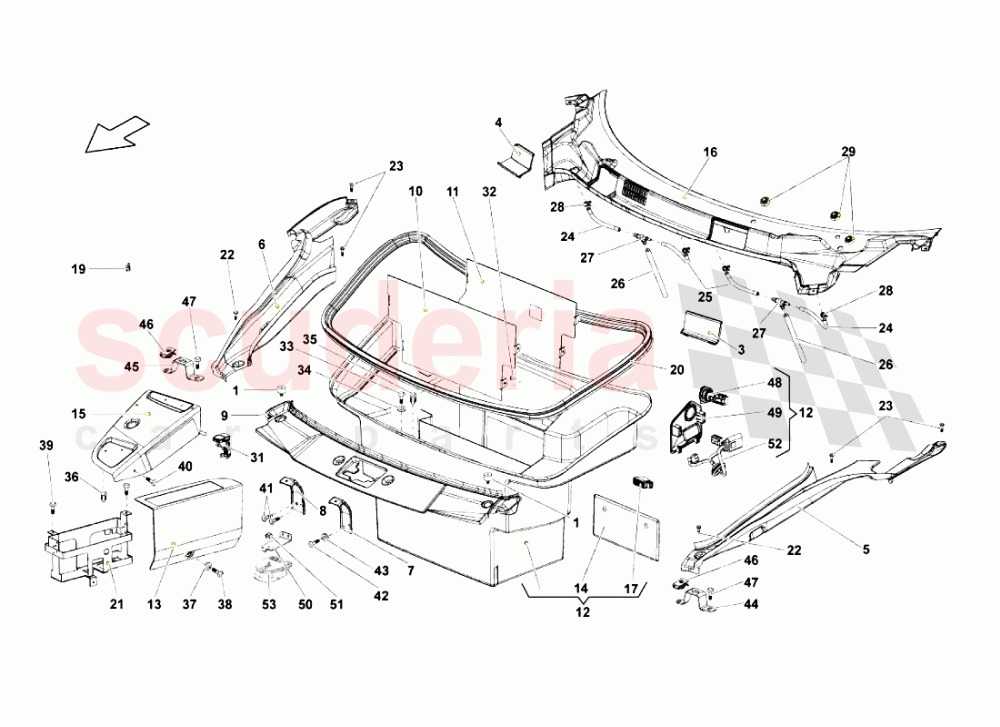

Lamborghini Gallardo Superleggera - Covering

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400863309	Rubber Support	400863309 Rubber Support	-	2	Enquire
003	400815715	LID, LH	400815715 LID, LH	-	1	Enquire
004	400815716	LID, RH	400815716 LID, RH	-	1	Enquire
005	400821169A	COVER, LH	400821169A COVER, LH	-	1	Enquire
006	400821170A	Cover RH	400821170A Cover RH	-	1	Enquire
007	400857913A	FIXING CORNER	400857913A FIXING CORNER	-	1	Enquire
008	400857914A	FIXING CORNER	400857914A FIXING CORNER	-	1	Enquire
009	400857161A	COVER PLATE BOOT TRIM	400857161A COVER PLATE BOOT TRIM	-	1	Enquire
012	403863362	LUGGAGE COMPARMENT ASS	403863362 LUGGAGE COMPARMENT ASS (WITHAUT PREDISPOSITION FOR CD CHANGER OR NAVIGATION SYSTEM)	-	1	Enquire
012	400863362AS	LUGGAGE COMPARMENT ASS	400863362AS LUGGAGE COMPARMENT ASS (WITH PREDISPOSITION FOR I-POD / TV TUNER) CHANGER / OUTLET 12V)	-	1	Enquire
013	400863399J	CD CHANGER COVER (WITH PREDISPOSITION FOR USB)	400863399J CD CHANGER COVER (WITH PREDISPOSITION FOR USB)	-	1	Enquire
013	400863399E	CD CHANGER COVER (WITH PREDISPOSITION FOR OUTLET 12V)	400863399E CD CHANGER COVER (WITH PREDISPOSITION FOR OUTLET 12V)	-	1	Enquire
013	400863399N	CD CHANGER COVER (WITH PREDISPOSITION FOR USB / OUTLET 12V)	400863399N CD CHANGER COVER (WITH PREDISPOSITION FOR USB / OUTLET 12V)	-	1	Enquire
013	400863399H	CD CHANGER COVER 12V)	400863399H CD CHANGER COVER 12V)	-	1	Enquire
014	403863439	BATTERY INSPECTION LID	403863439 BATTERY INSPECTION LID	-	1	Enquire
015	400863505B	TV TUNER COVER (NAVIGATION SYSTEM WITH COLOUR DISPLAY)	400863505B TV TUNER COVER (NAVIGATION SYSTEM WITH COLOUR DISPLAY)	-	1	Enquire
016	402819413C	COWL TOP COVER, RHD	402819413C COWL TOP COVER, RHD	-	1	Enquire
017	4B0947415A	LUGGAGE COMPARTMENT LAMP	4B0947415A LUGGAGE COMPARTMENT LAMP	-	1	Enquire
019	N90685101	BRACKET FOR CONNECTOR HOUSING	N90685101 BRACKET FOR CONNECTOR HOUSING	-	1	Enquire
020	400864669	FRONT HOOD COMPARTMENT	400864669 FRONT HOOD COMPARTMENT	-	1	Enquire
021	400863762B	CD LOADER SUPPORT BRACKET	400863762B CD LOADER SUPPORT BRACKET	-	1	Enquire
022	N10284905	SCREW M6X8.0	N10284905 SCREW M6X8.0	-	4	Enquire
023	1Z0860505C	SCREW	1Z0860505C SCREW	-	4	Enquire
024	400819976	HOSE (L 315 MM)	400819976 HOSE (L 315 MM)	-	2	Enquire
025	400819975	HOSE (L 272 MM)	400819975 HOSE (L 272 MM)	-	2	Enquire
026	400819124	HOSE (L 624 MM)	400819124 HOSE (L 624 MM)	-	2	Enquire
027	N90693001	CONNECTOR	N90693001 CONNECTOR	-	2	Enquire
028	N10310001	CLAMP	N10310001 CLAMP	-	4	Enquire
029	1J0955276B	CAP	1J0955276B CAP	-	3	Enquire
031	1K0919341B	OUTLET 12V	1K0919341B OUTLET 12V	-	1	Enquire
033	WHT000757	SCREW	WHT000757 SCREW	-	4	Enquire
034	N116945	WASHER	N116945 WASHER	-	4	Enquire
037	N10612001	WASHER	N10612001 WASHER	-	1	Enquire
038	N10680601	HEXAGON SOCKET FLAT HEAD BOLT	N10680601 HEXAGON SOCKET FLAT HEAD BOLT	-	1	Enquire
039	WHT001190	ROUND HD. SCREW	WHT001190 ROUND HD. SCREW	-	2	Enquire
040	WHT001190	ROUND HD. SCREW	WHT001190 ROUND HD. SCREW	-	1	Enquire
041	N90847903	Screw M6X15	N90847903 Screw M6X15	-	2	Enquire
041	N10082911	SCREW M6X16	N10082911 SCREW M6X16	-	2	Enquire
042	WHT001194	SCREW	WHT001194 SCREW	-	2	Enquire
043	WHT000778	WASHER	WHT000778 WASHER	-	2	Enquire
