Rear Frame Elements 2 of Lamborghini Lamborghini Gallardo Superleggera

View All

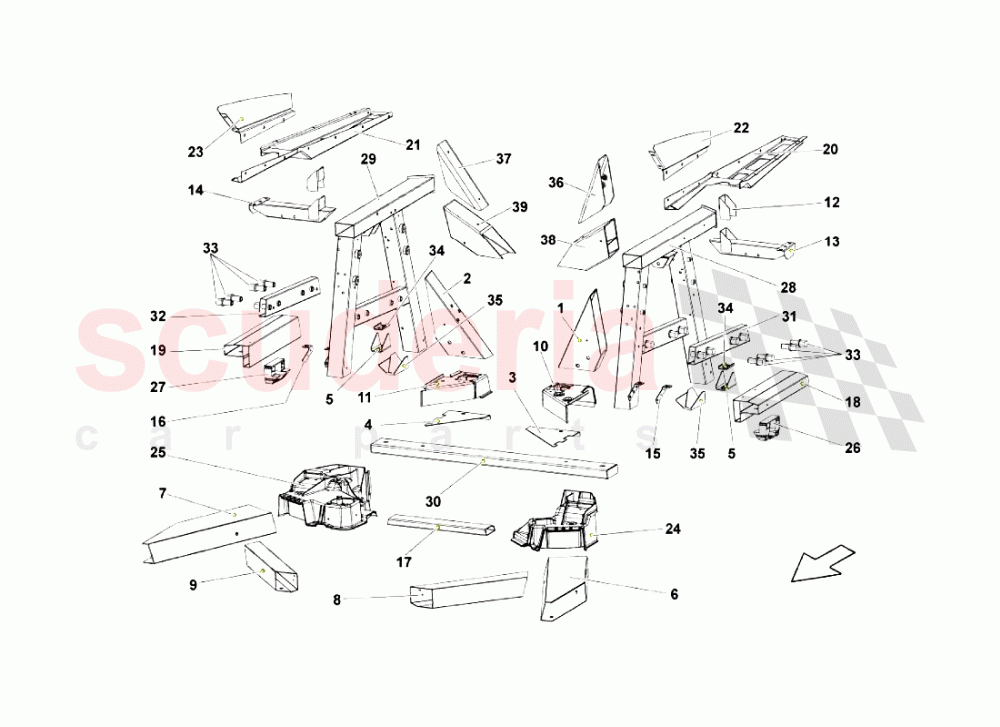

Lamborghini Gallardo Superleggera - Rear Frame Elements 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400801691	SUPPORT	400801691 SUPPORT	-	1	Enquire
002	400801692	SUPPORT	400801692 SUPPORT	-	1	Enquire
003	400803087	LH SHEET	400803087 LH SHEET	-	1	Enquire
004	400803088	RH SHEET	400803088 RH SHEET	-	1	Enquire
006	400803501	SIDE MEMBER	400803501 SIDE MEMBER	-	1	Enquire
007	400803502	SIDE MEMBER	400803502 SIDE MEMBER	-	1	Enquire
008	400803691	BRACKET	400803691 BRACKET	-	1	Enquire
009	400803692	BRACKET	400803692 BRACKET	-	1	Enquire
010	400804087	INTERSECTION PART	400804087 INTERSECTION PART	-	1	Enquire
011	400804088	INTERSECTION PART	400804088 INTERSECTION PART	-	1	Enquire
012	400809465	SUPPORT	400809465 SUPPORT	-	2	Enquire
013	400810297	LH BRACKET	400810297 LH BRACKET	-	1	Enquire
014	400810298	RH BRACKET	400810298 RH BRACKET	-	1	Enquire
015	400813545	SUPPORT	400813545 SUPPORT	-	1	Enquire
016	400813546	SUPPORT	400813546 SUPPORT	-	1	Enquire
017	400813631	MOTOR CROSS MEMBER	400813631 MOTOR CROSS MEMBER	-	1	Enquire
018	400813709	SIDE MEMBER	400813709 SIDE MEMBER	-	1	Enquire
019	400813710	SIDE MEMBER	400813710 SIDE MEMBER	-	1	Enquire
020	408809081	PART TO INSERT	408809081 PART TO INSERT	-	1	Enquire
021	408809082	PART TO INSERT	408809082 PART TO INSERT	-	1	Enquire
022	408809967	LID	408809967 LID	-	1	Enquire
023	408809968	LID	408809968 LID	-	1	Enquire
024	400801193E	CONNECTING PIECE	400801193E CONNECTING PIECE	-	1	Enquire
025	400801194E	CONNECTING PIECE	400801194E CONNECTING PIECE	-	1	Enquire
026	400804901F	SUPPORT	400804901F SUPPORT	-	1	Enquire
027	400804902F	SUPPORT	400804902F SUPPORT	-	1	Enquire
028	400809119F	LH SHOCK ABSORBER ASSEMBLY BRACKET	400809119F LH SHOCK ABSORBER ASSEMBLY BRACKET	-	1	Enquire
029	400809120F	RH SHOCK ABSORBER ASSEMBLY BRACKET	400809120F RH SHOCK ABSORBER ASSEMBLY BRACKET	-	1	Enquire
030	400813623F	CROSS MEMBER	400813623F CROSS MEMBER	-	1	Enquire
031	400813799F	SIDE MEMBER	400813799F SIDE MEMBER	-	1	Enquire
032	400813800F	SIDE MEMBER	400813800F SIDE MEMBER	-	1	Enquire
033	400813820E	Sleeve	400813820E Sleeve	-	8	Enquire
035	400803384A	RH STABILIZING BRACKET	400803384A RH STABILIZING BRACKET	-	1	Enquire
035	400803383A	LH STABILIZING BRACKET	400803383A LH STABILIZING BRACKET	-	1	Enquire
