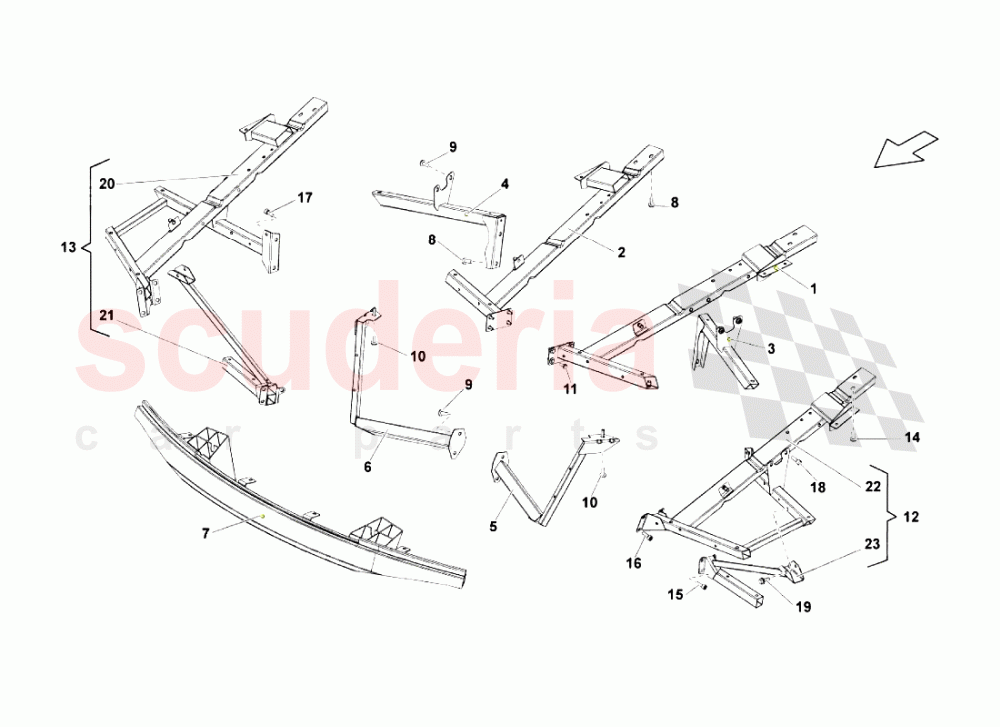

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400805099	FRONT LEFT SIDE MEMBER	400805099 FRONT LEFT SIDE MEMBER	$6,081.99	1
002	400805100	FRONT RIGHT SIDE MEMBER	400805100 FRONT RIGHT SIDE MEMBER	$6,055.10	1
003	400805315	REINFORCEMENT	400805315 REINFORCEMENT	$2,076.60	1
004	400805316	REINFORCEMENT	400805316 REINFORCEMENT	$2,076.60	1
005	400806635	LEFT SUPPORT	400806635 LEFT SUPPORT	$3,783.60	1
006	400806636	RIGHT SUPPORT	400806636 RIGHT SUPPORT	$1,034.95	1
007	400807107A	Front Bumper Frame	400807107A Front Bumper Frame	$6,303.74	1
008	N10347804	HEXAGON SOCKET HEAD BOLT (COMBI)	N10347804 HEXAGON SOCKET HEAD BOLT (COMBI)	$1.68	8
009	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT	$11.56	8
010	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT	$11.56	2
011	N10009507	HEXAGON HEAD BOLT (COMBI)	N10009507 HEXAGON HEAD BOLT (COMBI)	$0.80 MSRP: ~~7.30~~ (89% off)	8
