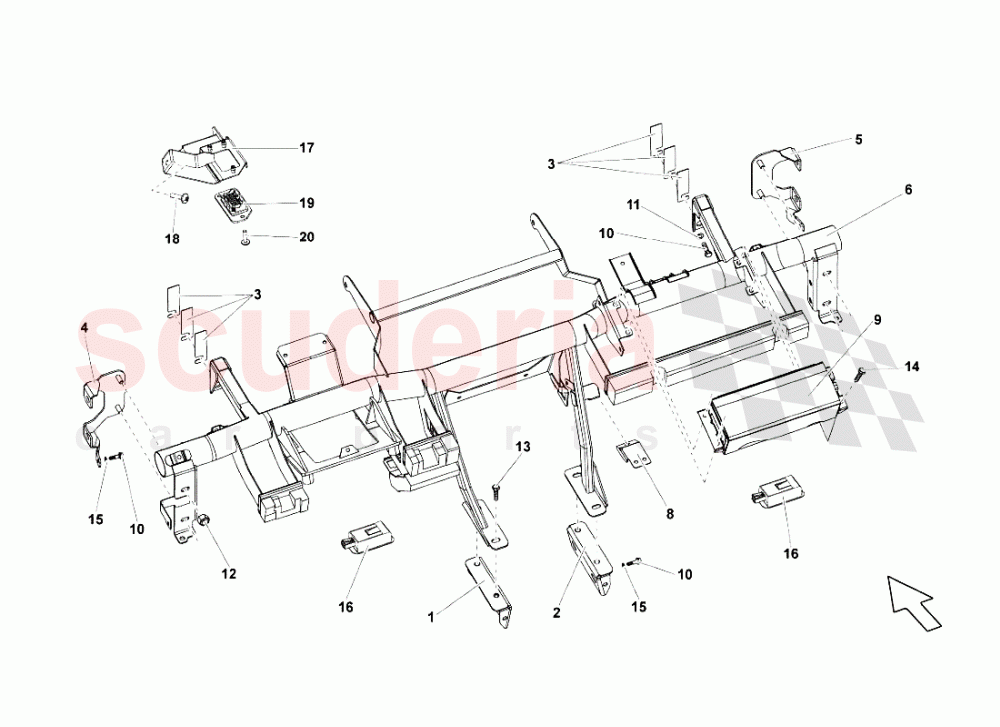

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400857195A	LH BRACKET	400857195A LH BRACKET	-	1	Enquire
002	400857196A	RH BRACKET	400857196A RH BRACKET	-	1	Enquire
004	400857245B	LH BRACKET	400857245B LH BRACKET	-	1	Enquire
005	400857246B	RH BRACKET	400857246B RH BRACKET	-	1	Enquire
006	401857017E	CROSS MEMBER (ADDITIONAL LIGHTS)	401857017E CROSS MEMBER (ADDITIONAL LIGHTS) Left Hand Drive	-	1	Enquire
006	401857017D	CROSS MEMBER	401857017D CROSS MEMBER	-	1	Enquire
008	401857689	BRACKET	401857689 BRACKET	-	1	Enquire
009	3D0880204D	AIR BAG MODULE	3D0880204D AIR BAG MODULE	-	1	Enquire
010	N91048802	SCREW WITH INT. SERRATIONS	N91048802 SCREW WITH INT. SERRATIONS	-	10	Enquire
011	N90536602	WASHER	N90536602 WASHER	-	2	Enquire
012	N10609202	HEXAGON COLLAR NUT	N10609202 HEXAGON COLLAR NUT	-	4	Enquire
013	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
014	N90708003	SCREW M6X14	N90708003 SCREW M6X14	-	4	Enquire
015	N90899502	WASHER	N90899502 WASHER	-	8	Enquire
016	4E0947415	LIGHT	4E0947415 LIGHT	-	2	Enquire
017	401857278	OBD SUPPORT	401857278 OBD SUPPORT	-	1	Enquire
018	N90900401	HEX SOCKET OVAL HEAD COLLARED	N90900401 HEX SOCKET OVAL HEAD COLLARED	-	3	Enquire
019	470858357	TRIM	470858357 TRIM	-	1	Enquire
020	N10637302	OVAL HEXAGON SOCKET HEAD BOLT	N10637302 OVAL HEXAGON SOCKET HEAD BOLT	-	3	Enquire
