Front Arms of Lamborghini Lamborghini Gallardo LP560 Coupe

View All

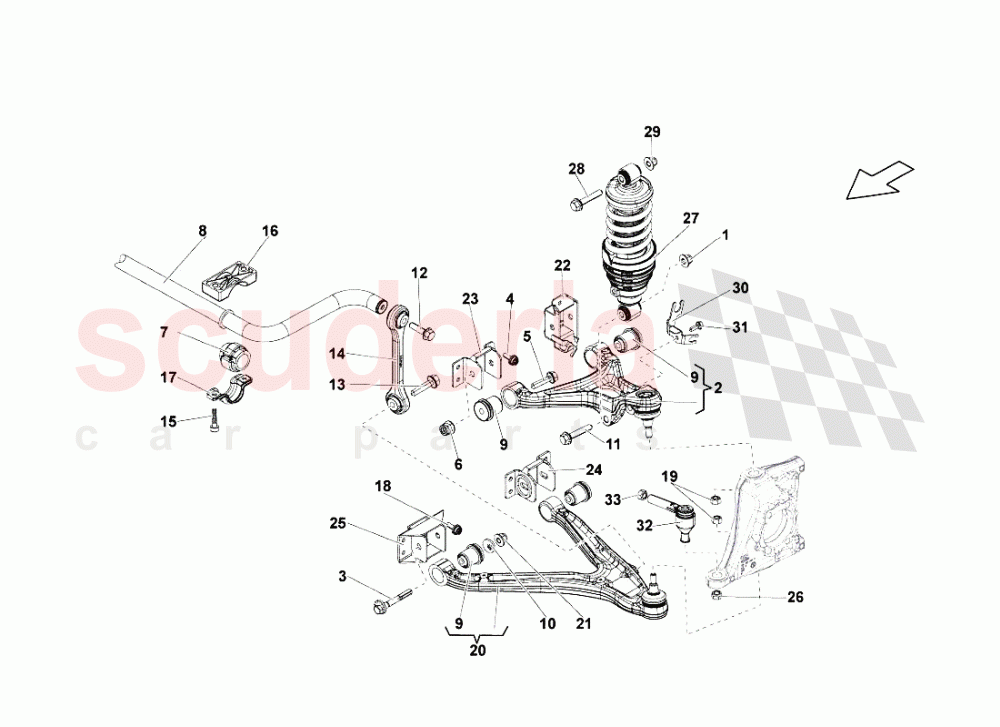

Lamborghini Gallardo LP560 Coupe - Front Arms

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N10106402	HEXAGON COLLAR NUT SELF-LOCKING	N10106402 HEXAGON COLLAR NUT SELF-LOCKING	$2.50	2

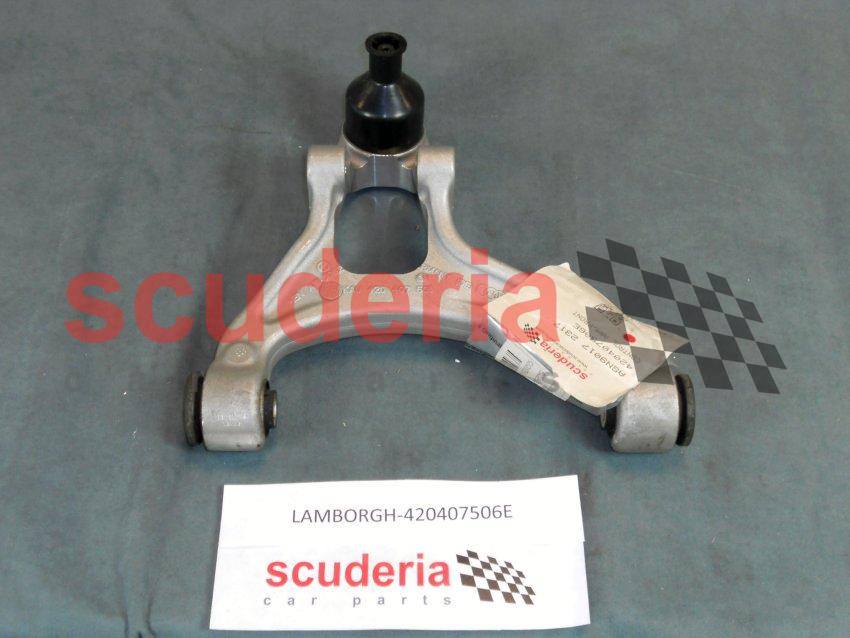

002	420407506E	RH UPPER ARM	420407506E RH UPPER ARM	$513.44	1

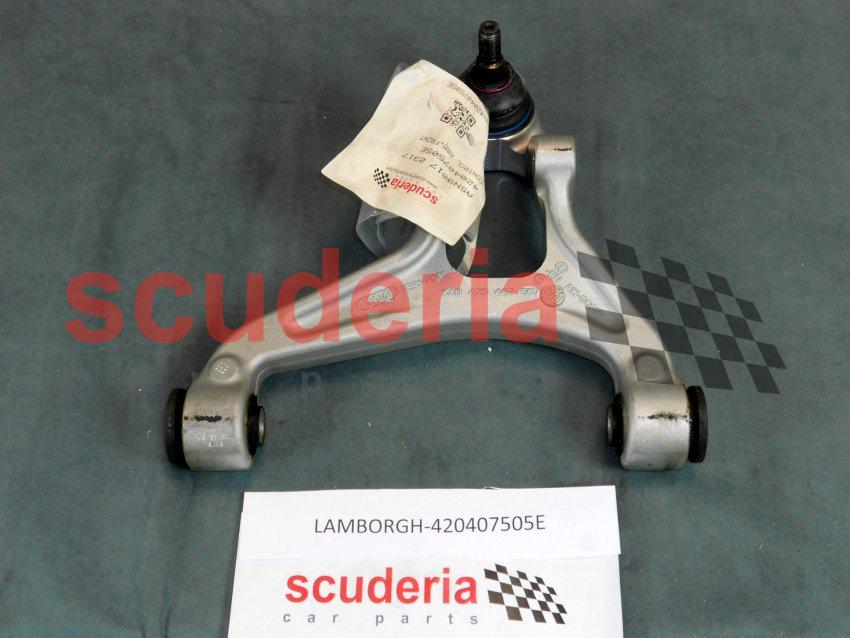

002	420407505E	LH Upper Arm	420407505E LH Upper Arm	$513.44	1
003	WHT002262	ECCENTRIC BOLT	WHT002262 ECCENTRIC BOLT	$14.99	4
004	N10689301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10689301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.11	16
005	N10428002	HEX COLLARED BOLT	N10428002 HEX COLLARED BOLT	$6.27	4
006	N10106402	HEXAGON COLLAR NUT SELF-LOCKING	N10106402 HEXAGON COLLAR NUT SELF-LOCKING	$2.50	2
007	4D0411327J	RUBBER BUSH	4D0411327J RUBBER BUSH	$181.16	2
008	420411309	FRONT STABILIZER BAR	420411309 FRONT STABILIZER BAR	$370.96	1
008	400411309F	FRONT STABILIZER BAR (2WD - VALENTINO BALBONI)	400411309F FRONT STABILIZER BAR (2WD - VALENTINO BALBONI)	$327.29	1
010	WHT001676	ECCENTRIC WASHER	WHT001676 ECCENTRIC WASHER	$1.74 MSRP: ~~7.27~~ (76.1% off)	4
011	N10629501	JOURNAL M12X1.50X125X90	N10629501 JOURNAL M12X1.50X125X90	$8.62	2
012	N10699901	HEXAGON BOLT	N10699901 HEXAGON BOLT	$3.77	2
013	N10314506	HEX COLLARED BOLT	N10314506 HEX COLLARED BOLT	$4.64	4
014	420407465	Connecting Rod	420407465 Connecting Rod	$169.39	2
015	N10682501	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10682501 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$2.78 MSRP: ~~7.07~~ (60.7% off)	4
016	420411031A	ANTI-ROLL BAR BEARING BRACKET	420411031A ANTI-ROLL BAR BEARING BRACKET	$25.42	2
017	4D0411336G	CLAMP	4D0411336G CLAMP	$5.85	2
018	N10689301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10689301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.11	16
019	WHT004898	HEXAGON COLLAR NUT SELF-LOCKING	WHT004898 HEXAGON COLLAR NUT SELF-LOCKING	$7.13	4

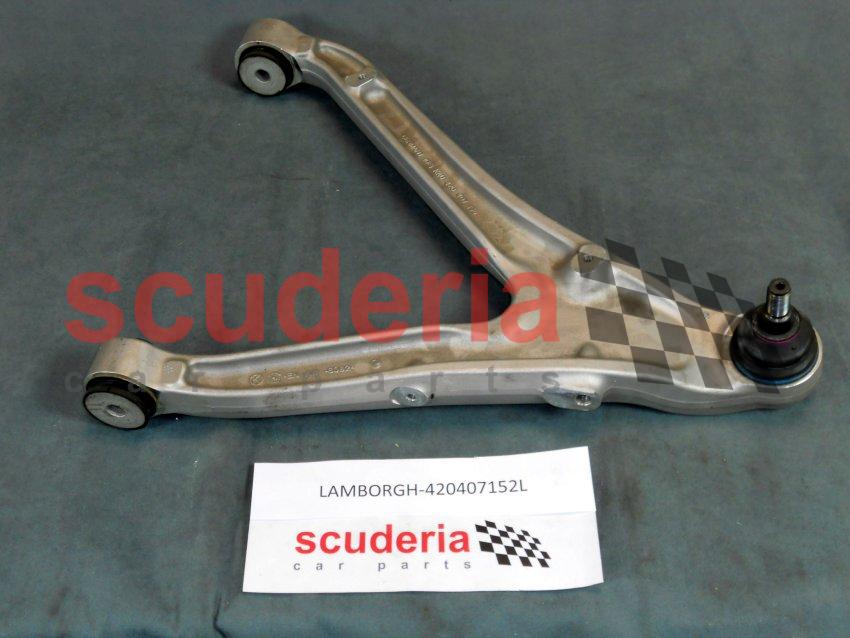

020	420407152L	RH LOWER ARM	420407152L RH LOWER ARM	$572.59	1
020	420407151L	LH LOWER ARM	420407151L LH LOWER ARM	$572.59	1
021	N10106402	HEXAGON COLLAR NUT SELF-LOCKING	N10106402 HEXAGON COLLAR NUT SELF-LOCKING	$2.50	4
022	420407458B	RIGHT SUPPORT	420407458B RIGHT SUPPORT	$56.52	1
022	420407457B	LEFT SUPPORT	420407457B LEFT SUPPORT	$56.52	1
023	420407458F	RIGHT SUPPORT	420407458F RIGHT SUPPORT	$553.78	1
023	420407457F	LEFT SUPPORT	420407457F LEFT SUPPORT	$553.78	1
024	420407457H	LEFT SUPPORT	420407457H LEFT SUPPORT	$56.52	1
024	420407458H	RIGHT SUPPORT	420407458H RIGHT SUPPORT	$56.52	1
025	400407457	SUPPORT	400407457 SUPPORT	$164.00	2
026	N90848406	NUT M12X1.5	N90848406 NUT M12X1.5	$7.32	2
027	400412019BP	SHOCK ABSORBER (STANDARD - 2WD - VALENTINO BALBONI)	400412019BP SHOCK ABSORBER (STANDARD - 2WD - VALENTINO BALBONI)	$1,433.00	2
027	400412019CA	SHOCK ABSORBER (SPORT)	400412019CA SHOCK ABSORBER (SPORT)	$1,433.00	2
027	400412019CD	SHOCK ABSORBER (COMFORT/LIFTING SYSTEM - BILSTEIN)	400412019CD SHOCK ABSORBER (COMFORT/LIFTING SYSTEM - BILSTEIN)	$4,596.76	2
027	400412019CC	SHOCK ABSORBER (COMFORT)	400412019CC SHOCK ABSORBER (COMFORT)	$1,433.00	2
027	400412019CB	SHOCK ABSORBER (SPORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	400412019CB SHOCK ABSORBER (SPORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	$6,054.58	2
027	400412019BS	SHOCK ABSORBER (STANDARD - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	400412019BS SHOCK ABSORBER (STANDARD - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	$1,433.00	2
027	400412019BN	SHOCK ABSORBER (STANDARD/LIFTING SYSTEM - 2WD - VALENTINO BALBONI)	400412019BN SHOCK ABSORBER (STANDARD/LIFTING SYSTEM - 2WD - VALENTINO BALBONI)	$3,523.55	2
027	400412019BT	SHOCK ABSORBER (STANDARD/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	400412019BT SHOCK ABSORBER (STANDARD/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	$6,253.74	2
028	N10428002	HEX COLLARED BOLT	N10428002 HEX COLLARED BOLT	$6.27	2
029	N10106402	HEXAGON COLLAR NUT SELF-LOCKING	N10106402 HEXAGON COLLAR NUT SELF-LOCKING	$2.50	2
030	400971846A	RH BRACKET	400971846A RH BRACKET	$36.56	1
030	400971845A	LH BRACKET	400971845A LH BRACKET	$36.56	1
031	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT	$0.85	2
032	420419811A	BALL JOINT COUPLING	420419811A BALL JOINT COUPLING	$181.45	2
033	N10218708	NUT M14X1.5	N10218708 NUT M14X1.5	$3.64 MSRP: ~~7.15~~ (49.1% off)	2
