Doors 3 of Lamborghini Lamborghini Gallardo LP560 Coupe

View All

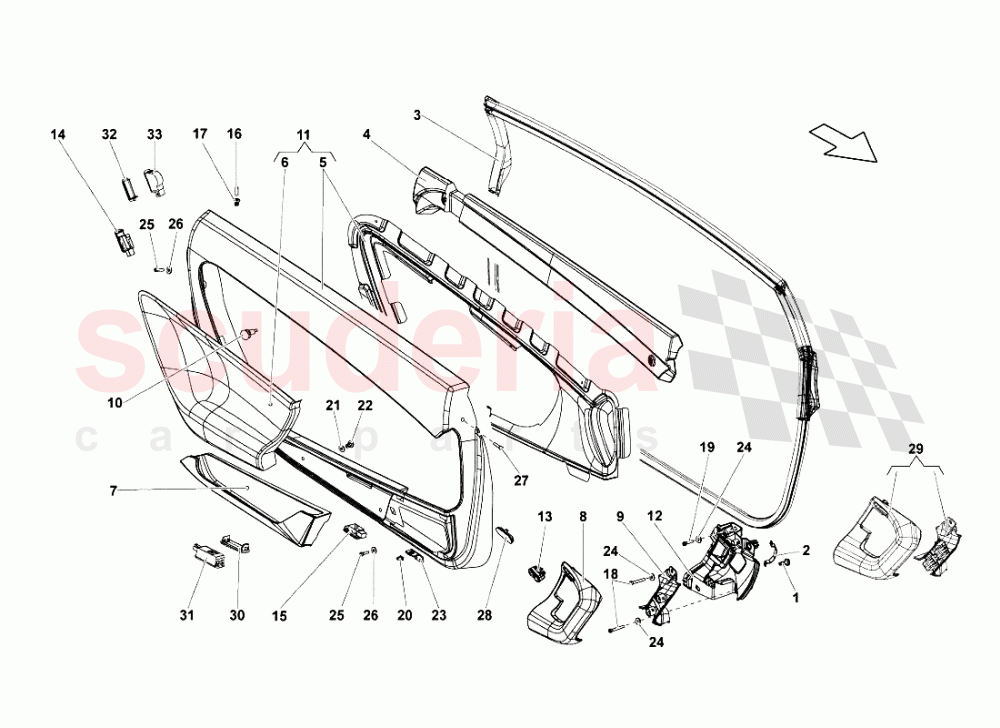

Lamborghini Gallardo LP560 Coupe - Doors 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT000767	SCREW	WHT000767 SCREW	$0.09 MSRP: ~~7.38~~ (98.8% off)	4
002	400035243	TWEETER SUPPORT BRACKET	400035243 TWEETER SUPPORT BRACKET	$11.41	2
003	400831707	LEFT DOOR WEATHERSTRIP, INNER	400831707 LEFT DOOR WEATHERSTRIP, INNER	$1,024.19	1
003	400831708	RIGHT DOOR WEATHERSTRIP, INNER	400831708 RIGHT DOOR WEATHERSTRIP, INNER	$1,024.19	1
004	400837967C	DOOR CRASH PAD	400837967C DOOR CRASH PAD	$70.02	1
004	400837968C	DOOR CRASH PAD	400837968C DOOR CRASH PAD	$70.02	1
007	400867131B	POCKET (SUPPLY VIN)	400867131B POCKET (SUPPLY VIN)	$2,305.11	1
007	400867132B	POCKET (SUPPLY VIN)	400867132B POCKET (SUPPLY VIN)	$2,305.11	1
007	400867132C	RIGHT POCKET (PERFORATED LEATHER INTERIOR - SUPPLY VIN)	400867132C RIGHT POCKET (PERFORATED LEATHER INTERIOR - SUPPLY VIN)	$692.22	1
007	400867131C	LEFT POCKET (PERFORATED LEATHER INTERIOR - SUPPLY VIN)	400867131C LEFT POCKET (PERFORATED LEATHER INTERIOR - SUPPLY VIN)	$692.22	1
008	400867172H	RH HANDLE UPPER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN)	400867172H RH HANDLE UPPER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN)	$1,565.85	1
008	400867172J	RH HANDLE UPPER PORTION (STANDARD)	400867172J RH HANDLE UPPER PORTION (STANDARD)	$189.54	1
008	400867171J	LH HANDLE UPPER PORTION (STANDARD)	400867171J LH HANDLE UPPER PORTION (STANDARD)	$189.54	1
008	400867171H	LH HANDLE UPPER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN)	400867171H LH HANDLE UPPER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN)	$1,565.85	1
008	400867171HSK1	LH HANDLE UPPER PORTION (BLACK LEATHER UPHOLSTERY)	400867171HSK1 LH HANDLE UPPER PORTION (BLACK LEATHER UPHOLSTERY)	$1,565.85	1
008	400867172HSK1	RH HANDLE UPPER PORTION (BLACK LEATHER UPHOLSTERY)	400867172HSK1 RH HANDLE UPPER PORTION (BLACK LEATHER UPHOLSTERY)	$1,565.85	1
008	400867172D	RH HANDLE UPPER PORTION (CARBON INTERIOR)	400867172D RH HANDLE UPPER PORTION (CARBON INTERIOR)	$3,998.66	1
008	400867171D	LH HANDLE UPPER PORTION (CARBON INTERIOR)	400867171D LH HANDLE UPPER PORTION (CARBON INTERIOR)	$3,998.66	1
009	400867195C	LH HANDLE CENTER PORTION (CARBON INTERIOR)	400867195C LH HANDLE CENTER PORTION (CARBON INTERIOR)	$3,319.88	1
009	400867196C	RH HANDLE CENTER PORTION (CARBON INTERIOR)	400867196C RH HANDLE CENTER PORTION (CARBON INTERIOR)	$3,319.88	1
009	400867195JSK1	LH HANDLE CENTER PORTION (BLACK LEATHER UPHOLSTERY)	400867195JSK1 LH HANDLE CENTER PORTION (BLACK LEATHER UPHOLSTERY)	$868.28	1
009	400867195J	LH HANDLE CENTER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN	400867195J LH HANDLE CENTER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN	$868.28	1
009	400867195G	LH HANDLE CENTER PORTION (STANDARD)	400867195G LH HANDLE CENTER PORTION (STANDARD)	$124.06	1
009	400867196J	RH HANDLE CENTER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN)	400867196J RH HANDLE CENTER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN)	$868.28	1
009	400867196G	RH HANDLE CENTER PORTION (STANDARD)	400867196G RH HANDLE CENTER PORTION (STANDARD)	$124.06	1
009	400867196JSK1	RH HANDLE CENTER PORTION (BLACK LEATHER UPHOLSTERY)	400867196JSK1 RH HANDLE CENTER PORTION (BLACK LEATHER UPHOLSTERY)	$868.28	1
010	400867299	FASTENER LYS FUSION, YELLOW	400867299 FASTENER LYS FUSION, YELLOW	$17.96	1
011	401867105G	LH DOOR PANEL ASSEMBLY (SUPPLY VIN)	401867105G LH DOOR PANEL ASSEMBLY (SUPPLY VIN)	$8,286.28	1
011	401867106G	RH DOOR PANEL ASSEMBLY (SUPPLY VIN)	401867106G RH DOOR PANEL ASSEMBLY (SUPPLY VIN)	$8,286.28	1
012	400868099C	INNER HANDLE WITH GRID LH (LEATHER UPHOLSTERY - SUPPLY VIN)	400868099C INNER HANDLE WITH GRID LH (LEATHER UPHOLSTERY - SUPPLY VIN)	$4,704.31	1
012	400868099CSK1	INNER HANDLE WITH GRID LH (BLACK LEATHER UPHOLSTERY)	400868099CSK1 INNER HANDLE WITH GRID LH (BLACK LEATHER UPHOLSTERY)	$4,704.31	1
012	400868099D	INNER HANDLE WITH GRID LH (CARBON INTERIOR)	400868099D INNER HANDLE WITH GRID LH (CARBON INTERIOR)	$5,504.02	1
012	400868100CSK1	INNER HANDLE WITH GRID RH (BLACK LEATHER UPHOLSTERY)	400868100CSK1 INNER HANDLE WITH GRID RH (BLACK LEATHER UPHOLSTERY)	$4,704.31	1
012	400868099J	INNER HANDLE WITH GRID LH	400868099J INNER HANDLE WITH GRID LH	$249.34	1
012	400868100N	INNER HANDLE WITH GRID RH	400868100N INNER HANDLE WITH GRID RH	$249.34	1
012	400868100F	INNER HANDLE WITH GRID RH (DECORATIVE INSERTS - SUPPLY VIN)	400868100F INNER HANDLE WITH GRID RH (DECORATIVE INSERTS - SUPPLY VIN)	$4,689.82	1
012	400868099F	INNER HANDLE WITH GRID LH (DECORATIVE INSERTS - SUPPLY VIN)	400868099F INNER HANDLE WITH GRID LH (DECORATIVE INSERTS - SUPPLY VIN)	$4,704.31	1
012	400868100C	INNER HANDLE WITH GRID RH (LEATHER UPHOLSTERY - SUPPLY VIN)	400868100C INNER HANDLE WITH GRID RH (LEATHER UPHOLSTERY - SUPPLY VIN)	$4,704.31	1
012	400868100D	INNER HANDLE WITH GRID RH (CARBON INTERIOR)	400868100D INNER HANDLE WITH GRID RH (CARBON INTERIOR)	$5,504.02	1
013	400962107B	DOOR LOCK/UNLOCK SWITCH (WITHOUT SERIGRAPHY)	400962107B DOOR LOCK/UNLOCK SWITCH (WITHOUT SERIGRAPHY)	$37.62	2
013	400962107A	DOOR LOCK/UNLOCK SWITCH (WITH SERIGRAPHY)	400962107A DOOR LOCK/UNLOCK SWITCH (WITH SERIGRAPHY)	$418.01	2
016	8N0919238	WARNING LAMP	8N0919238 WARNING LAMP	$54.85	1
017	8Z0919424A4PK	SLEEVE DWA	8Z0919424A4PK SLEEVE DWA	-	2	Enquire
018	N10613801	SCREW M 5X55.0	N10613801 SCREW M 5X55.0	$0.82 MSRP: ~~7.29~~ (88.8% off)	4
019	N10544302	SOCKET HEAD BOLT	N10544302 SOCKET HEAD BOLT	$0.98 MSRP: ~~7.27~~ (86.5% off)	2
020	N90526602	SPEED NUT	N90526602 SPEED NUT	$1.16 MSRP: ~~7.31~~ (84.1% off)	2
021	WHT002961	WASHER	WHT002961 WASHER	$0.42	4
022	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	N10586401 OVAL HEXAGON SOCKET HEAD BOLT	$0.95	4
023	400867160A	RH BRACKET	400867160A RH BRACKET	$22.66	1
023	400867159A	LH BRACKET	400867159A LH BRACKET	$22.66	1
024	N01154012	WASHER	N01154012 WASHER	$0.09 MSRP: ~~7.38~~ (98.8% off)	6
025	WHT003111	SCREW M5X16	WHT003111 SCREW M5X16	$1.13 MSRP: ~~7.21~~ (84.3% off)	2
026	WHT000778	WASHER	WHT000778 WASHER	$0.64	2
027	N10621601	HEX SOCKET OVAL HEAD COLLARED	N10621601 HEX SOCKET OVAL HEAD COLLARED	$2.29	2
030	8E0867443	DUMMY COVER	8E0867443 DUMMY COVER	$10.49	2
031	4E0947415	LIGHT	4E0947415 LIGHT	$26.24	2
032	8P0947412	REAR LIGHT REFLECTOR	8P0947412 REAR LIGHT REFLECTOR	$8.62	2
033	6Y0947411	DOOR WARNING LIGHT	6Y0947411 DOOR WARNING LIGHT	$28.90	2
