Rear Arms of Lamborghini Lamborghini Gallardo LP560 Coupe

View All

Lamborghini Gallardo LP560 Coupe - Rear Arms

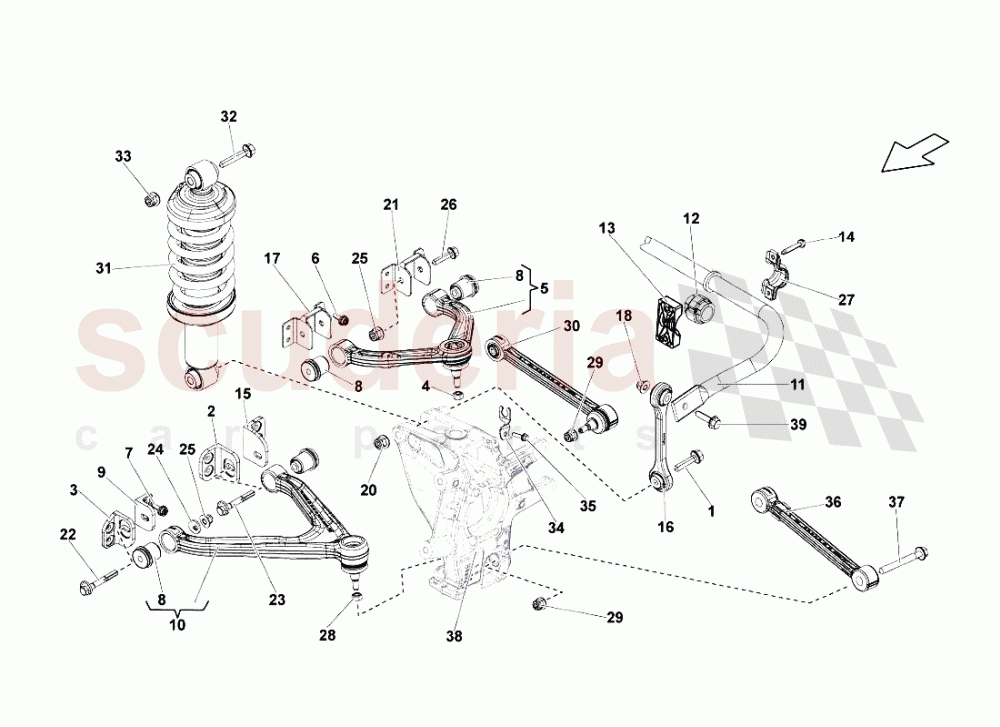

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N10716901	HEX COLLARED BOLT	N10716901 HEX COLLARED BOLT	$12.44	2
002	400501430	RIGHT SUPPORT	400501430 RIGHT SUPPORT	$53.35	1
002	400501429	LEFT SUPPORT	400501429 LEFT SUPPORT	$53.35	1
003	420501430E	RIGHT SUPPORT	420501430E RIGHT SUPPORT	$56.52	1
003	420501429E	LEFT SUPPORT	420501429E LEFT SUPPORT	$56.52	1
004	WHT004898	HEXAGON COLLAR NUT SELF-LOCKING	WHT004898 HEXAGON COLLAR NUT SELF-LOCKING	$7.13	2
005	420505323D	LH UPPER ARM	420505323D LH UPPER ARM	$506.74	1
005	420505324D	RH UPPER ARM	420505324D RH UPPER ARM	$506.74	1
006	N10689301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10689301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.11	4
007	N10689301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10689301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.11	4
009	420501430M	RIGHT SUPPORT	420501430M RIGHT SUPPORT	$56.52	1
009	420501429M	LEFT SUPPORT	420501429M LEFT SUPPORT	$61.15	1
010	420505312D	RH LOWER ARM	420505312D RH LOWER ARM	$523.41	1
010	420505311D	LH LOWER ARM	420505311D LH LOWER ARM use : 0R1400558	$506.74	1
011	400511409H	REAR STABILIZER BAR	400511409H REAR STABILIZER BAR	$392.49	1
011	400511409J	REAR STABILIZER BAR (2WD - VALENTINO BALBONI)	400511409J REAR STABILIZER BAR (2WD - VALENTINO BALBONI)	$487.89	1
012	4D0411327G	BUSHING	4D0411327G BUSHING	$14.11	2
012	4D0411327J	RUBBER BUSH	4D0411327J RUBBER BUSH	$181.16	2
013	420411031A	ANTI-ROLL BAR BEARING BRACKET	420411031A ANTI-ROLL BAR BEARING BRACKET	$25.42	2
014	N10682501	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10682501 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$2.78 MSRP: ~~7.07~~ (60.7% off)	4
015	400501429A	LEFT SUPPORT	400501429A LEFT SUPPORT	$53.35	1
015	400501430A	RIGHT SUPPORT	400501430A RIGHT SUPPORT	$53.35	1
016	420505465	Connecting Rod	420505465 Connecting Rod	$169.39	2
017	420407458F	RIGHT SUPPORT	420407458F RIGHT SUPPORT	$553.78	1
017	420407457F	LEFT SUPPORT	420407457F LEFT SUPPORT	$553.78	1
018	N10272302	HEXAGON COLLAR NUT SELF-LOCKING	N10272302 HEXAGON COLLAR NUT SELF-LOCKING	$2.42 MSRP: ~~7.14~~ (66.1% off)	2
020	N10106402	HEXAGON COLLAR NUT SELF-LOCKING	N10106402 HEXAGON COLLAR NUT SELF-LOCKING	$2.50	2
021	420407457F	LEFT SUPPORT	420407457F LEFT SUPPORT	$553.78	1
021	420407458F	RIGHT SUPPORT	420407458F RIGHT SUPPORT	$553.78	1
022	WHT002262	ECCENTRIC BOLT	WHT002262 ECCENTRIC BOLT	$14.99	2
023	WHT003176	SCREW M12X1.5X125	WHT003176 SCREW M12X1.5X125	$17.13	2
024	WHT001676	ECCENTRIC WASHER	WHT001676 ECCENTRIC WASHER	$1.74 MSRP: ~~7.27~~ (76.1% off)	4
025	N10106402	HEXAGON COLLAR NUT SELF-LOCKING	N10106402 HEXAGON COLLAR NUT SELF-LOCKING	$2.50	4
026	N10428002	HEX COLLARED BOLT	N10428002 HEX COLLARED BOLT	$6.27	4
027	4D0411336G	CLAMP	4D0411336G CLAMP	$5.85	2
028	WHT004898	HEXAGON COLLAR NUT SELF-LOCKING	WHT004898 HEXAGON COLLAR NUT SELF-LOCKING	$7.13	2
029	N90848406	NUT M12X1.5	N90848406 NUT M12X1.5	$7.32	2
031	400512019AM	SHOCK ABSORBER (STANDARD/LIFTING SYSTEM - 2WD - VALENTINO BALBONI)	400512019AM SHOCK ABSORBER (STANDARD/LIFTING SYSTEM - 2WD - VALENTINO BALBONI)	$2,462.79	2
031	400512019AR	SHOCK ABSORBER (COMFORT/LIFTING SYSTEM)	400512019AR SHOCK ABSORBER (COMFORT/LIFTING SYSTEM)	$1,214.64	2
031	400512019AQ	SHOCK ABSORBER (SPORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	400512019AQ SHOCK ABSORBER (SPORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	$2,320.12	2
031	400512019AP	SHOCK ABSORBER	400512019AP SHOCK ABSORBER	$2,729.61	2
032	N10428002	HEX COLLARED BOLT	N10428002 HEX COLLARED BOLT	$6.27	2
033	N10106402	HEXAGON COLLAR NUT SELF-LOCKING	N10106402 HEXAGON COLLAR NUT SELF-LOCKING	$2.50	2
034	4E0971845AR	BRACKET	4E0971845AR BRACKET	$9.08	2
035	N10082911	SCREW M6X16	N10082911 SCREW M6X16	$0.68	2
036	420501530C	CONNECTING ROD (FROM VIN ALA09566)	420501530C CONNECTING ROD (FROM VIN ALA09566) use : 420501530H	$1,071.25	2
037	N10695901	SCREW BM12X1.50X105X90 (FROM VIN ALA09566)	N10695901 SCREW BM12X1.50X105X90 (FROM VIN ALA09566)	$9.35	2
039	N10425302	HEX COLLARED BOLT	N10425302 HEX COLLARED BOLT	$5.94	2
