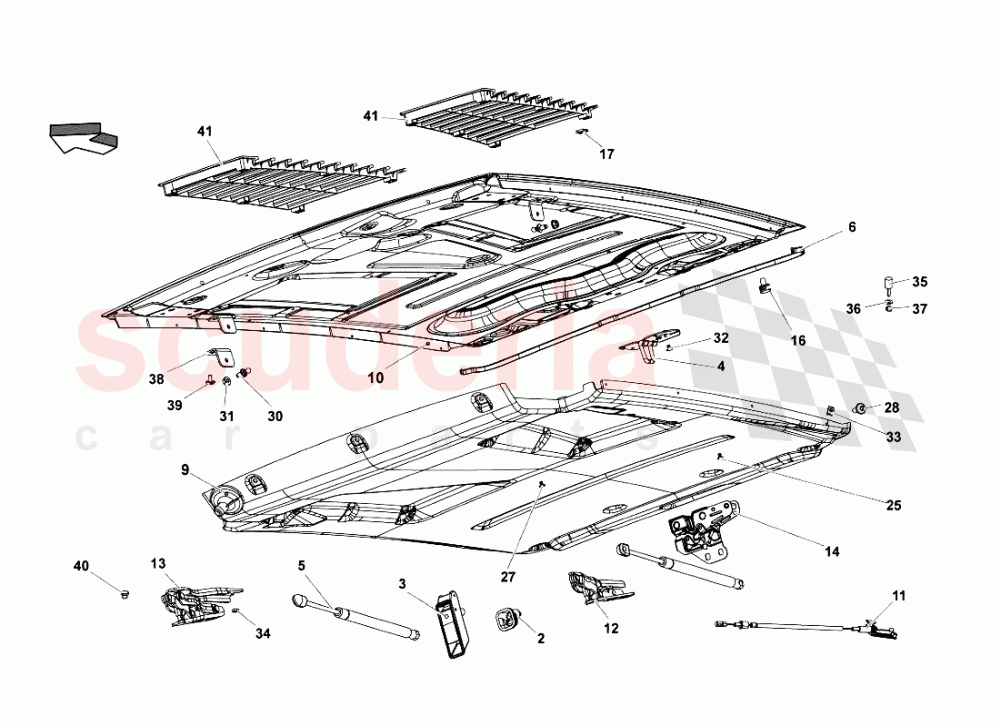

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	400813395	REAR BUMPER FAIRLEAD	400813395 REAR BUMPER FAIRLEAD	-	1	Enquire
003	400827185	HANDLE	400827185 HANDLE	-	1	Enquire
004	400827518B	STRIKER	400827518B STRIKER	-	2	Enquire
005	400827552A	Rear Tailgate Gas Strut	400827552A Rear Tailgate Gas Strut	-	1	Enquire
010	408827023C	ENGINE HOOD	408827023C ENGINE HOOD	-	1	Enquire
011	408827531A	ENGINE HOOD OPENING CABLE	408827531A ENGINE HOOD OPENING CABLE	-	1	Enquire
012	400823302A	LH HINGE	400823302A LH HINGE	-	1	Enquire
013	400823301A	RH HINGE	400823301A RH HINGE	-	1	Enquire
014	8E0823509D	HOOD LOCK	8E0823509D HOOD LOCK	-	1	Enquire
016	N0133481	SPRING PIN	N0133481 SPRING PIN	-	1	Enquire
017	N0154672	CLIP	N0154672 CLIP	-	12	Enquire
030	895827439D	BALL STUD	895827439D BALL STUD	-	1	Enquire
031	N10609202	HEXAGON COLLAR NUT	N10609202 HEXAGON COLLAR NUT	-	1	Enquire
032	N90532901	SCREW M6X16	N90532901 SCREW M6X16	-	2	Enquire
034	N90798805	HEXAGON COLLAR NUT	N90798805 HEXAGON COLLAR NUT	-	4	Enquire
035	400807333	SUPPORT	400807333 SUPPORT	-	2	Enquire
036	N01166623	WASHER	N01166623 WASHER	-	2	Enquire
037	N01111611	HEXAGON NUT	N01111611 HEXAGON NUT	-	2	Enquire
038	400827815	BRACKET	400827815 BRACKET	-	1	Enquire
039	N90737105	SCREW M6X12	N90737105 SCREW M6X12	-	2	Enquire
040	400823429	PUFFER	400823429 PUFFER	-	2	Enquire
041	400853626	ENGINE HOOD GRID, RH	400853626 ENGINE HOOD GRID, RH	-	1	Enquire
041	400853625	ENGINE HOOD GRID, LH	400853625 ENGINE HOOD GRID, LH	-	1	Enquire
