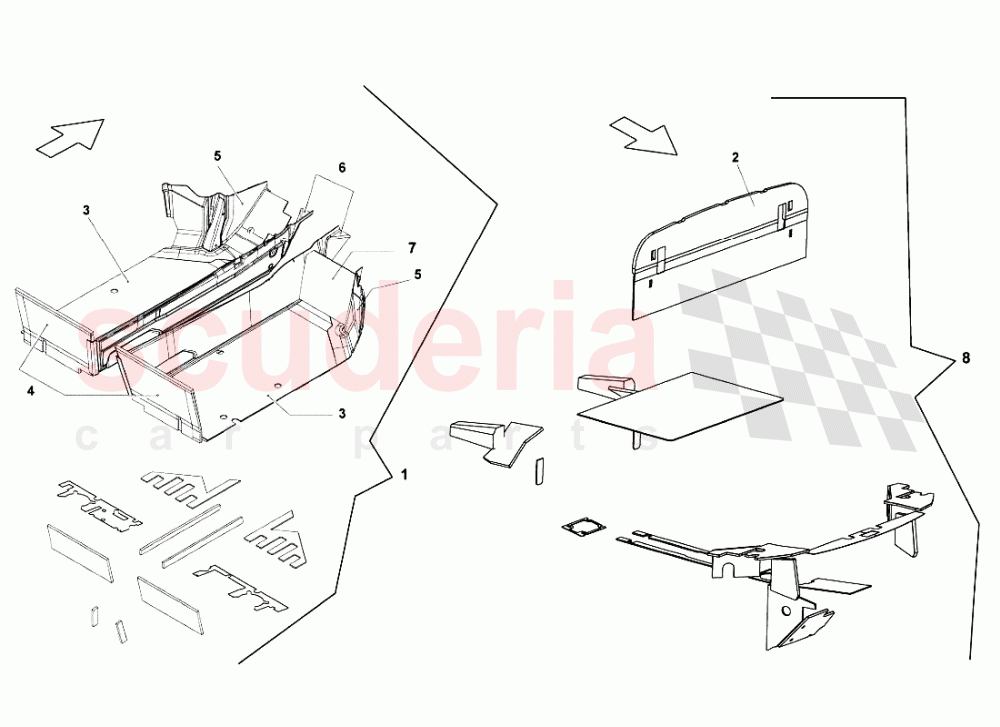

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	401863368R	TEXTILE COVERING KIT (SUPPLY VIN)	401863368R TEXTILE COVERING KIT (SUPPLY VIN)	-	1	Enquire
002	408863648A	REAR COVERING PANEL UNDER REAR WINDOW (STANDARD - FORNIRE VIN)	408863648A REAR COVERING PANEL UNDER REAR WINDOW (STANDARD - FORNIRE VIN)	-	1	Enquire
002	408863648B	REAR COVERING PANEL UNDER REAR WINDOW (WITH LUGGAGE NET - SUPPLY VIN)	408863648B REAR COVERING PANEL UNDER REAR WINDOW (WITH LUGGAGE NET - SUPPLY VIN)	-	1	Enquire
003	401863101A	PLATFORM COVERING PANEL ASSEMBLY (SUPPLY VIN)	401863101A PLATFORM COVERING PANEL ASSEMBLY (SUPPLY VIN)	-	1	Enquire
004	408863781B	UNDER BOTTOM REAR PANEL ASSEMBLY (SUPPLY VIN)	408863781B UNDER BOTTOM REAR PANEL ASSEMBLY (SUPPLY VIN)	-	1	Enquire
005	401864938B	BOTTOM WHEEL ARCH ASSEMBLY (SUPPLY VIN)	401864938B BOTTOM WHEEL ARCH ASSEMBLY (SUPPLY VIN)	-	1	Enquire
006	400864881D	ASSEMBLY SIDE COVERING TUNNEL (SUPPLY VIN)	400864881D ASSEMBLY SIDE COVERING TUNNEL (SUPPLY VIN)	-	1	Enquire
007	401864463	FOOTSTOOL PLATFORM COVERING PANEL (SUPPLY VIN)	401864463 FOOTSTOOL PLATFORM COVERING PANEL (SUPPLY VIN)	-	1	Enquire
008	401864071S	COVERING KIT (STANDARD - FORNIRE VIN)	401864071S COVERING KIT (STANDARD - FORNIRE VIN)	-	1	Enquire
008	401864071T	COVERING KIT (WITH LUGGAGE NET - SUPPLY VIN)	401864071T COVERING KIT (WITH LUGGAGE NET - SUPPLY VIN)	-	1	Enquire
