Center Frame Elements 1 of Lamborghini Lamborghini Gallardo (2008)

View All

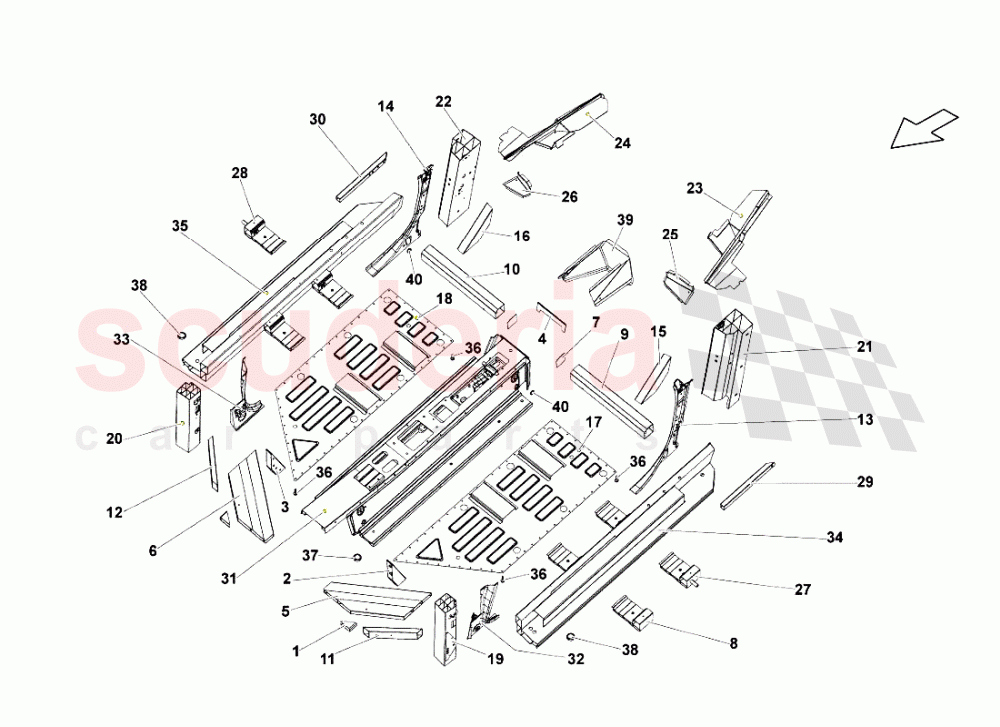

Lamborghini Gallardo (2008) - Center Frame Elements 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400802451	SUPPORT	400802451 SUPPORT	$393.82	2
002	400802725	SUPPORT	400802725 SUPPORT	$1,147.87	1
003	400802726	SUPPORT	400802726 SUPPORT	$1,147.87	1
004	400802853	SHEET	400802853 SHEET	$243.29	1
005	400803033	SIDE MEMBER	400803033 SIDE MEMBER	$325.27	1
006	400803034	SIDE MEMBER	400803034 SIDE MEMBER	$334.68	1
007	400803177	SHEET	400803177 SHEET	$84.42	1
008	400803243	BRACKET	400803243 BRACKET	$304.43	1
009	400803291	CROSS MEMBER	400803291 CROSS MEMBER	$362.89	1
010	400803292	CROSS MEMBER	400803292 CROSS MEMBER	$362.89	1
015	400809971	BRACKET	400809971 BRACKET	$256.72	1
016	400809972	BRACKET	400809972 BRACKET	$256.72	1
017	408803061	BOARD	408803061 BOARD	$987.91	1
018	408803062	BOARD	408803062 BOARD	$987.91	1
019	408809205	A A-PILLAR, INFERIOR	408809205 A A-PILLAR, INFERIOR	$3,319.88	1
020	408809206	A A-PILLAR, INFERIOR	408809206 A A-PILLAR, INFERIOR	$3,319.88	1
021	408809221	B A-PILLAR, OUTSIDE	408809221 B A-PILLAR, OUTSIDE	$610.21	1
022	408809222	B A-PILLAR, OUTSIDE	408809222 B A-PILLAR, OUTSIDE	$610.21	1
023	408810205	SUPPORT	408810205 SUPPORT	$540.33	1
024	408810206	SUPPORT	408810206 SUPPORT	$540.33	1
025	408813567	LH ANGLE PIECE	408813567 LH ANGLE PIECE	$263.44	1
026	408813568	RH ANGLE PIECE	408813568 RH ANGLE PIECE	$263.44	1
027	400803151F	BRACKET	400803151F BRACKET	$1,485.23	1
028	400803152F	BRACKET	400803152F BRACKET	$1,485.23	1
029	400809321A	BRACKET	400809321A BRACKET	$269.48	1
030	400809322A	BRACKET	400809322A BRACKET	$269.48	1
031	408802061F	FLOOR,CENTER	408802061F FLOOR,CENTER	$4,307.77	1
032	408802125A	A A-PILLAR, INSIDE	408802125A A A-PILLAR, INSIDE	$530.91	1
033	408802126A	A A-PILLAR, INSIDE	408802126A A A-PILLAR, INSIDE	$497.32	1
034	408802255F	SIDE MEMBER	408802255F SIDE MEMBER	$4,993.26	1
035	408802256F	SIDE MEMBER	408802256F SIDE MEMBER	$4,993.26	1
036	N90919302	SCREW M5X18	N90919302 SCREW M5X18	$0.77 MSRP: ~~7.27~~ (89.4% off)	54
037	811803583C	PLUG D = 32,5	811803583C PLUG D = 32,5	$0.33	3
038	4E0804297	PLUG D = 30	4E0804297 PLUG D = 30	$2.29 MSRP: ~~7.25~~ (68.4% off)	13
040	N10249701	PLUG D = 18	N10249701 PLUG D = 18	$0.62 MSRP: ~~7.35~~ (91.6% off)	5
