Rear Bumpers of Lamborghini Lamborghini Gallardo (2008)

View All

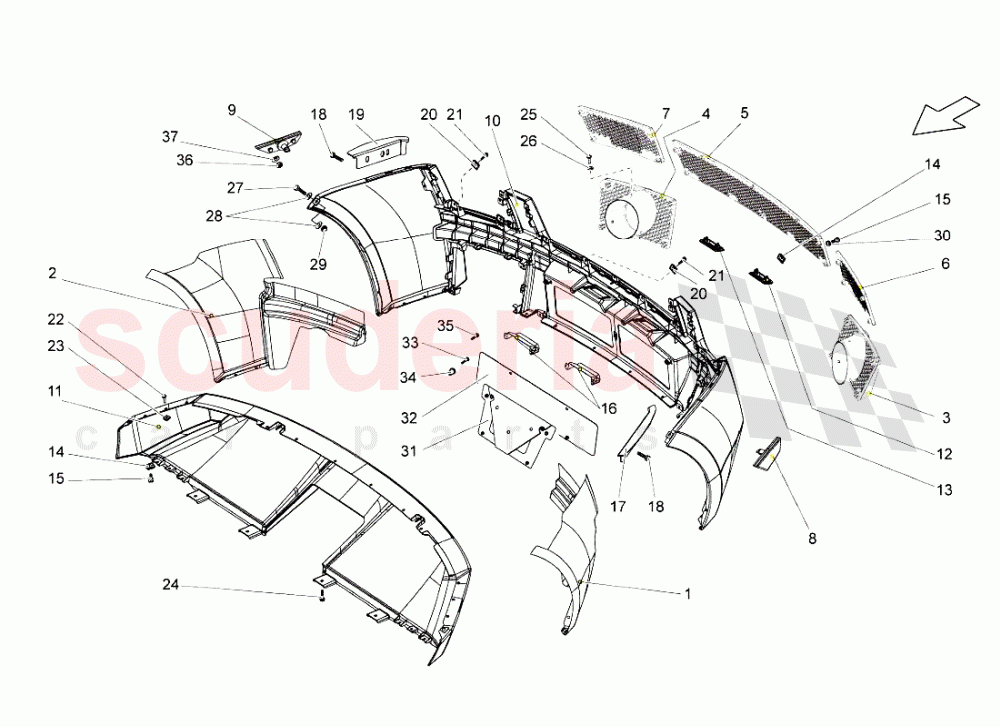

Lamborghini Gallardo (2008) - Rear Bumpers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400807869	LH PROTECTION	400807869 LH PROTECTION	-	1	Enquire
002	400807870	RH PROTECTION	400807870 RH PROTECTION	-	1	Enquire
003	400807675	LEFT REAR GRID	400807675 LEFT REAR GRID	-	1	Enquire
004	400807676	RIGHT REAR GRID	400807676 RIGHT REAR GRID	-	1	Enquire
005	400807684	GRID	400807684 GRID	-	1	Enquire
006	400807697	Left Grid	400807697 Left Grid	-	1	Enquire
007	400807698	Right Grid	400807698 Right Grid	-	1	Enquire
010	400807497B	REAR BUMPER ASSEMBLY	400807497B REAR BUMPER ASSEMBLY (USA model)	-	1	Enquire
010	400807497A	REAR BUMPER ASSEMBLY	400807497A REAR BUMPER ASSEMBLY	-	1	Enquire
011	400807527	COVERING	400807527 COVERING	-	1	Enquire
012	8N0943021A	LH License Plate Lamp	8N0943021A LH License Plate Lamp	-	1	Enquire
013	8N0943022A	RH License Plate Lamp	8N0943022A RH License Plate Lamp	-	1	Enquire
014	N90526602	SPEED NUT	N90526602 SPEED NUT	-	28	Enquire
015	N90659905	SCREW HEX SOCKET M4 X 16	N90659905 SCREW HEX SOCKET M4 X 16	-	28	Enquire
016	400943137	PROTECTION	400943137 PROTECTION	-	2	Enquire
017	400807131A	LH BRACKET	400807131A LH BRACKET	-	1	Enquire
018	N90847903	Screw M6X15	N90847903 Screw M6X15	-	4	Enquire
019	400807132A	RH Bracket	400807132A RH Bracket	-	1	Enquire
020	N0154487	SPEED NUT	N0154487 SPEED NUT	-	14	Enquire
021	N10584201	SCREW	N10584201 SCREW	-	14	Enquire
022	N10584201	SCREW	N10584201 SCREW	-	23	Enquire
023	N0154487	SPEED NUT	N0154487 SPEED NUT	-	23	Enquire
024	N90807405	HEX SOCKET OVAL HEAD COLLARED	N90807405 HEX SOCKET OVAL HEAD COLLARED	-	4	Enquire
025	N10648502	SCREW M5X10	N10648502 SCREW M5X10	-	6	Enquire
026	WHT000698	WASHER	WHT000698 WASHER	-	6	Enquire
027	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	-	2	Enquire
028	N91115501	WASHER	N91115501 WASHER	-	4	Enquire
029	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
030	N10663401	WASHER	N10663401 WASHER	-	22	Enquire
031	400827120	LICENSE PLATE HOLDER	400827120 LICENSE PLATE HOLDER	-	1	Enquire
032	400807287	LICENSE PLATE HOLDER (VALID FOR A MARKET CHINESE)	400807287 LICENSE PLATE HOLDER (VALID FOR A MARKET CHINESE)	-	1	Enquire
033	N10637302	OVAL HEXAGON SOCKET HEAD BOLT	N10637302 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
034	400807995	GROMMET	400807995 GROMMET	-	2	Enquire
035	WHT000757	SCREW	WHT000757 SCREW	-	2	Enquire
