Rear Fender of Lamborghini Lamborghini Gallardo (2008)

View All

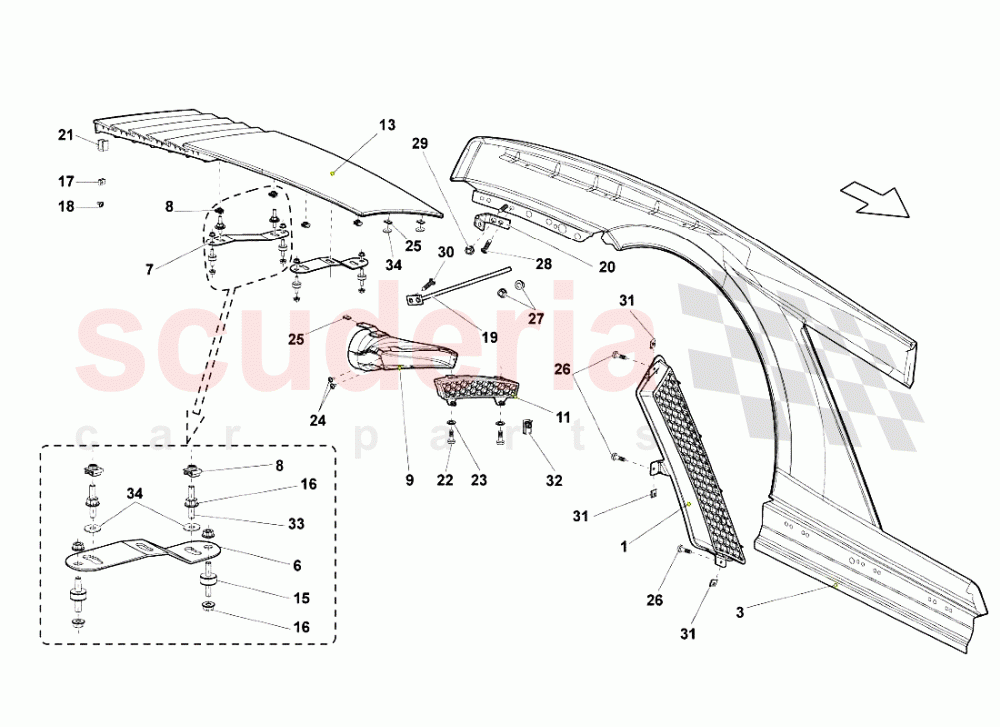

Lamborghini Gallardo (2008) - Rear Fender

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400317116	AIR INTAKE GRID, RH	400317116 AIR INTAKE GRID, RH	-	1	Enquire
001	400317115	AIR INTAKE GRID, LH	400317115 AIR INTAKE GRID, LH	-	1	Enquire
003	408809604A	REAR FENDER, RH	408809604A REAR FENDER, RH	-	1	Enquire
006	400827605	SIDE COVER FASTENER	400827605 SIDE COVER FASTENER	-	2	Enquire
007	400827606	SIDE COVER FASTENER	400827606 SIDE COVER FASTENER	-	2	Enquire
008	N90327506	SPEED NUT	N90327506 SPEED NUT	-	8	Enquire
009	408827924	ENGINE AIR CONVEYOR, RH	408827924 ENGINE AIR CONVEYOR, RH	-	1	Enquire
009	408827923	ENGINE AIR CONVEYOR, LH	408827923 ENGINE AIR CONVEYOR, LH	-	1	Enquire
011	400827968A	GRID, RH	400827968A GRID, RH	-	1	Enquire
011	400827967A	GRID, LH	400827967A GRID, LH	-	1	Enquire
013	400827993B	SIDE COVER, LH	400827993B SIDE COVER, LH	-	1	Enquire
013	400827994B	SIDE COVER, RH	400827994B SIDE COVER, RH	-	1	Enquire
015	400972081B	FLEXIBLE SUPPORT	400972081B FLEXIBLE SUPPORT	-	8	Enquire
016	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	16	Enquire
017	N0154487	SPEED NUT	N0154487 SPEED NUT	-	6	Enquire
018	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	6	Enquire
019	400807707B	FENDER ADJUSTMENT BRACKET, INNER	400807707B FENDER ADJUSTMENT BRACKET, INNER	-	2	Enquire
020	400810239B	FENDER ADJUSTMENT BRACKET, OUTER	400810239B FENDER ADJUSTMENT BRACKET, OUTER	-	2	Enquire
021	400827341	GASKET	400827341 GASKET	-	4	Enquire
022	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	4	Enquire
023	WHT000778	WASHER	WHT000778 WASHER	-	4	Enquire
024	N90881601	RIVET	N90881601 RIVET	-	6	Enquire
025	N0154487	SPEED NUT	N0154487 SPEED NUT	-	6	Enquire
026	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	6	Enquire
027	N10609202	HEXAGON COLLAR NUT	N10609202 HEXAGON COLLAR NUT	-	4	Enquire
028	N10448504	SCREW M6X16	N10448504 SCREW M6X16	-	2	Enquire
029	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
030	N0902424	SCREW M6X18	N0902424 SCREW M6X18	-	2	Enquire
031	N0154487	SPEED NUT	N0154487 SPEED NUT	-	6	Enquire
032	N90779802	CLIP	N90779802 CLIP	-	4	Enquire
033	N10652301	JOURNAL	N10652301 JOURNAL	-	8	Enquire
034	N0116945	WASHER	N0116945 WASHER	-	12	Enquire
