Doors 3 of Lamborghini Lamborghini Gallardo (2008)

View All

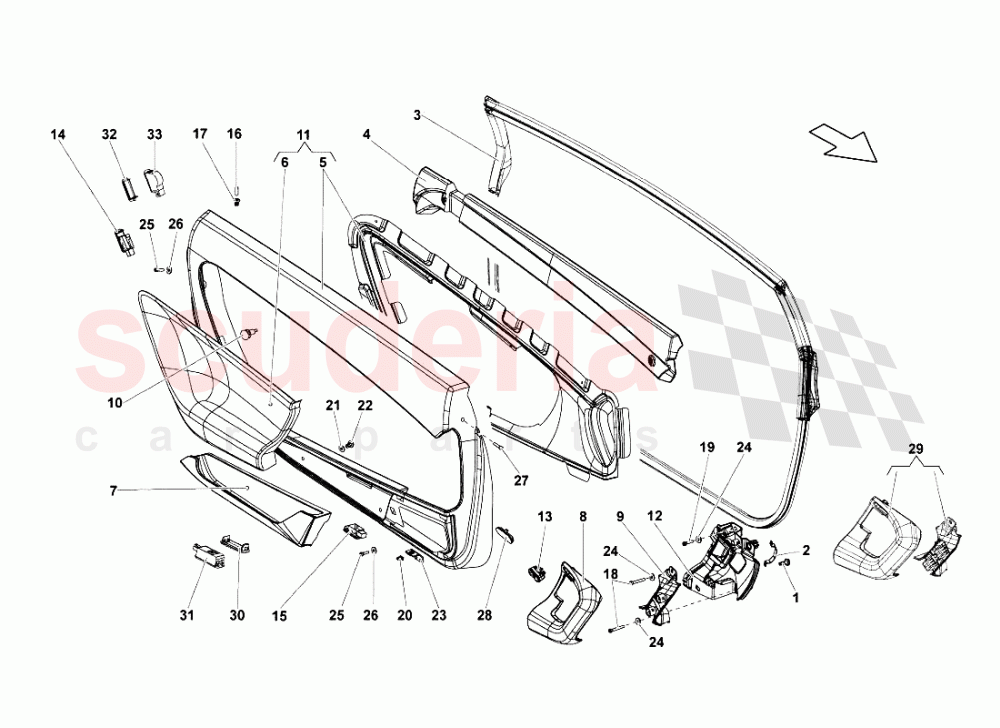

Lamborghini Gallardo (2008) - Doors 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT000767	SCREW	WHT000767 SCREW	-	4	Enquire
002	400035243	TWEETER SUPPORT BRACKET	400035243 TWEETER SUPPORT BRACKET	-	2	Enquire
003	400831708	RIGHT DOOR WEATHERSTRIP, INNER	400831708 RIGHT DOOR WEATHERSTRIP, INNER	-	1	Enquire
003	400831707	LEFT DOOR WEATHERSTRIP, INNER	400831707 LEFT DOOR WEATHERSTRIP, INNER	-	1	Enquire
004	400837968C	DOOR CRASH PAD	400837968C DOOR CRASH PAD	-	1	Enquire
004	400837967C	DOOR CRASH PAD	400837967C DOOR CRASH PAD	-	1	Enquire
007	400867131B	POCKET (SUPPLY VIN)	400867131B POCKET (SUPPLY VIN)	-	1	Enquire
007	400867132C	RIGHT POCKET (PERFORATED LEATHER INTERIOR - SUPPLY VIN)	400867132C RIGHT POCKET (PERFORATED LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
007	400867132B	POCKET (SUPPLY VIN)	400867132B POCKET (SUPPLY VIN)	-	1	Enquire
007	400867131C	LEFT POCKET (PERFORATED LEATHER INTERIOR - SUPPLY VIN)	400867131C LEFT POCKET (PERFORATED LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
008	400867172D	RH HANDLE UPPER PORTION (CARBON INTERIOR)	400867172D RH HANDLE UPPER PORTION (CARBON INTERIOR)	-	1	Enquire
008	400867171D	LH HANDLE UPPER PORTION (CARBON INTERIOR)	400867171D LH HANDLE UPPER PORTION (CARBON INTERIOR)	-	1	Enquire
009	400867195C	LH HANDLE CENTER PORTION (CARBON INTERIOR)	400867195C LH HANDLE CENTER PORTION (CARBON INTERIOR)	-	1	Enquire
009	400867196C	RH HANDLE CENTER PORTION (CARBON INTERIOR)	400867196C RH HANDLE CENTER PORTION (CARBON INTERIOR)	-	1	Enquire
010	400867299	FASTENER LYS FUSION, YELLOW	400867299 FASTENER LYS FUSION, YELLOW	-	4	Enquire
011	401867106G	RH DOOR PANEL ASSEMBLY (SUPPLY VIN)	401867106G RH DOOR PANEL ASSEMBLY (SUPPLY VIN)	-	1	Enquire
011	401867105G	LH DOOR PANEL ASSEMBLY (SUPPLY VIN)	401867105G LH DOOR PANEL ASSEMBLY (SUPPLY VIN)	-	1	Enquire
012	400868099CSK1	INNER HANDLE WITH GRID LH (BLACK LEATHER UPHOLSTERY)	400868099CSK1 INNER HANDLE WITH GRID LH (BLACK LEATHER UPHOLSTERY)	-	1	Enquire
012	400868099J	INNER HANDLE WITH GRID LH	400868099J INNER HANDLE WITH GRID LH	-	1	Enquire
012	400868100C	INNER HANDLE WITH GRID RH (LEATHER UPHOLSTERY - SUPPLY VIN)	400868100C INNER HANDLE WITH GRID RH (LEATHER UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
012	400868100CSK1	INNER HANDLE WITH GRID RH (BLACK LEATHER UPHOLSTERY)	400868100CSK1 INNER HANDLE WITH GRID RH (BLACK LEATHER UPHOLSTERY)	-	1	Enquire
012	400868100F	INNER HANDLE WITH GRID RH (DECORATIVE INSERTS - SUPPLY VIN)	400868100F INNER HANDLE WITH GRID RH (DECORATIVE INSERTS - SUPPLY VIN)	-	1	Enquire
012	400868100N	INNER HANDLE WITH GRID RH	400868100N INNER HANDLE WITH GRID RH	-	1	Enquire
012	400868099C	INNER HANDLE WITH GRID LH (LEATHER UPHOLSTERY - SUPPLY VIN)	400868099C INNER HANDLE WITH GRID LH (LEATHER UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
012	400868099F	INNER HANDLE WITH GRID LH (DECORATIVE INSERTS - SUPPLY VIN)	400868099F INNER HANDLE WITH GRID LH (DECORATIVE INSERTS - SUPPLY VIN)	-	1	Enquire
012	400868099D	INNER HANDLE WITH GRID LH (CARBON INTERIOR)	400868099D INNER HANDLE WITH GRID LH (CARBON INTERIOR)	-	1	Enquire
012	400868100D	INNER HANDLE WITH GRID RH (CARBON INTERIOR)	400868100D INNER HANDLE WITH GRID RH (CARBON INTERIOR)	-	1	Enquire
013	400962107B	DOOR LOCK/UNLOCK SWITCH (WITHOUT SERIGRAPHY)	400962107B DOOR LOCK/UNLOCK SWITCH (WITHOUT SERIGRAPHY)	-	2	Enquire
013	400962107A	DOOR LOCK/UNLOCK SWITCH (WITH SERIGRAPHY)	400962107A DOOR LOCK/UNLOCK SWITCH (WITH SERIGRAPHY)	-	2	Enquire
014	6Y0947411	DOOR WARNING LIGHT	6Y0947411 DOOR WARNING LIGHT	-	2	Enquire
015	4B0947415A	LUGGAGE COMPARTMENT LAMP	4B0947415A LUGGAGE COMPARTMENT LAMP	-	2	Enquire
016	8N0919238	WARNING LAMP	8N0919238 WARNING LAMP	-	1	Enquire
017	8Z0919424A4PK	SLEEVE DWA	8Z0919424A4PK SLEEVE DWA	-	2	Enquire
018	N10613801	SCREW M 5X55.0	N10613801 SCREW M 5X55.0	-	4	Enquire
019	N10544302	SCREW M5X25	N10544302 SCREW M5X25	-	2	Enquire
020	N90526602	SPEED NUT	N90526602 SPEED NUT	-	2	Enquire
021	WHT002961	WASHER	WHT002961 WASHER	-	4	Enquire
022	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	N10586401 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
023	400867159A	LH BRACKET	400867159A LH BRACKET	-	1	Enquire
023	400867160A	RH BRACKET	400867160A RH BRACKET	-	1	Enquire
024	N01154012	WASHER	N01154012 WASHER	-	6	Enquire
025	WHT003111	SCREW M5X16	WHT003111 SCREW M5X16	-	2	Enquire
026	WHT000778	WASHER	WHT000778 WASHER	-	2	Enquire
027	N10621601	HEX SOCKET OVAL HEAD COLLARED	N10621601 HEX SOCKET OVAL HEAD COLLARED	-	2	Enquire
029	R1400552	RH PULL HANDLE (LEATHER UPHOLSTERY - SUPPLY VIN)	R1400552 RH PULL HANDLE (LEATHER UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
029	R1400550	RH PULL HANDLE (STANDARD - WARNING! ALSO ORDER 0R1400549 )	R1400550 RH PULL HANDLE (STANDARD - WARNING! ALSO ORDER 0R1400549 )	-	1	Enquire
029	R1400552SK1	RH PULL HANDLE (BLACK LEATHER UPHOLSTERY)	R1400552SK1 RH PULL HANDLE (BLACK LEATHER UPHOLSTERY)	-	1	Enquire
029	R1400551SK1	LH PULL HANDLE (BLACK LEATHER UPHOLSTERY)	R1400551SK1 LH PULL HANDLE (BLACK LEATHER UPHOLSTERY)	-	1	Enquire
029	R1400549	LH PULL HANDLE (STANDARD - WARNING! ALSO ORDER 0R1400550 )	R1400549 LH PULL HANDLE (STANDARD - WARNING! ALSO ORDER 0R1400550 )	-	1	Enquire
029	R1400551	LH PULL HANDLE (LEATHER UPHOLSTERY - SUPPLY VIN)	R1400551 LH PULL HANDLE (LEATHER UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
