Lamborghini Diablo VT (1993-1998) - Climate Control 2

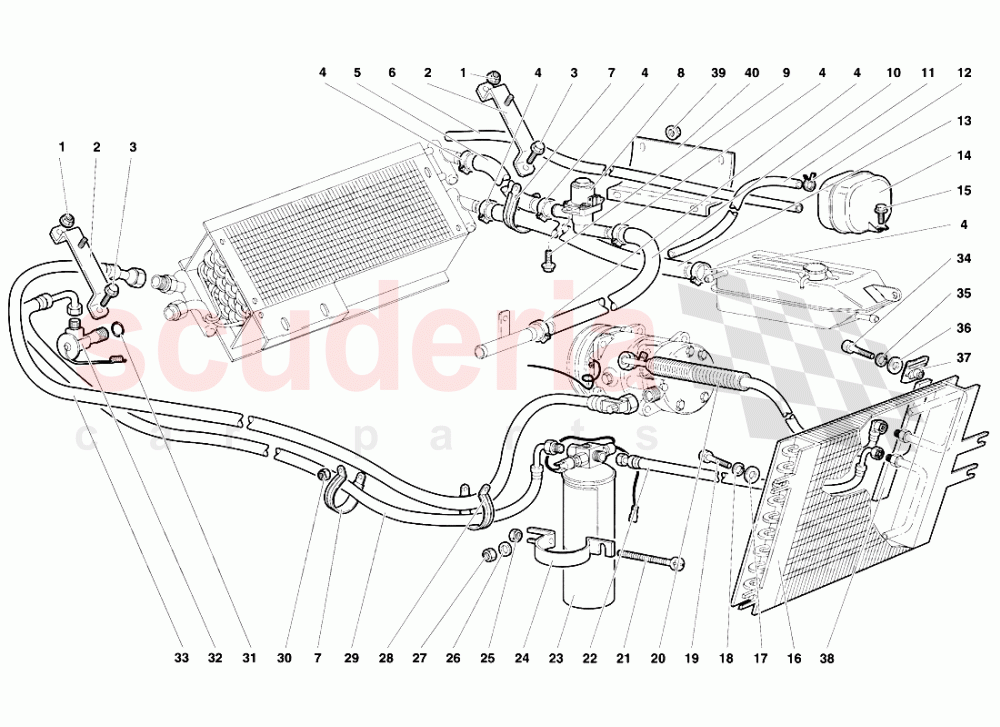

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	$2.04	2
002	4131338	STRAP	4131338 STRAP FASCETTA	$41.45	2
003	N90319404	SCREW	N90319404 SCREW VITE	$1.89	2
004	8832003	CLAMP	8832003 CLAMP FASCETTA	$44.10	6
005	4734346	PIPE	4734346 PIPE TUBO	$201.93	1
006	9414600	PIPE	9414600 PIPE TUBO	$38.84	1
007	8834003	CLAMP	8834003 CLAMP FASCETTA	$9.67	7
008	6031658	ELECTRO-VALVE	6031658 ELECTRO-VALVE ELETTROVALVOLA	$203.38	1
009	N90319404	SCREW	N90319404 SCREW VITE	$1.89	2
010	4734347	PIPE	4734347 PIPE TUBO	$197.59	1
011	6231411	PIPE	6231411 PIPE TUBO	$12.42 MSRP: ~~12.60~~ (1.4% off)	1
012	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.46	2
013	1733231	PIPE	1733231 PIPE TUBO	$211.35	1
014	1323406	VACUUM TANK	1323406 VACUUM TANK SERBATOIO A DEPRESSIONE	$45.48	1
015	N90319404	SCREW	N90319404 SCREW VITE	$1.89	2
016	4531594	A/C CONDENSER	4531594 A/C CONDENSER CONDENSATORE CONDIZIONATORE	$387.94	1
017	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	4
018	WHT002963	WASHER	WHT002963 WASHER RONDELLA	$0.13 MSRP: ~~7.38~~ (98.2% off)	4
019	8700614	SCREW	8700614 SCREW VITE	$0.27	4
020	4530164	PIPE	4530164 PIPE TUBO	$778.75	1
021	8700542	SCREW	8700542 SCREW VITE	$0.68 MSRP: ~~7.26~~ (90.6% off)	1
022	4530165	PIPE	4530165 PIPE TUBO	$243.91	1
023	4535411	FILTER	4535411 FILTER FILTRO DEIDRATORE	$380.71	1
024	4531395	STRAP	4531395 STRAP FASCETTA	$8.96 MSRP: ~~9.30~~ (3.7% off)	1
025	8200580	NUT	8200580 NUT DADO	-	1	Enquire
026	N0122094	WASHER	N0122094 WASHER RONDELLA	$1.47 MSRP: ~~7.15~~ (79.4% off)	2
027	8200804	NUT M8	8200804 NUT M8 DADO	$1.16 MSRP: ~~7.28~~ (84.1% off)	2
028	8834401	CLAMP	8834401 CLAMP FASCETTA	$12.99 MSRP: ~~13.50~~ (3.8% off)	1
029	4530166	PIPE	4530166 PIPE TUBO	$408.21	1
030	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	$2.04	7
031	8601103	SEAL	8601103 SEAL ANELLOTENUTA	$10.55	1
032	4530261	VALVE	4530261 VALVE VALVOLA Dl ESPANSIONE	$321.35	1
033	4530167	PIPE	4530167 PIPE TUBO	$379.65	1
034	8700614	SCREW	8700614 SCREW VITE	$0.27	2
035	WHT002963	WASHER	WHT002963 WASHER RONDELLA	$0.13 MSRP: ~~7.38~~ (98.2% off)	2
036	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	2
037	N90327506	SPEED NUT	N90327506 SPEED NUT MOLLETTA	$0.94	2
038	4531592	GASKET	4531592 GASKET GUARNIZIONE	$9.32 MSRP: ~~9.45~~ (1.4% off)	2
039	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	$0.21	4
040	4133297	SHIELD	4133297 SHIELD PROTEZIONE	-	1	Enquire
