Water Pump of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

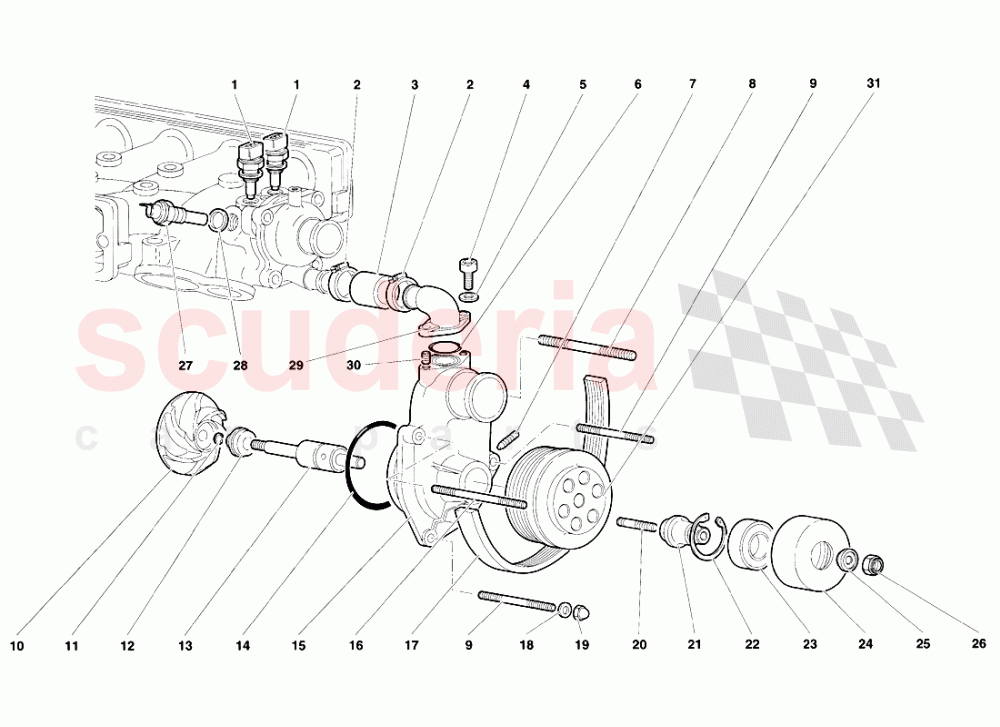

Lamborghini Diablo VT (1993-1998) - Water Pump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	17002472	Water pump assy (power steering version)	17002472 Water pump assy (power steering version)	-	1	Enquire
001	7L919501A	Water Temperature Sensor	7L919501A Water Temperature Sensor SENSORE TEMPERATURA ACQUA	-	2	Enquire
002	8832604	STRAP	8832604 STRAP FASCETTA	-	2	Enquire
003	1732811	PIPE	1732811 PIPE TUBO	-	1	Enquire
004	8700617	SCREW	8700617 SCREW VITE	-	2	Enquire
005	8410602	WASHER	8410602 WASHER RONDELLA	-	2	Enquire
006	WHT003062	SEAL RING	WHT003062 SEAL RING ANELLO TENUTA	-	1	Enquire
007	8700650	SCREW	8700650 SCREW VITE	-	1	Enquire
008	8301034	STUD	8301034 STUD PRIGIONIERO	-	1	Enquire
009	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	-	2	Enquire
010	1733982	IMPELLER	1733982 IMPELLER GIRANTE	-	1	Enquire
011	1734244	SHIM	1734244 SHIM SPESSORE Dl REGISTRO 2.0 MM	-	1	Enquire
011	1734242	SHIM	1734242 SHIM SPESSORE Dl REGISTRO 1.6 MM	-	1	Enquire
011	1734241	SHIM	1734241 SHIM SPESSORE Dl REGISTRO 1.4 MM	-	1	Enquire
011	1734240	SHIM	1734240 SHIM SPESSORE Dl REGISTRO 1.2 MM	-	1	Enquire
011	1734239	SHIM	1734239 SHIM SPESSORE Dl REGISTRO 1.0 MM	-	1	Enquire
011	1734243	SHIM	1734243 SHIM SPESSORE Dl REGISTRO 1.8 MM	-	1	Enquire
011	1734248	SHIM	1734248 SHIM SPESSORE Dl REGISTRO 2.8 MM	-	1	Enquire
011	1734245	SHIM	1734245 SHIM SPESSORE Dl REGISTRO 2.2 MM	-	1	Enquire
011	1734247	SHIM	1734247 SHIM SPESSORE Dl REGISTRO 2.6 MM	-	1	Enquire
011	1734246	SHIM	1734246 SHIM SPESSORE Dl REGISTRO 2.4 MM	-	1	Enquire
012	1726539	SEAL	1726539 SEAL TENUTA FRONTALE	-	1	Enquire
013	1727739	SMALL SHAFT	1727739 SMALL SHAFT ALBERINO	-	1	Enquire
014	WHT003018	SEAL RING	WHT003018 SEAL RING ANELLO TENUTA	-	1	Enquire
015	1732800	WATER PUMP CASE	1732800 WATER PUMP CASE CORPO POMPA ACQUA	-	1	Enquire
016	8300833	STUD BOLT	8300833 STUD BOLT PRIGIONIERO	-	1	Enquire
017	1736517	TRANS BELT	1736517 TRANS BELT CINGHIA POMPA ACQUA E ALTERNAT.	-	1	Enquire
018	N0122094	WASHER	N0122094 WASHER RONDELLA	-	3	Enquire
019	8200809	NUT	8200809 NUT DADO	-	3	Enquire
020	8301008	STUD	8301008 STUD PRIGIONIERO	-	1	Enquire
021	1232211	BUSHING	1232211 BUSHING BUSSOLA	-	1	Enquire
022	8575201	RETAINING RING	8575201 RETAINING RING ANELLO RITEGNO	-	1	Enquire
023	8502501	BEARING	8502501 BEARING CUSCINETTO	-	1	Enquire
024	1228675	BELT STRETCHER	1228675 BELT STRETCHER TENDICINGHIA	-	1	Enquire
025	1626949	WASHER	1626949 WASHER RONDELLA	-	1	Enquire
026	8201008	NUT	8201008 NUT DADO	-	1	Enquire
027	1724221	THERMOCOUPLE	1724221 THERMOCOUPLE TERMOCOPPIA	-	1	Enquire
028	8401408	WASHER	8401408 WASHER RONDELLA	-	1	Enquire
029	1732803	CONNECTION	1732803 CONNECTION RACCORDO	-	1	Enquire
030	8840601	HELI-COIL	8840601 HELI-COIL	-	2	Enquire
031	1733986	PULLEY	1733986 PULLEY PULEGGIA	-	1	Enquire
